030798-04 - Briggs & Stratton 6,250 Watt Portable Generator Wheel Kit Parts Diagram

6,250 Watt Portable Generator

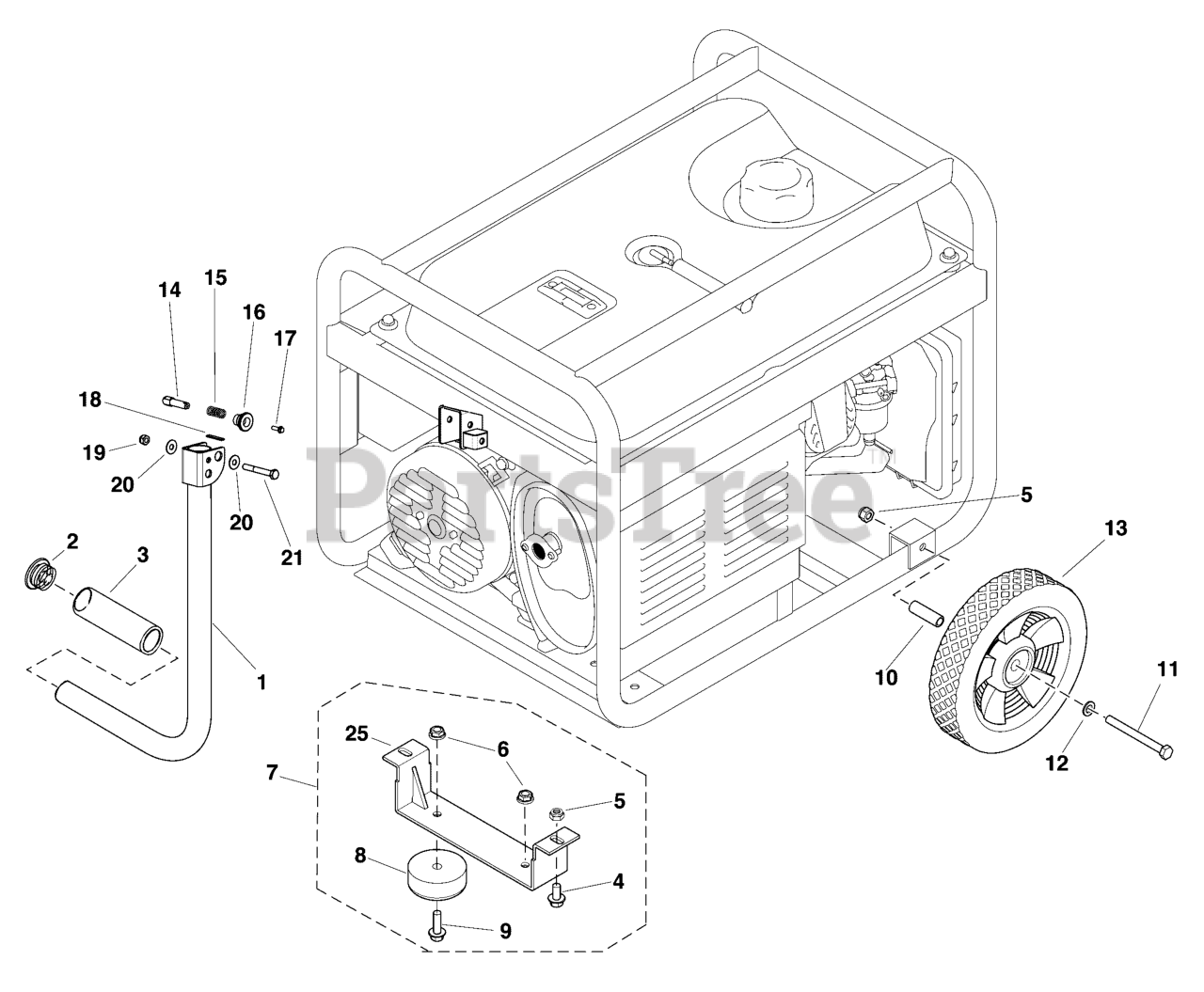

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 84007312

HANDLE ASSY

$

$

Currently unavailable

2

Briggs & Stratton 84007314

PLUG, Handle

$

$

Currently unavailable

3

Briggs & Stratton 84007313

GRIP, Handle

$

$

Currently unavailable

4

Briggs & Stratton 315097

BOLT-M8 1.25 x 16

$

$

Currently unavailable

5

Briggs & Stratton 84001059

NUT

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84007343

KIT, SUPPORT LEG and Hardware

Note: (Includes items 4, 5, 6, 8, 9 and 25)

$

$

Currently unavailable

8

Briggs & Stratton 705400

MOUNT-RUBBER

$9.49

$

In Stock, only 2 left!

0

9

BOLT, Flange, M8 x 1.25 x 16

Note: (Included in Item 7)

$

$

Not available

10

Briggs & Stratton 84001083

SHAFT-SLEEVE

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 705781

AXLE-BOLT

$3.99

$

Usually ships in 2-12 days

0

12

Washer, M8 Flat

$

$

Not available

13

Briggs & Stratton 705935

WHEEL

$37.99

$

In Stock, Qty 6

0

14

Briggs & Stratton 319454GS

PIN

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 319452GS

SPRING

$3.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 319453GS

KNOB

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84001685

BOLT

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84007344

PAD, Rubber Handle

$

$

Currently unavailable

19

Briggs & Stratton 49820GS

NUT, Nylok, M8 - 1.25

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002245

WASHER

$2.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 51730GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84007311

LEG, Support

$

$

Currently unavailable
