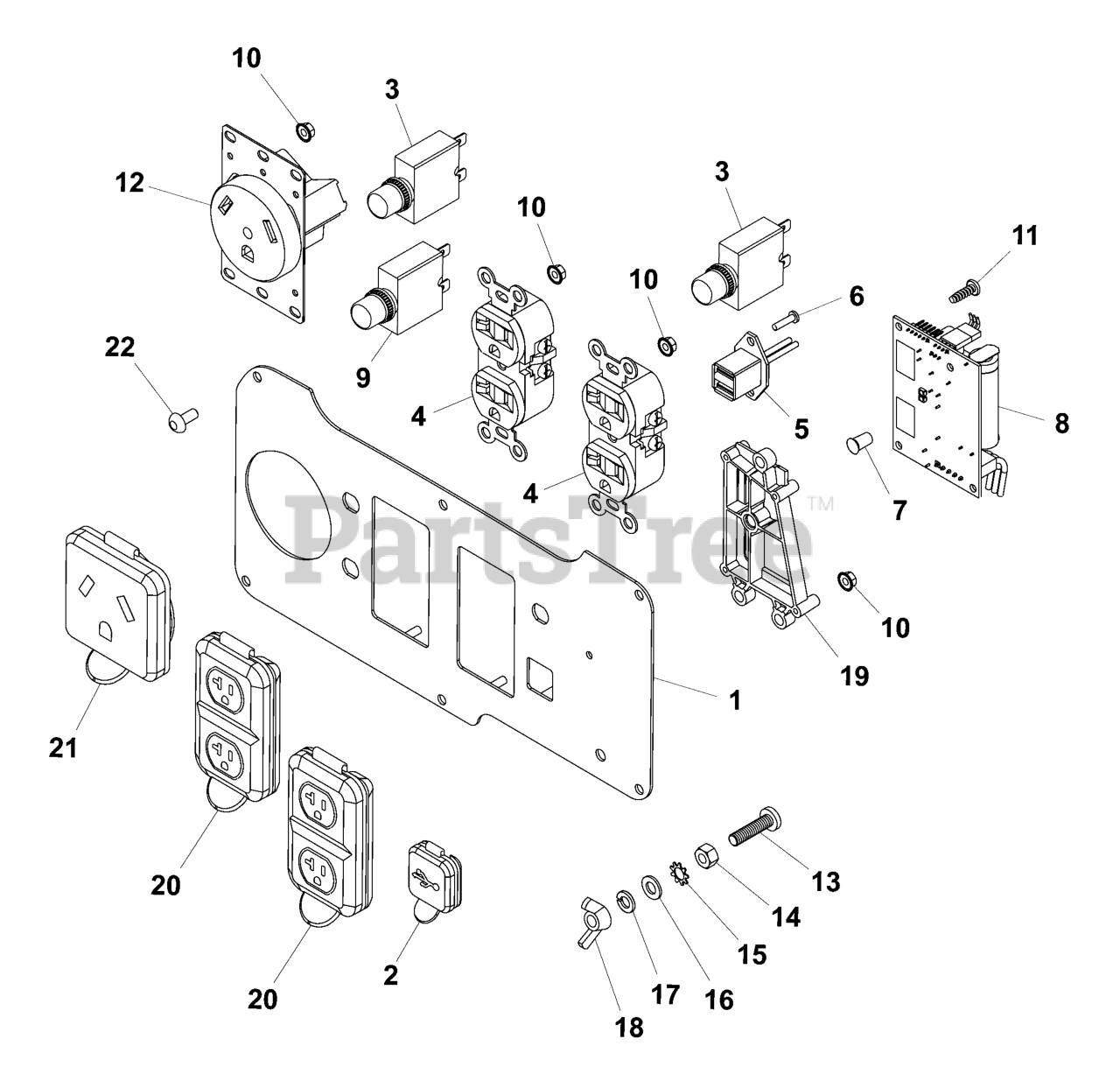

030814-00 - Briggs & Stratton 4,500 Watt Portable Generator, Inverter, CARB Control Panel Parts Diagram

4,500 Watt Portable Generator, Inverter, CARB

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 84005458

PANEL-CONTROL

$43.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84002981

COVER-USB

$4.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84005455

BREAKER-CIRCUIT, 20A

$16.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$26.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 84003013

PORT-USB

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84004007

MODULE-CO

$135.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84005457

BREAKER-CIRCUIT, 30A

$13.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 795016

NUT

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84001081

SCREW

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 318065GS

OUTLET-RV

$

$

Not available

13

Briggs & Stratton 84003035

SCREW

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84003038

NUT

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84003039

WASHER-SERRATED

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84003037

WASHER-FLAT

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84003036

WASHER-LOCK

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84002979

WING NUT

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84002980

BRACKET-CO

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002978

COVER-OUTLET

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84002977

COVER-OUTLET

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84003033

SCREW

$2.99

$

Usually ships in 2-12 days

0
