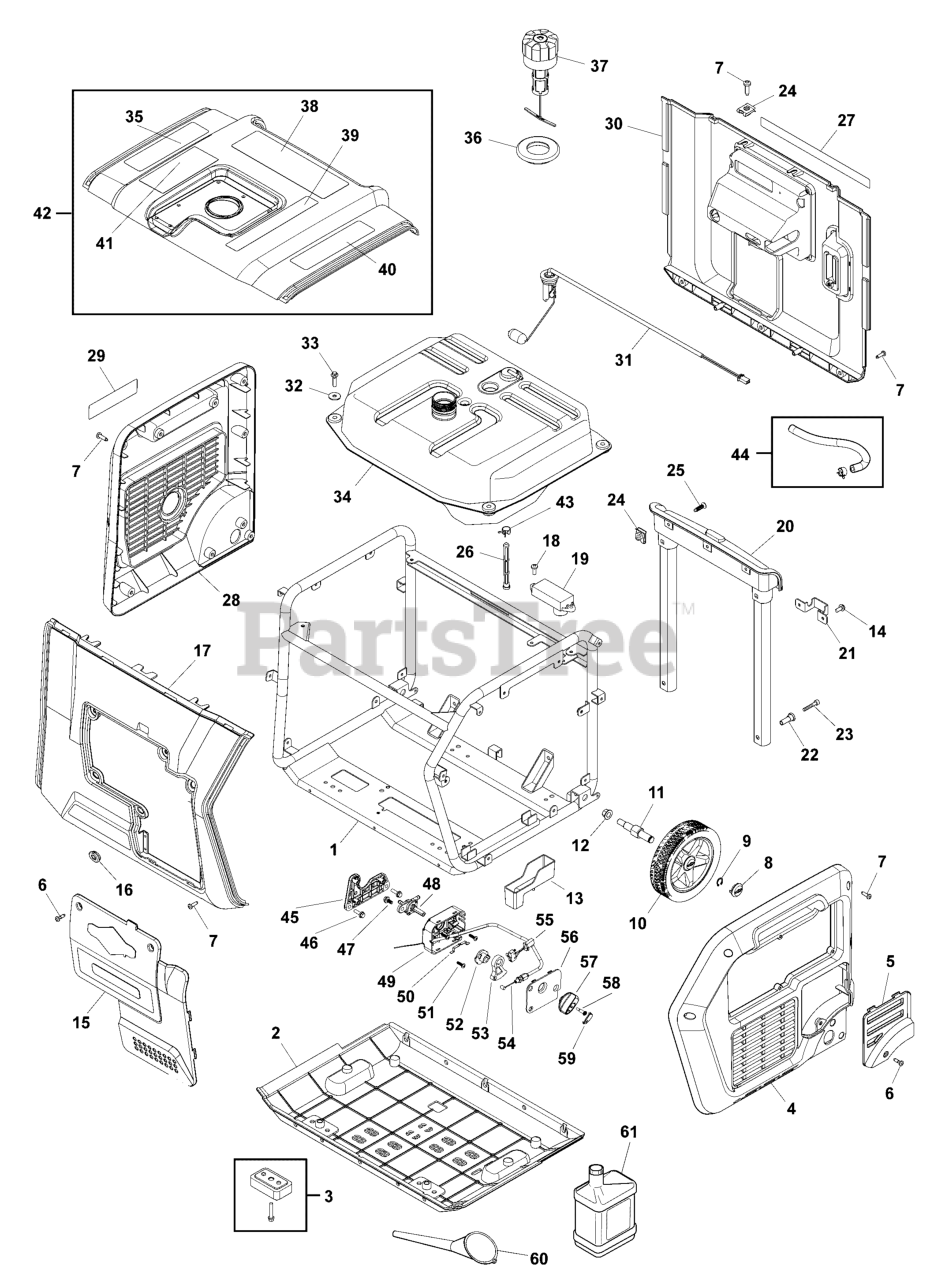

030836-00 - Briggs & Stratton 4,500 Watt Portable Generator, Inverter, CARB Main Unit P1 Parts Diagram

4,500 Watt Portable Generator, Inverter, CARB

Main Unit P1 Parts Diagram

  • Title

1

Briggs & Stratton 84005416

CRADLE

$196.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84002938

PANEL-BOTTOM

$103.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84002939

FOOT-RUBBER

$9.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 84002911

PANEL-SIDE

$108.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84002974

PANEL-BATTERY

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84002976

SCREW

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84002910

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706065

HUBCAP

$5.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 771593

E-RING

$3.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 319940GS

WHEEL

$53.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 84002909

AXLE

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 709938

NUT-M10 FLANGE LOCK

$7.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002954

TRAP-DRAIN

$8.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706865

SCREW, M6 x 18
(Superseded to 807084)

$3.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 84002912

PANEL-ACCESS

$60.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84002917

GROMMET

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84002916

PANEL-BACK

$108.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91526GS

MACHINE SCREW, Phllps Pn Hd

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84002951

CONTROLLER-IGNITION

$45.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002960

ASSY-HANDLE

$239.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84002968

BRACKET

$6.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84002969

BUSHING

$6.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 191364GS

SCREW

$

$

Currently unavailable

24

Briggs & Stratton 84002982

NUT-SPECIAL

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84002961

SCREW

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 707168

FILTER-FUEL TANK

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84007119

DECAL

$

$

Currently unavailable

28

Briggs & Stratton 84002920

PANEL-MUFFLER

Note: (Includes Item 29)

$130.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84002468

DECAL

$9.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84007118

PANEL-FRONT

Note: (Includes Item 27)

$

$

Currently unavailable

31

Briggs & Stratton 84002946

GAUGE-FUEL

$32.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 316506GS

WASHER-FLAT

$

$

Currently unavailable

33

Briggs & Stratton 706866

SCREW
(Superseded to 590644)

$4.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 84002947

TANK-FUEL

Note: (Includes Item 26 & 34)

$253.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84005448

DECAL

$

$

Currently unavailable

36

Briggs & Stratton 84002943

GROMMET-FUEL

$7.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84006625

CAP-FUEL

$21.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 84001051

DECAL

$13.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 84006632

DECAL

$

$

Currently unavailable

40

Briggs & Stratton 84006631

DECAL

$

$

Currently unavailable

41

Briggs & Stratton 84001068

DECAL

$10.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 84006610

PANEL-TOP, FUEL TRAY Assembly

$

$

Currently unavailable

43

Briggs & Stratton 84002949

CLAMP

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84005452

HOSE-VAPOR

$8.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 84006612

PLATE, Mounting, Fuel Switch

$

$

Currently unavailable

46

Briggs & Stratton 84006614

BOLT, Hex Flangebolt, M6 x 16

$

$

Currently unavailable

47

Briggs & Stratton 84006613

BOLT, Hex Flangebolt, M5 x 12

$

$

Currently unavailable

48

Briggs & Stratton 84002959

VALVE-FUEL

$13.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 84004882

BODY, Fuel Selector

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 84004881

SPRING

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 84006615

SCREW, Self Tapping

$

$

Currently unavailable

52

Briggs & Stratton 84004880

WHEEL-FUEL SELECTOR

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84004883

ROCKER ARM-FUEL SELECTOR

$2.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 84006624

ASSEMBLY, Choke Cable

$

$

Currently unavailable

55

Briggs & Stratton 84004879

SWITCH

$6.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 84004878

COVER

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 84002925

KNOB-FUEL VALVE

$3.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 84002926

SCREW

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 311377GS

COVER, Knob

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 706357

FUNNEL

$34.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0
