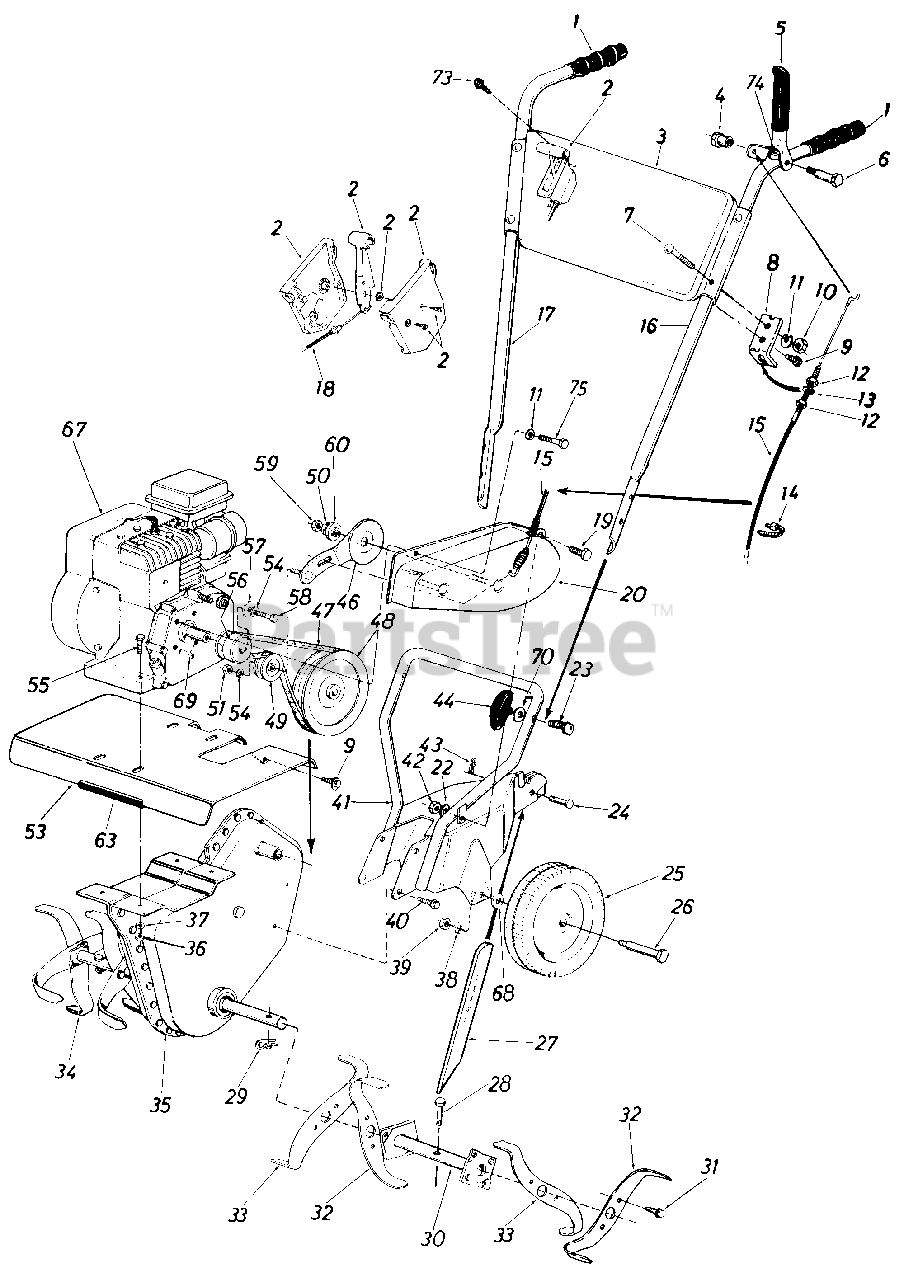

031 (212-031-100) - Cub Cadet Front-Tine Tiller (1992) Tiller Parts Diagram

Front-Tine Tiller

Tiller Parts Diagram

  • Title

1

Cub Cadet 720-0204

Grip

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 831-0796A

Throttle Control Box Ass'y.

$20.99

$

In Stock, Qty 14

0

3

Cub Cadet 784-0036A

Handle Panel

$

$

Not available

4

Cub Cadet 738-0561

Shoulder Nut
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

5

Cub Cadet 784-0007A

Clutch Grip Ass'y.

$

$

Not available

6

Cub Cadet 738-0572

Shoulder Bolt 3/8" x 1.16"

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet 15093C

Cable Support Bracket

$

$

Not available

9

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

15

Cub Cadet 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$39.99

$

In Stock, only 4 left!

0

16

Cub Cadet 749-0631

Upper Handle--L.H.

Variations

Cub Cadet 749-0631-0637

UPPER HANDLE (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 749-0630

Upper Handle--R.H.

Variations

Cub Cadet 749-0630-0637

UPPER HANDLE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 746-0636

Throttle Control Wire
(Superseded to 946-0634)

$10.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 686-0021

Belt Cover Ass'y.

Variations

Cub Cadet 686-0021-0498

BELT COVER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 686-0021-0638

BELT COVER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

Cub Cadet 736-0329

L--Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 710-0405

Curved Hd. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 734-0893

Wheel Ass'y. Comp

$

$

Not available

Cub Cadet 741-0262

Wheel Bearings

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-0126

Shoulder Bolt
(Superseded to 738-0213)

$7.49

$

In Stock, Qty 5

0

27

Cub Cadet 04764

Depth Bar

$

$

Not available

28

Cub Cadet 711-0702

Clevis Pin .31" Dia. x 1.5"

$

$

Not available

29

Cub Cadet 714-0149B

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 04918

Tine Adapter Ass'y.
(Superseded to 04918-0637)

Variations

Cub Cadet 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 04923

Tine Blade--L.H.
(Superseded to 04923-0637)

Variations

Cub Cadet 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 04922

Tine Blade--R.H.

$

$

Not available

34

Cub Cadet 04921

Tine Ass'y. Comp.

$

$

Not available

35

Cub Cadet 04924A

Chain Case Ass'y. Comp.

$

$

Currently unavailable

36

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$3.99

$

In Stock, Qty 13

0

39

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

40

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 04762

Support Brkt. Ass'y.

Variations

Cub Cadet 04762-0637

BRACKET ASSEMBLY-SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 714-0104

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

46

Cub Cadet 784-0016

Idler Arm Ass'y.

$

$

Not available

47

Cub Cadet 754-0216

Belt
(Superseded to 954-0216)

$30.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 756-0287

Chain Case Pulley 5 1/2" x 1/2"

$

$

Not available

49

Cub Cadet 756-0199

Fl-Idler 2"

$23.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0116

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

53

Cub Cadet 04765

Tine Shield

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

56

Cub Cadet 756-0286

Engine Pulley 3/8" V

$

$

Not available

57

Cub Cadet 736-0258

Fl-Wash. .385" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

59

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0289

Shld. Spacer .50" Dia.
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

63

Cub Cadet 731-0511

Trim Strip--4 1/2"

$3.49

$

Usually ships in 3-6 days

0

?65

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

67

Engine

$

$

Not available

68

Cub Cadet 736-0219

Bell-Wash.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

69

Cub Cadet 714-0122

Square Key 3/16" x 3/4" Lg.

$3.49

$

In Stock, Qty 17

0

70

Cub Cadet 736-0242

Bell-Wash.

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0779A

Self-Tap Screw #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

74

Cub Cadet 731-0511

Trim Strip--3/4" Lg.

$3.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-0107

Hex Bolt 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0
