031 (212-031-100) - Cub Cadet Front-Tine Tiller Engine (1992) B&S 3 HP Carburetor Ass'y Parts Diagram

Front-Tine Tiller Engine

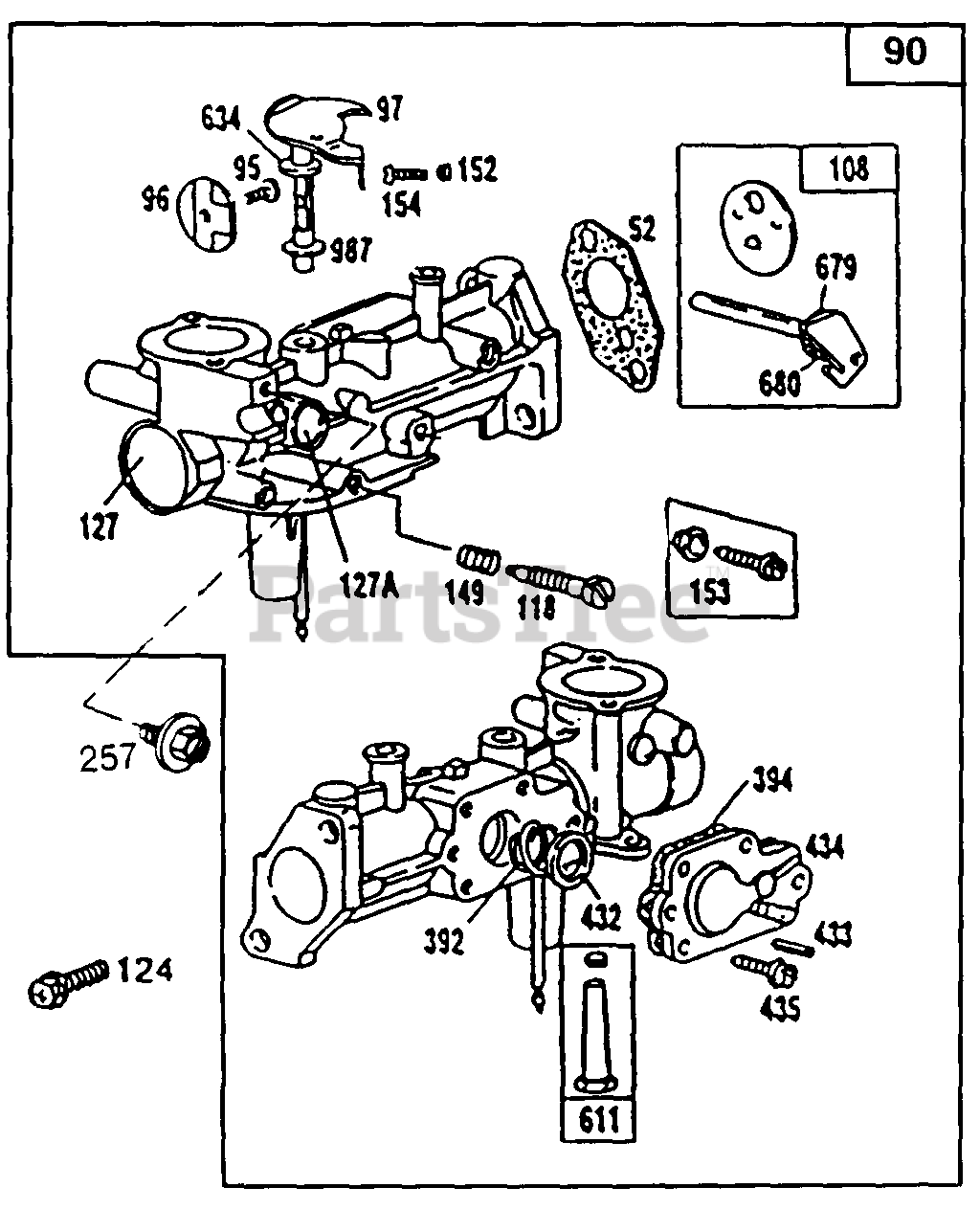

B&S 3 HP Carburetor Ass'y Parts Diagram

  • Title

52

Cub Cadet BS-271936

Gasket--Intake Elbow Mounting (2 used)
(Superseded to BS-273113S)

$4.49

$

In Stock, Qty 10

0

90

Cub Cadet BS-492647

Carburetor Assembly

$

$

Not available

95

Cub Cadet BS-93499

Screw--Throttle Valve Mounting
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

96

Cub Cadet BS-223793

Valve--Throttle

$

$

Currently unavailable

97

Cub Cadet BS-490371

Shaft and Lever--Throttle

$

$

Currently unavailable

108

Cub Cadet BS-490495

Valve Group--Choke

$

$

Currently unavailable

118

Cub Cadet BS-231533

Valve--Needle

$

$

Not available

124

Cub Cadet BS-94616

Screw--Hex. Hd.
(Superseded to BS-690953)

$5.99

$

In Stock, Qty 19

0

127

Cub Cadet BS-220352

Plug--Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug--Welch

$

$

Not available

149

Cub Cadet BS-26336

Spring--Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring Throttle Adjustment

$

$

Currently unavailable

153

Cub Cadet BS-490501

Screw--Carburetor Cam and Lever

$4.99

$

Usually ships in 2-12 days

0

154

Cub Cadet BS-93527

Screw--Rd. Hd.

$

$

Not available

257

Cub Cadet BS-93543

Screw--Hex. Hd.

$

$

Not available

392

Cub Cadet BS-262328

Spring--Fuel Pump Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, Qty 19

0

394

Cub Cadet BS-270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap--Spring
(Superseded to BS-690766)

$4.99

$

In Stock, Qty 20+

0

433

Cub Cadet BS-93265

Pin--Diaphragm

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover--Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, Qty 7

0

435

Cub Cadet BS-93141

Screw--Diaphragm Cover

$

$

Not available

611

Cub Cadet BS-297219

Pipe--Fuel

$

$

Not available

634

Cub Cadet BS-271853

Washer--Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!

0

679

Cub Cadet BS-270382

Washer--Choke Shaft (Foam)
(Superseded to BS-691869)

$3.99

$

In Stock, only 4 left!

0

680

Cub Cadet BS-221839

Washer--Choke Shaft

$

$

Not available

987

Cub Cadet BS-398970

Seal--Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!

0
