031 (212-031-100) - Cub Cadet Front-Tine Tiller Engine (1992) B&S 3 HP Cylinder Ass'y Parts Diagram

Front-Tine Tiller Engine

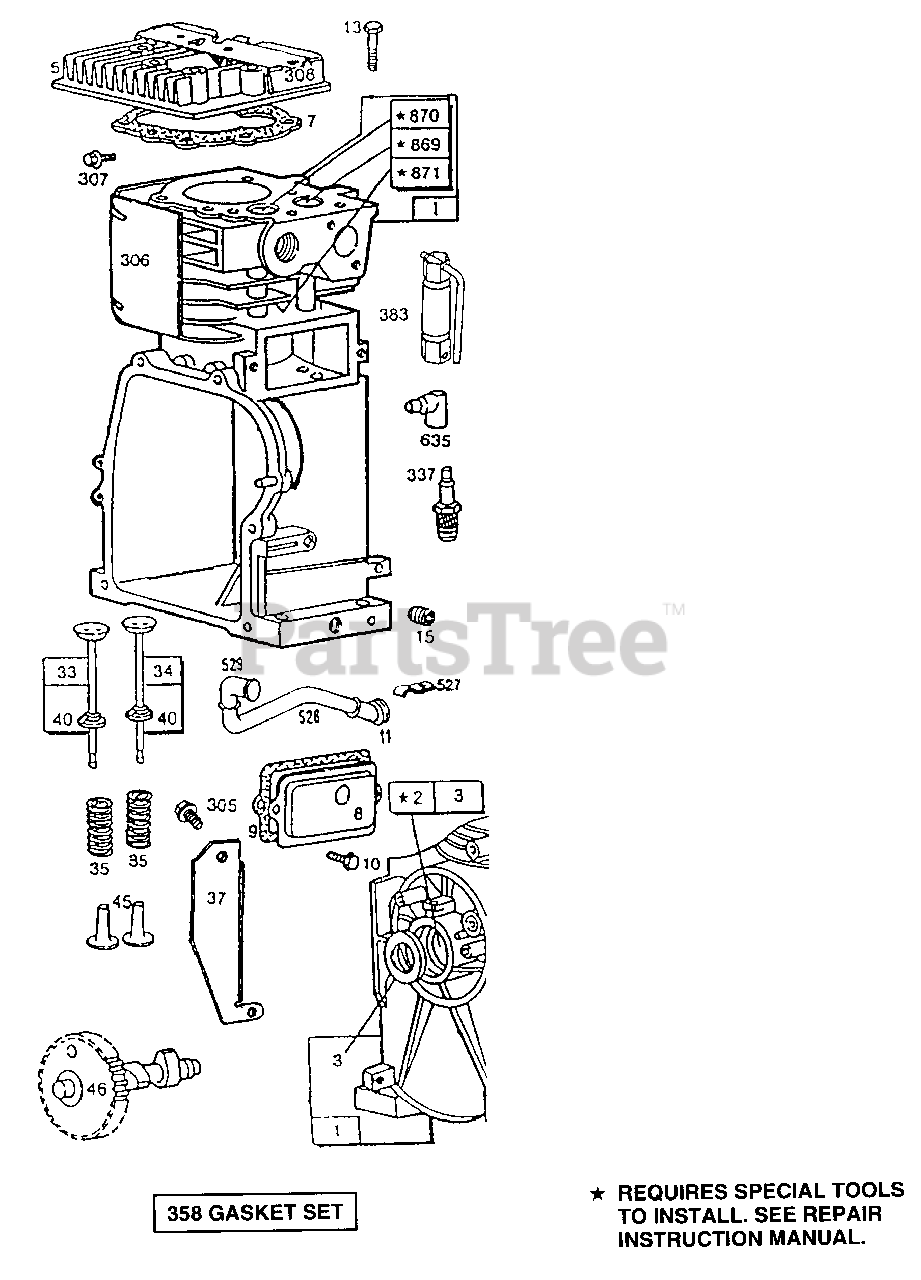

B&S 3 HP Cylinder Ass'y Parts Diagram

  • Title

1

Cub Cadet BS-494549

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

Note: Requires Special Tools For Installation.

$22.99

$

In Stock, only 4 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 19

0

5

Cub Cadet BS-211479

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272536

Gasket-Cylinder Head

$

$

Not available

8

Cub Cadet BS-294178

Breather-Valve Chamber
(Superseded to BS-791779)

$

$

Not available

9

Cub Cadet BS-27549

Gasket-Valve Cover

$

$

Not available

10

Cub Cadet BS-93394

Screw-Valve Cover Mounting
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet BS-66578

Grommet-Breather Tube
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-93111

Screw-Cylinder Head
(Superseded to BS-691640)

$3.99

$

In Stock, only 4 left!

0

15

Cub Cadet BS-94387

Plug-Pipe, (1/4" Std. Square Hd.)
(Superseded to BS-691686)

Note: BS-93448 Plug-Oil Drain(Hex. Socket Head)

$5.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-296676

Valve-Exhaust

Note: (Grooved Stem- Includes Retainer No. BS-93312)

$25.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

Note: (Grooved Stem- Includes Retainer No. BS-93312)

$26.99

$

In Stock, only 3 left!

0

35

Cub Cadet BS-260552

Spring-Valve

$5.99

$

In Stock, only 3 left!

0

37

Cub Cadet BS-224557

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

Note: Used With Valves With Groove in Stem.

$6.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-493747

Gear-Cam

$

$

Not available

?257

Cub Cadet BS-93543

Screw-Fil. Hd.

$

$

Not available

305

Cub Cadet BS-93777

Screw-Sem

$

$

Currently unavailable

306

Cub Cadet BS-224555

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93758

Screw-Cylinder Shield

$

$

Not available

308

Cub Cadet BS-224556

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark (1-7/8" High, 48 mm)(Resistor Type)

$3.99

$

In Stock, Qty 20+

0

358

Cub Cadet BS-494550

Gasket Set

$

$

Not available

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 2 left!

0

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231527

Tube-Breather
(Superseded to BS-692528)

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Breather Tube (90ø Angle)
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 14

0

869

Cub Cadet BS-211172

Seat-Intake Valve

Note: For Options See Repair Manual.

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve

Note: For Options See Repair Manual.

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

Note: BS-63709 Guide-Intake Valve. See Repair Manual.

$33.99

$

Usually ships in 2-12 days

0
