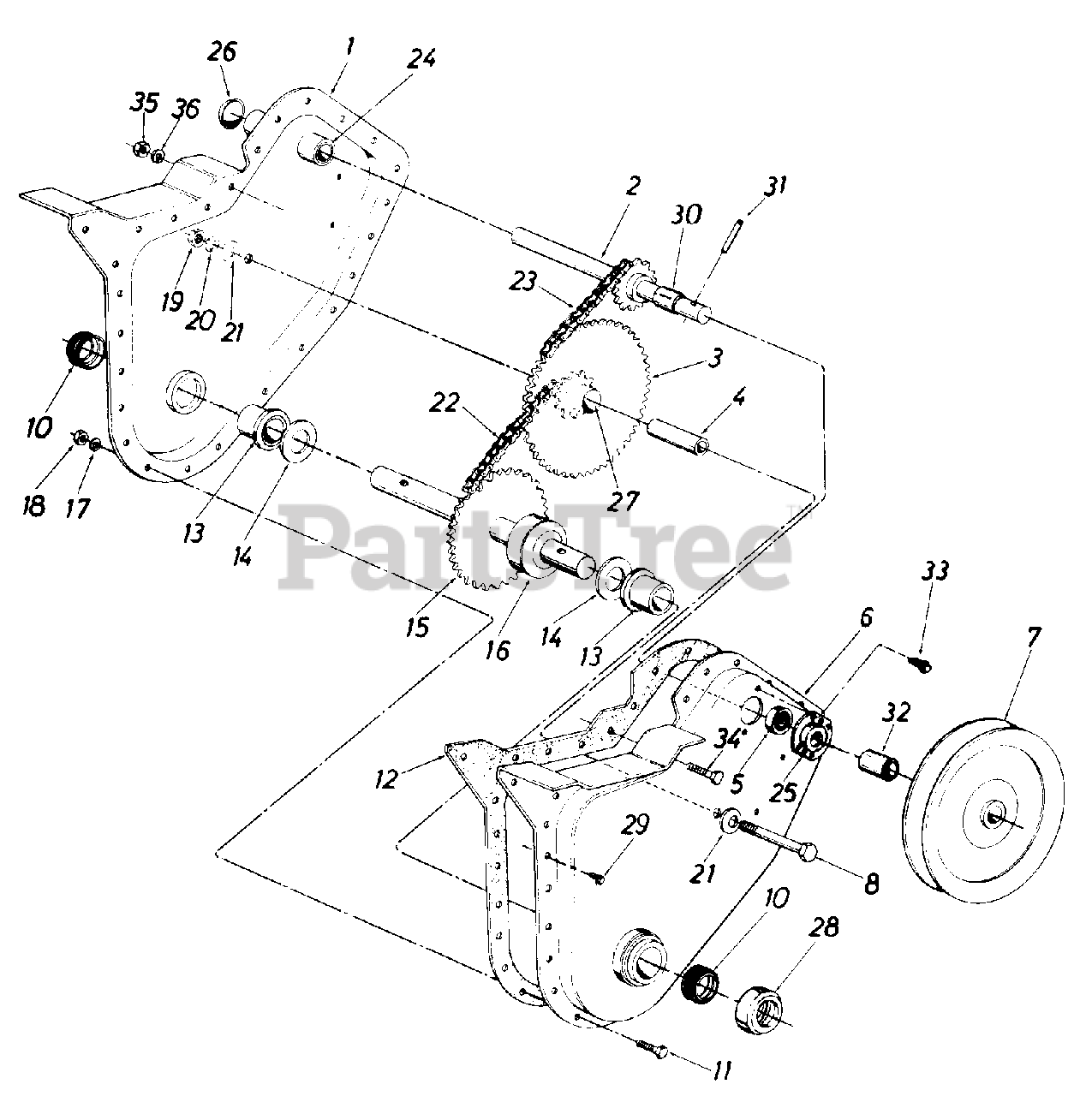

031 (219-031-100) - Cub Cadet Front-Tine Tiller (1989) Chain Case Assembly Parts Diagram

Front-Tine Tiller

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 04926

HOUSING-CHAIN-CASE RH

Note: Color Code 498

$

$

Currently unavailable

2

Cub Cadet 04756

SHAFT ASSY-INPUT

$

$

Not available

3

Cub Cadet 04757

SPROCKET & HUB ASSY
(Superseded to 04757A)

$

$

Not available

4

Cub Cadet 750-0351

BEARING-INNER RACE

$

$

Not available

5

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

6

Cub Cadet 15863

CHAIN CASE HSG-LH
(Superseded to 686-0087-0637)

Note: Color Code 498

$

$

Not available

7

Cub Cadet 756-0287

PULLEY

$

$

Not available

8

Cub Cadet 710-0369

SCREW-HEX 3/8-24 x 2.50

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 721-0157

SEAL

$

$

Not available

11

Cub Cadet 710-0195

SCREW-HEX 1/4-28 x .62
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

12

Cub Cadet 721-0156

GASKET
(Superseded to 921-0156A)

$

$

Not available

13

Cub Cadet 741-0227

BEARING-FLANGE

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0265

WASHER-FL-.88 x 1.50 x .030

$

$

Not available

15

Cub Cadet 04920

SHAFT ASSY-TINE

$

$

Not available

16

Cub Cadet 750-0354A

SPACER

$

$

Not available

17

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0219

WASHER-BELL .3/8ID x 1.12OD x .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

22

Cub Cadet 713-0269

#420 CHAIN 1/2 PITCH x 37 LINKS
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

$

$

Not available

23

Cub Cadet 713-0145

#35 CHAIN 3/8 PITCH x 49 LINKS

$

$

Not available

Cub Cadet 713-0139

#35 MASTER LINK 3/8 PITCH TYPE II
(Superseded to 913-0139)

$

$

Not available

24

Cub Cadet 748-0154

BEARING

$

$

Not available

25

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

26

Cub Cadet 726-0164

PLUG-EXPANSION

$

$

Not available

27

Cub Cadet 741-0228

BEARING-SLEEVE

$

$

Not available

28

Cub Cadet 731-0486

CAP-DUST

$

$

Not available

29

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0471

SPACER

$

$

Not available

31

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4 x 1.5 HEAVY DT

$8.49

$

In Stock, Qty 9

0

32

Cub Cadet 750-0550

SPACER

$

$

Not available

33

Cub Cadet 710-0653

SCREW-TAP 1/4-20 x .38

$4.49

$

In Stock, Qty 16

0

34

Cub Cadet 710-0118

SCREW-HEX 5/16-18 x .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0133

Plastilube #0 grease
(Superseded to 737-0300A)

Note: Use to lubricate

$32.99

$

In Stock, Qty 20+

0
