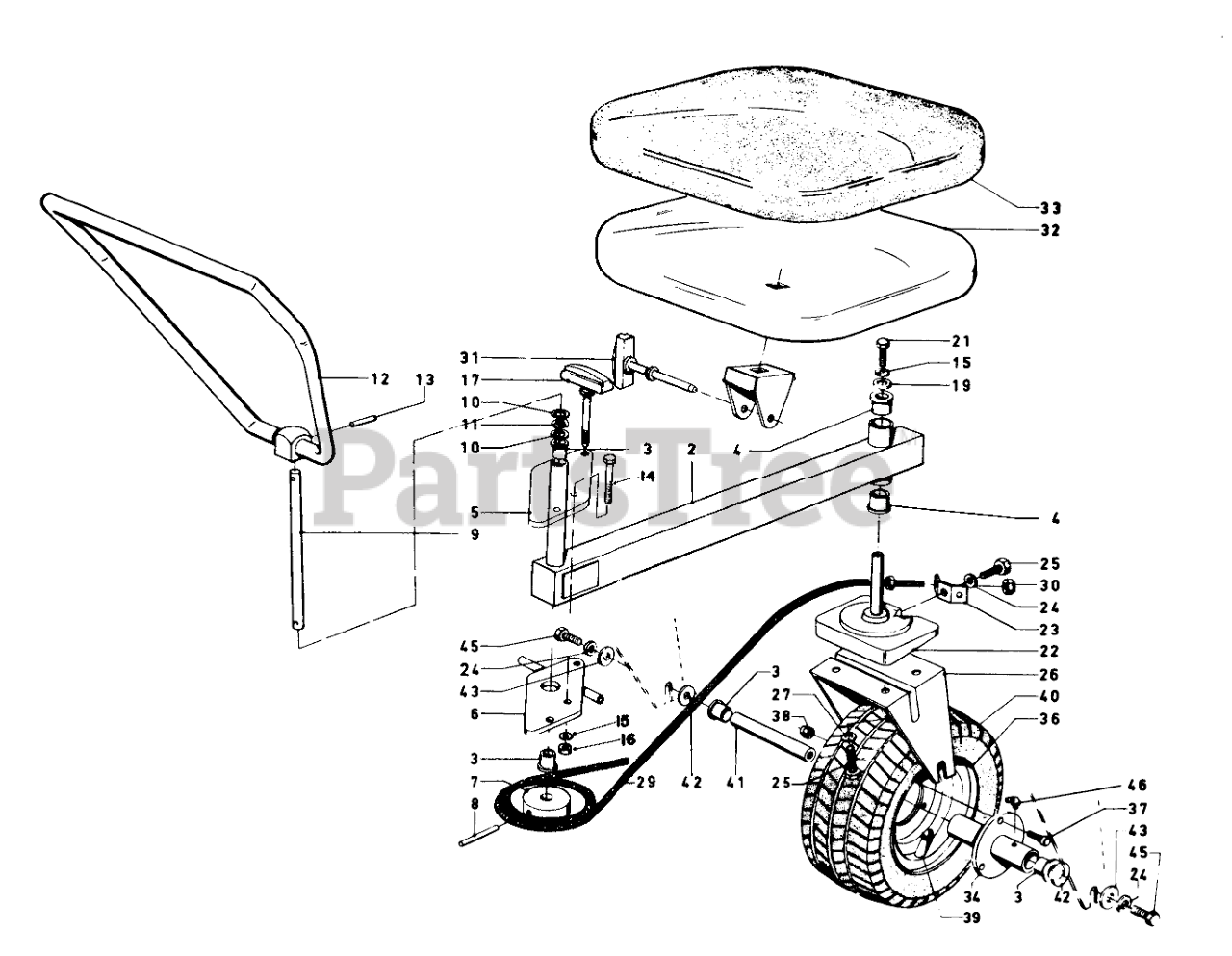

03104 - Toro 58" Professional Reel Riding Mower (SN: 000000001 - 000999999) (1980) SULKY ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

SULKY ASSEMBLY Parts Diagram

  • Title

2

Toro 5-0480

Rear Frame (Incl. Ref. #3 & 4)

$

$

Not available

3

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

4

Toro 256-148

FLANGE BUSHING

$

$

Currently unavailable

5

Toro 3-6495

Plate, Upper Hinge

$

$

Not available

6

Toro 3-7093

Plate, Lower Hinge

$

$

Not available

7

Toro 3-6493

FRT STRG PULLEY RO

$

$

Currently unavailable

8

Toro 32121-54

Pin

$

$

Currently unavailable

9

Toro 3-6501

STEERING SHAFT

$

$

Currently unavailable

10

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

11

Toro 3290-239

3/4 SPRING WASHER

$

$

Currently unavailable

12

Toro 3-8394

STEERING HANDLE ASM

$

$

Currently unavailable

13

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

14

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 10

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

17

Toro 3-7138

STUD & HANDLE ASM

$

$

Currently unavailable

19

Toro 4-2320

WASHER

$

$

Not available

21

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

22

Toro 5-2106

PVT CSTR/SFT WARO

$

$

Currently unavailable

23

Toro 3-6506

CABLE BRACKET R

$

$

Currently unavailable

24

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 3-6507

Wheel Fork

$

$

Not available

27

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 5-0460

STRG SWAGED CABLE ASM

$

$

Currently unavailable

30

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

31

Toro 3-7142

Handle Assembly

$

$

Not available

32

Toro 3-6604

Seat Assembly

$

$

Not available

33

Toro 351-24

SEAT PAD

$

$

Not available

34

Toro 2-9939

Hub (Incl. Ref. #3)

$

$

Not available

36

Toro 242-38

Wheel Disc Assy.

$

$

Not available

37

Toro 242-33

DRIVE STUD

$

$

Currently unavailable

38

Toro 242-32

LUG NUT

$

$

Currently unavailable

39

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

40

Toro 231-49

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

41

Toro 3-6515

Shaft

$

$

Not available

42

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

43

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

46

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0
