03104 - Toro 58" Professional Reel Riding Mower (SN: 005000001 - 005999999) (1975) REAR MOWER ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

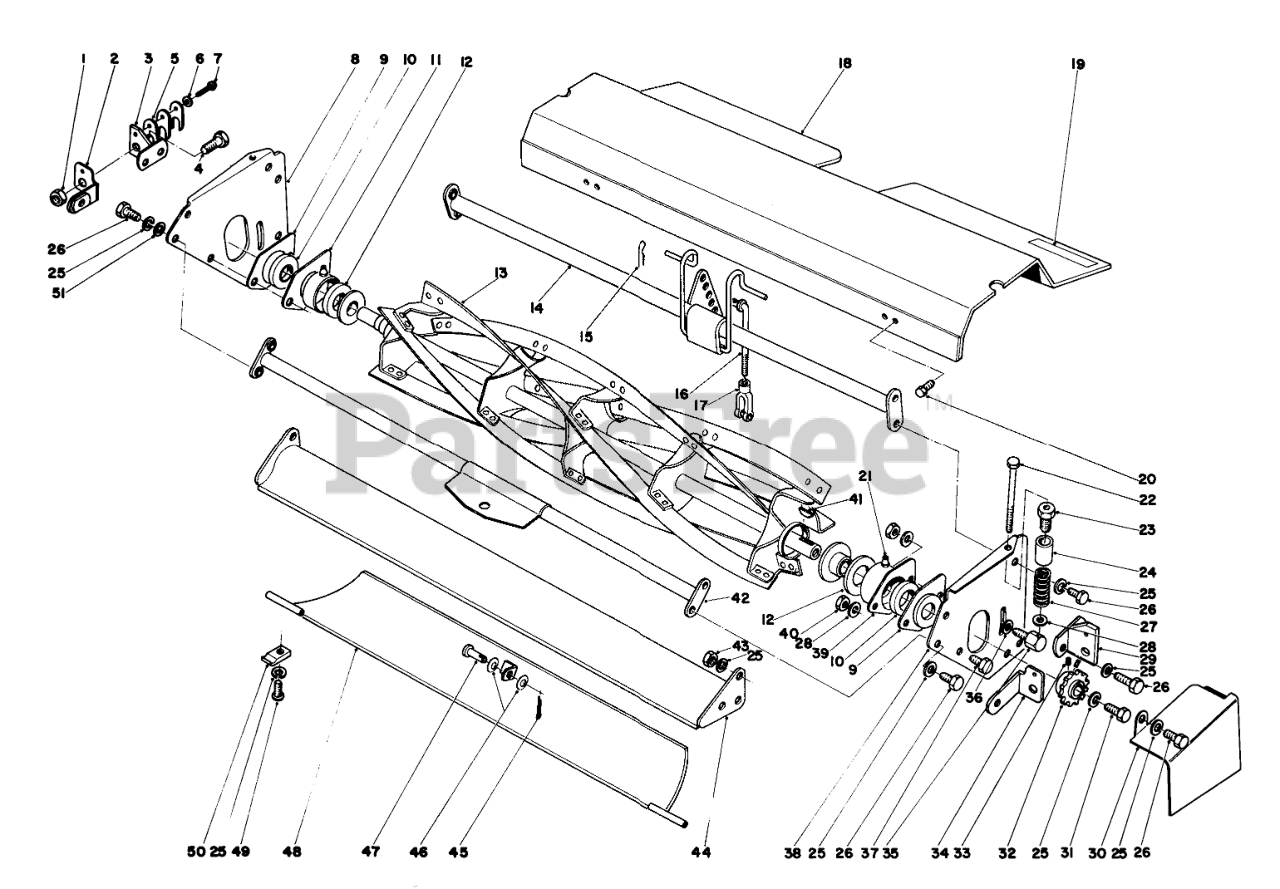

REAR MOWER ASSEMBLY Parts Diagram

  • Title
Usually ships in 5 to 8 days

$

$3.61

0

2

Toro Part# 5-4665

Ball Joint Bracket-Right
Usually ships same day

Not available

$

$

3

Toro Part# 5-4668

Hanger-Right Hand
Usually ships same day

Not available

$

$

4

Toro Part# 325-5

SCREW-HH
Usually ships in 1 day

$

$1.10

0

5

Toro Part# 5-3631

FRONT SIDE SHIM
Usually ships same day

Currently unavailable

$

$

6

Toro Part# 3253-12

WASHER-LOCK/SP
Usually ships same day

Not available

$

$

7

Toro Part# 3251-5

10-24 X 7/8 RND HD MS
Usually ships in 5 to 8 days

$

$3.25

0

8

Toro Part# 3-7795

Side Plate
Usually ships same day

Not available

$

$

9

Toro Part# 3-6637

Cup-Bearing
Usually ships same day

Not available

$

$

10

Toro Part# 251-123

.6693 RP BALL BEARING
Usually ships same day

Not available

$

$

11

Toro Part# 5-3811

Cup Bearing
Usually ships same day

Not available

$

$

12

Toro Part# 253-104

1 X .250 OIL SEAL
Usually ships same day

Currently unavailable

$

$

13

Toro Part# 4-4639

Reel Assy.
Usually ships same day

Not available

$

$

14

Toro Part# 3-6628

Tube-Reel
Usually ships same day

Not available

$

$

15

Toro Part# 3290-250

PIN-COTTER
Usually ships in 5 to 8 days

$

$4.99

0

16

Toro Part# 3-6651

Rod Adjusting
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$26.24

0

18

Toro Part# 5-3797

Shield-Grass
Usually ships same day

Not available

$

$

19

Toro Part# 27-5560

WARNING DECAL
Usually ships same day

Currently unavailable

$

$

20

Toro Part# 32104-77

10-16 X 3/8 THDG SCREW
Usually ships in 5 to 8 days

$

$2.76

0

21

Toro Part# 302-26

FITTING-GREASE
Usually ships in 1 day

$

$5.07

0

22

Toro Part# 3-6627

Screw-Adjusting
Usually ships same day

Not available

$

$

23

Toro Part# 3-6626

Bolt-Adjusting
Usually ships same day

Currently unavailable

$

$

24

Toro Part# 3-6625

ADJUSTMENT BLOCK
Usually ships same day

Currently unavailable

$

$

25

Toro Part# 3254-2

WASHER-LOCK, INTERNAL
Usually ships in 5 to 8 days

$

$0.25

0

26
Usually ships in 1 day

$

$1.30

0

27

Toro Part# 3-6624

SPRING-COMPRESSION
Usually ships same day

Not available

$

$

28

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

29

Toro Part# 5-4667

Hanger-Left Hand
Usually ships same day

Not available

$

$

30

Toro Part# 3-7192

Chain Guard
Usually ships same day

Not available

$

$

31

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

32

Toro Part# 3-6635

Sprocket-Reel
Usually ships same day

Not available

$

$

33

Toro Part# 3246-3

SCREW-HSH
Usually ships in 5 to 8 days

$

$4.82

0

34

Toro Part# 5-4666

Bracket, Ball Joint
Usually ships same day

Not available

$

$

35

Toro Part# 3-6623

REEL BEARING SCREW
Usually ships same day

Not available

$

$

36
Usually ships same day

Not available

$

$

37

Toro Part# 3-6665

BEARING CUP BOLT
Usually ships same day

Currently unavailable

$

$

38

Toro Part# 3-7794

Side Plate
Usually ships same day

Not available

$

$

39

Toro Part# 5-3812

Cup Bearing
Usually ships same day

Not available

$

$

40
Usually ships in 1 day

$

$0.72

0

41

Toro Part# 3257-5

KEY-WOODRUFF
Usually ships in 1 day

$

$4.53

0

42

Toro Part# 3-6617

Tube-Reel
Usually ships same day

Not available

$

$

43

Toro Part# 321-2

SCREW-HH
Usually ships in 1 day

$

$2.88

0

44

Toro Part# 5-4578

Bedknife
(Superseded to 40-8880)
Usually ships same day

Not available

$

$

45

Toro Part# 3272-6

PIN-COTTER
Usually ships in 1 day

$

$0.26

0

46

Toro Part# 3290-212

WASHER-SPRING
Usually ships in 5 to 8 days

$

$3.33

0

47

Toro Part# 283-1

PIN-CLEVIS
Usually ships in 5 to 8 days

$

$1.38

0

Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

50

Toro Part# 3-6657

CLIP-SKID
Usually ships in 5 to 8 days

$

$28.37

0

51

Toro Part# 3256-3

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0
