03108 - Toro 58" Professional Reel Riding Mower (SN: 002000001 - 002999999) (1982) DIFFERENTIAL AND COUNTERSHAFT ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

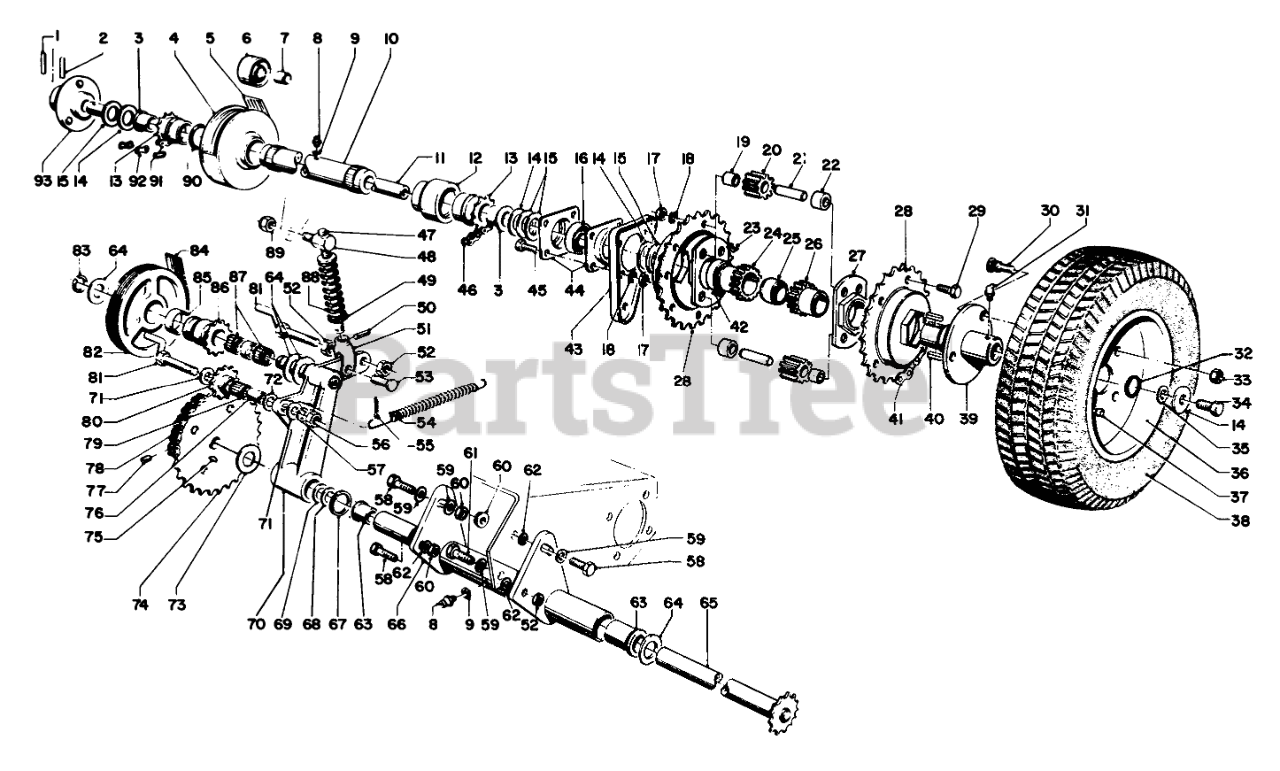

DIFFERENTIAL AND COUNTERSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

2

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

3

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

4

Toro 3-8369

Pulley & Hub Assembly (Incl. Ref. #90)

$

$

Not available

5

Toro 3-6587

REEL BELT

$

$

Not available

6

Toro 3-7167

REEL IDLER R

$

$

Currently unavailable

7

Toro 3290-245

TOL RING

$

$

Currently unavailable

8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

9

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3-6531

REEL DRIVE TUBE R

$

$

Not available

11

Toro 3-6563

Axle

$

$

Not available

12

Toro 3-6528

Hub

$

$

Not available

13

Toro 3-1429

Sprocket (Incl. Ref. #3)

$

$

Not available

14

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

16

Toro 251-172

Bearing

$

$

Not available

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 256-154

BUSHING

$12.99

$

Usually ships in 3-6 days

0

20

Toro 5-1401

Gear-Spur (Incl. Ref. #19)

$

$

Currently unavailable

21

Toro 3-8026

GEAR BUSHING SHAFT

$

$

Currently unavailable

22

Toro 3-8025

SPACER

$

$

Currently unavailable

23

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

24

Toro 43-5270

Side Gear, Differential

$

$

Not available

25

Toro 5-2036

SPACER

$

$

Currently unavailable

26

Toro 43-5280

Side Gear, Differential

$

$

Not available

27

Toro 5-1413

Planet Carrier (Incl. Ref. #42)

$

$

Currently unavailable

28

Toro 3-8015

Case, Sprocket

$

$

Currently unavailable

29

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 12

0

30

Toro 242-33

DRIVE STUD

$

$

Currently unavailable

31

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

32

Toro 237-54

O-RING

$2.49

$

Usually ships in 3-6 days

0

33

Toro 242-32

LUG NUT

$

$

Currently unavailable

34

Toro 3211-2

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

36

Toro 242-38

Wheel Disc Assy.

$

$

Not available

37

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

38

Toro 231-81

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

39

Toro 3-8729

Hub, Left Side (Incl. Ref. #30)

$

$

Not available

40

Toro 32150-1

KEY-SQUARE

$4.99

$

Usually ships in 3-6 days

0

41

Toro 3-7786

Chain

$

$

Not available

42

Toro 256-157

Bushing

$

$

Not available

43

Toro 3-6572

Bracket

$

$

Not available

44

Toro 3-5403

Bearing Retainer

$

$

Not available

45

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 5-4673

Chain, Reel Drive-Rear

$

$

Not available

47

Toro 5-1444

ROD & FLANGE WA

$

$

Currently unavailable

48

Toro 5-1018

Pivot Rod

$

$

Not available

49

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 32121-7

PIN-ROLL, SLOTTED

$

$

Currently unavailable

51

Toro 3-8325

CLEVIS

$

$

Currently unavailable

52

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

53

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

54

Toro 3-7243

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

55

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

56

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 9

0

57

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

58

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

59

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

61

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

62

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

63

Toro 256-149

Bushing

$

$

Currently unavailable

64

Toro 3-6543

THRUST WASHER

$

$

Currently unavailable

65

Toro 3-6555

Countershaft & Sprocket

$

$

Not available

66

Toro 3-6552

Countershaft Tube Assembly (Incl. Ref. #63)

$

$

Not available

67

Toro 32120-69

RING-SNAP

$

$

Not available

68

Toro 3-6558

THRUST WASHER

$

$

Currently unavailable

69

Toro 3-6561

THRUST WASHER

$

$

Currently unavailable

70

Toro 5-1048

Belt Crank Assy. (Incl. Ref. #8)

$

$

Not available

71

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

72

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

73

Toro 3-6557

THRUST WASHER

$

$

Currently unavailable

74

Toro 5-1841

LARGE SPROCKET ASM

$

$

Currently unavailable

75

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

76

Toro 3-7386

SPINDLE

$

$

Currently unavailable

77

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

78

Toro 3-6535

TRACTION CHAIN

$117.99

$

Usually ships in 3-6 days

0

79

Toro 252-62

Bearing

$

$

Not available

80

Toro 3-6379

Sprocket, Idler (Incl. Ref. #79)

$

$

Currently unavailable

81

Toro 3-6547

Belt Guide

$

$

Not available

82

Toro 3-6534

TRACTION PULLEY

$

$

Not available

83

Toro 32120-38

5/8X030 EX MED RING

$

$

Not available

84

Toro 3-6702

TRACTION BELT

$

$

Not available

85

Toro 3290-241

Ring Tolerance

$

$

Currently unavailable

86

Toro 3-6544

TRACTION SPROCKET

$

$

Not available

87

Toro 252-64

.625 NEEDLE BEARING

$

$

Currently unavailable

88

Toro 3-8284

COMP SPRING R

$

$

Currently unavailable

89

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

90

Toro 32151-16

2-1/2X086 EX SNP RING

$

$

Currently unavailable

91

Toro 5-4674

Chain, Reel Drive-Front

$

$

Not available

92

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

93

Toro 2-9739

Hub Right Side (Incl. Ref. #30)

$

$

Currently unavailable
