03113 - Toro 58" Professional Reel Riding Mower (SN: 000000001 - 000999999) (1970)

58" Professional Reel Riding Mower

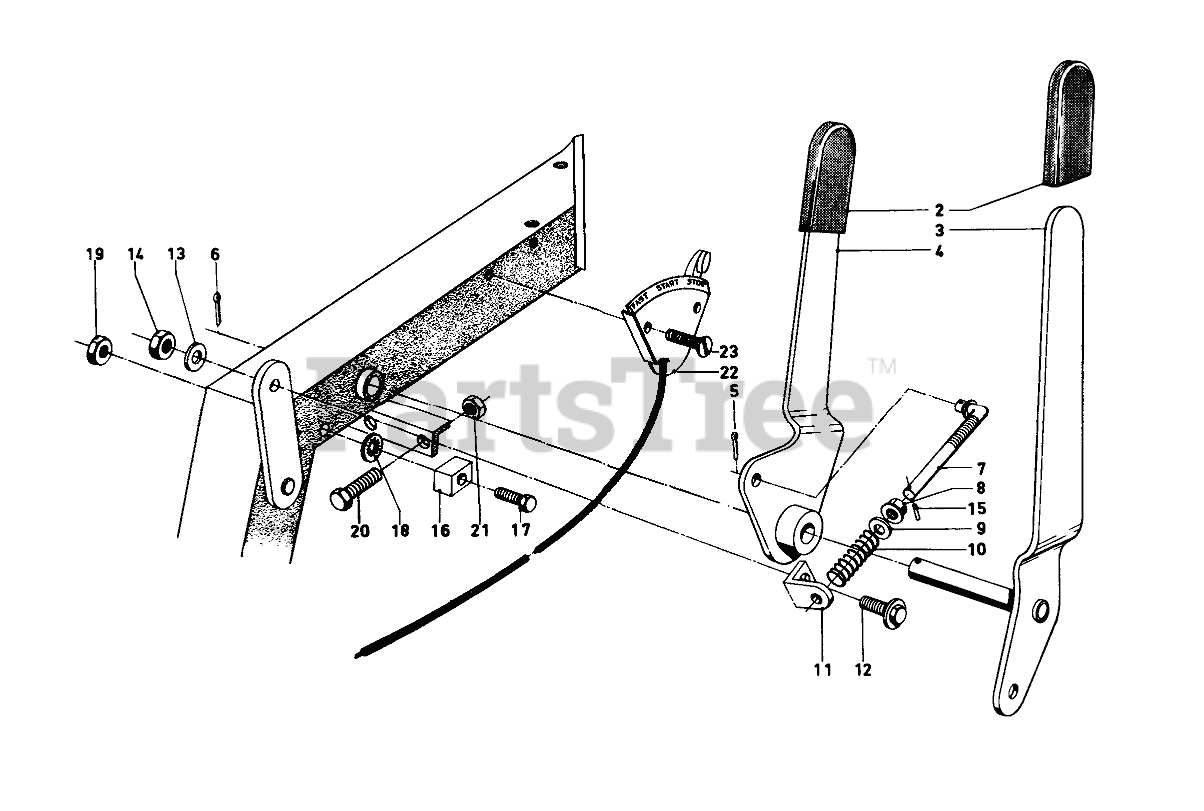

03113 - Toro 58" Professional Reel Riding Mower (SN: 000000001 - 000999999) (1970) > Parts Diagrams (8) > CONTROLS

  • Title
5-1022

2

Grip

Part# 5-1022 (Superseded to 3-7877)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.86

3-714

3

Control, Traction

Part# 3-714

OEM Warranty Repair Part for Toro

Currently unavailable

3-7169

4

Control Reel

Part# 3-7169

OEM Warranty Repair Part for Toro

Currently unavailable

3272-6

5

PIN-COTTER

Part# 3272-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.23

3272-10

6

PIN-COTTER

Part# 3272-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.84

3-6718

7

ROD

Part# 3-6718

OEM Warranty Repair Part for Toro

Currently unavailable

32146-4

8

NUT-LOCK NI

Part# 32146-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.88

3256-2

9

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

3-6685

10

SPRING

Part# 3-6685

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.60

3-6725

11

PIVOT BRACKET

Part# 3-6725

OEM Warranty Repair Part for Toro

Currently unavailable

3-7166

12

IDLER SHOULDER SCREW

Part# 3-7166

OEM Warranty Repair Part for Toro

Currently unavailable

3253-3

13

WASHER-LOCK

Part# 3253-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.11

3220-1

14

NUT-JAM

Part# 3220-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.91

32121-7

15

PIN-ROLL, SLOTTED

Part# 32121-7

OEM Warranty Repair Part for Toro

Currently unavailable

3-7168

16

REEL STOP

Part# 3-7168

OEM Warranty Repair Part for Toro

Currently unavailable

322-14

17

SCREW-HH

Part# 322-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.99

3290-244

18

WASHER-LOCK

Part# 3290-244

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.55

32197-45

19

Nut

Part# 32197-45

OEM Warranty Repair Part for Toro

Currently unavailable

329-6

20

SCREW-HH

Part# 329-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.11

3219-1

21

NUT-HEX

Part# 3219-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.32

3-7257

22

Throttle Control Assy.

Part# 3-7257

OEM Warranty Repair Part for Toro

Not available

32104-72

23

10-24 X 1 PAN HD SCR

Part# 32104-72

OEM Warranty Repair Part for Toro

Not available
