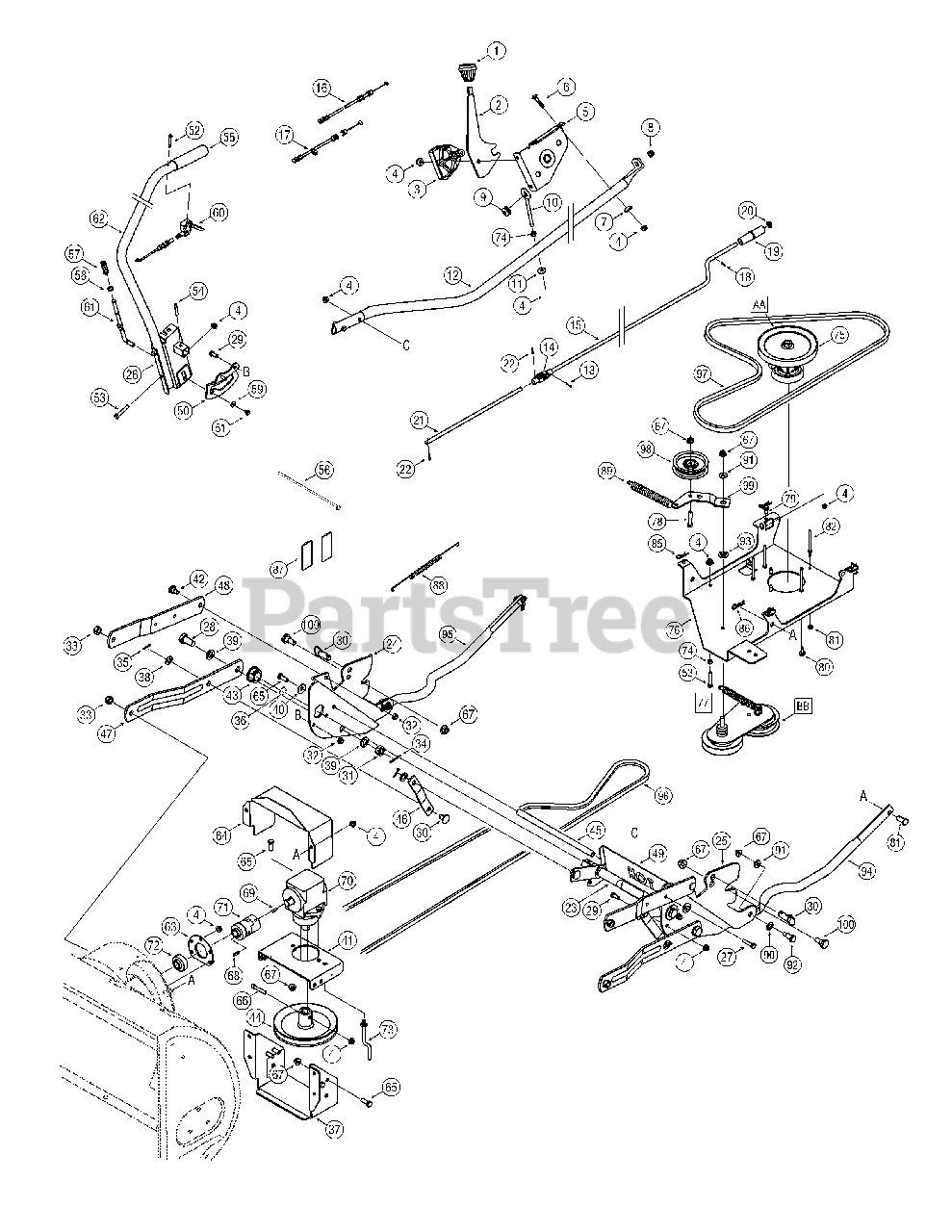

032 (190-032-101) - Cub Cadet 42" Snow Thrower Attachment att Drive & Handle Assembly 2007 & 2008 Parts Diagram

42" Snow Thrower Attachment

Drive & Handle Assembly 2007 & 2008 Parts Diagram

  • Title

$9.99

$

In Stock, Qty 5

0

2

Cub Cadet 784-5604A-0637

Chute Tilt Handle

$23.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 603-0302-0637

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

$64.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 936-0451

Saddle Washer, .32 x .93
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 941-0475

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 735-0234

Rubber Grommet, .44 x .94 x .5

$4.99

$

In Stock, only 3 left!

0

10

$7.99

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0242

Bell Washer, .340 x .872

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 750-04467-0627

Support Chute Tube

$

$

Currently unavailable

13

Cub Cadet 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 684-04350

Joint Block Assembly

$26.99

$

In Stock, only 4 left!

0

15

Cub Cadet 747-1201A

Chute Crank Rod, .375 x 33

$74.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-1108

Chute Cable, 62''
(Superseded to 946-1108)

$58.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-1109

Chute Cable w/Clip, 62''
(Superseded to 746P1109)

$64.99

$

In Stock, Qty 5

0

18

Cub Cadet 915-0138

Rolled Pin, 1/8 x .63

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 6

0

20

Cub Cadet 926-0100

Push Cap, 3/8 ID
(Superseded to 726-0100)

$

$

Not available

21

Cub Cadet 747-04400A

Rod, .375 x 11.375

$20.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 715-0129

Spirol Pin, .125 x .82

$4.49

$

In Stock, only 1 left!

0

23

$328.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-0880E-0637

RH - Support Plate Assembly

$113.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-0879E-0637

LH - Support Plate Assembly

$113.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 683-04150

Lift Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-04150-0716

BRACKET:LIFT SNOW - CUB YELLOW-99 (0716)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-04150-0637

BRACKET:LIFT SNOW - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

28

Cub Cadet 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 911-0332

Clevis Pin, .5 x .78

$14.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0386A

Slotted Hex Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

36

Cub Cadet 916-0102

Snap Ring
(Superseded to 716-0102)

$4.99

$

In Stock, Qty 20+

0

37

$104.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-0272

Flat Washer,.51 x 1.0 x .060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 936-0452

Bell Washer, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.49

$

In Stock, Qty 19

0

41

Cub Cadet 783-1014A-0637

Drive Mounting Bracket

$80.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$9.99

$

In Stock, only 4 left!

0

43

Cub Cadet 941-0170

Flange Bearing w/ Flats

$17.99

$

In Stock, only 2 left!

0

44

Cub Cadet 756-1181A

Drive Pulley, 7''

$105.99

$

In Stock, only 1 left!

0

45

Cub Cadet 747-1192

Rod, 1/2 x 11.55

$46.99

$

Usually ships in 3-6 days

0

46

$35.99

$

Usually ships in 3-6 days

0

47

$81.99

$

Usually ships in 3-6 days

0

48

$47.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 783-1274B

Heat Shield

$

$

Not available

50

Cub Cadet 790-00110-0637

Snow Thrower Lift Bracket

$37.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-1268

Hex Index Washer Screw #10-16

$3.99

$

In Stock, Qty 8

0

52

Cub Cadet 710-3143

Pan Phillips Screw, #10-24 x .75

$10.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 915-0114

Heavy Duty Spirol Pin, 1/4 x 1.5
(Superseded to 715-0114)

$8.49

$

In Stock, Qty 12

0

55

Cub Cadet 720-0274

Handle Grip

$10.99

$

In Stock, Qty 8

0

56

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 3 left!

0

57

Cub Cadet 932-0306A

Compression Spring

$7.99

$

In Stock, Qty 20+

0

58

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

59

Cub Cadet 936-0400

Flat Washer, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

60

Cub Cadet 946-1103A

Lift Cable, 42'' w/Trigger Control
(Superseded to 946-05201)

$68.99

$

In Stock, Qty 5

0

61

Cub Cadet 747-1203

Lift Index Rod

$51.99

$

In Stock, only 4 left!

0

62

Cub Cadet 750-1221

Lift Handle Tube

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 750-1221-0637

TUBE-LIFT HANDLE - POWDER BLACK (0637)

$259.99

$

Usually ships in 3-6 days

0

Cub Cadet 750-1221-0716

TUBE-LIFT HANDLE - CUB YELLOW-99 (0716)

$259.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 05931A

Bearing Housing, 1.85 ID

$9.99

$

In Stock, only 2 left!

0

64

Cub Cadet 703-2736

Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-2736-0498

COVER-BELT - OLD CUB YELLOW (0498)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2736-0637

COVER-BELT - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-3251

Socket Head Cap Screw

$5.99

$

In Stock, Qty 13

0

67

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

69

Cub Cadet 914-0126

Hi-Pro Key, 3/16 x .75
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 917-1714B

Right Angle Drive

$621.99

$

Usually ships in 3-6 days

0

71

$158.99

$

In Stock, only 4 left!

0

72

Cub Cadet 941-0309

Flange Ball Bearing, .75 x 1.85

$69.99

$

In Stock, Qty 7

0

73

Cub Cadet 747-1257

Belt Keeper Rod

$20.99

$

In Stock, only 2 left!

0

74

Cub Cadet 912-3010

Flange Nut, 5/16
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 918-0411A

Spindle Assembly

$125.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 683-04210-0637

Pulley Mounting Bracket

$

$

Not available

77

Cub Cadet 684-0149

Double Idler Bracket Assembly
(Superseded to 753-08594)

$166.99

$

In Stock, only 1 left!

0

78

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

79

Cub Cadet 710-04511

Pin, 5/16-18

$32.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-1260A

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

81

Cub Cadet 911-0310

Clevis Pin, .5 x 1.18
(Superseded to 711-0310)

$

$

Not available

82

Cub Cadet 911-1000

Belt Keeper Pin

$10.99

$

In Stock, Qty 13

0

83

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

84

Cub Cadet 712-04100

Wing Nut 5/16-18

$9.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 714-0147

Internal Cotter Pin, .125 x 1.75

$4.49

$

In Stock, Qty 12

0

87

Cub Cadet 930-3000

Reflector

$16.99

$

In Stock, Qty 7

0

88

Cub Cadet 732-04237

Extension Spring, .50 x 12.00

$21.99

$

In Stock, Qty 6

0

89

Cub Cadet 932-0594A

Extension Spring, .91 x 7.33

$13.99

$

In Stock, Qty 20+

0

90

Cub Cadet 936-0192

Flat Washer.531 x .93 x .09

$3.99

$

In Stock, Qty 18

0

91

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 938-0145

Shoulder Screw, 3/8-16

$6.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 938-0347

Shoulder Spacer, .625 x .169

$9.49

$

In Stock, Qty 18

0

94

Cub Cadet 749-1103-0637

LH - Support Tube

$49.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 749-1104-0637

RH - Support Tube

$49.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 954-0125A

V-Belt (1/2 x 105)

$55.99

$

In Stock, only 1 left!

0

97

Cub Cadet 954-0498

V-Belt (A Sec. x 66.90)

$44.99

$

In Stock, Qty 20+

0

98

Cub Cadet 756-0627D

Idler Pulley 3.50 Dia

$28.99

$

In Stock, Qty 20+

0

99

Cub Cadet 783-1291-0637

Idler Bracket
(Superseded to 783-1291A-0637)

$11.99

$

In Stock, Qty 6

0

100

Cub Cadet 738-0143

Shoulder Bolt

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 911-0332

Clevis Pin

Note: (not shown)(Use with 714-0145 Click Pin)

$14.99

$

In Stock, Qty 20+

0

AA - Refer to Spindle and Pulley 2007 & 2008

$

$

Not available

BB - Refer to Spindle and Pulley 2007 & 2008

$

$

Not available
