03283600 - Ariens 3100 Series Hydro-Gear Transmission

3100 Series Hydro-Gear Transmission

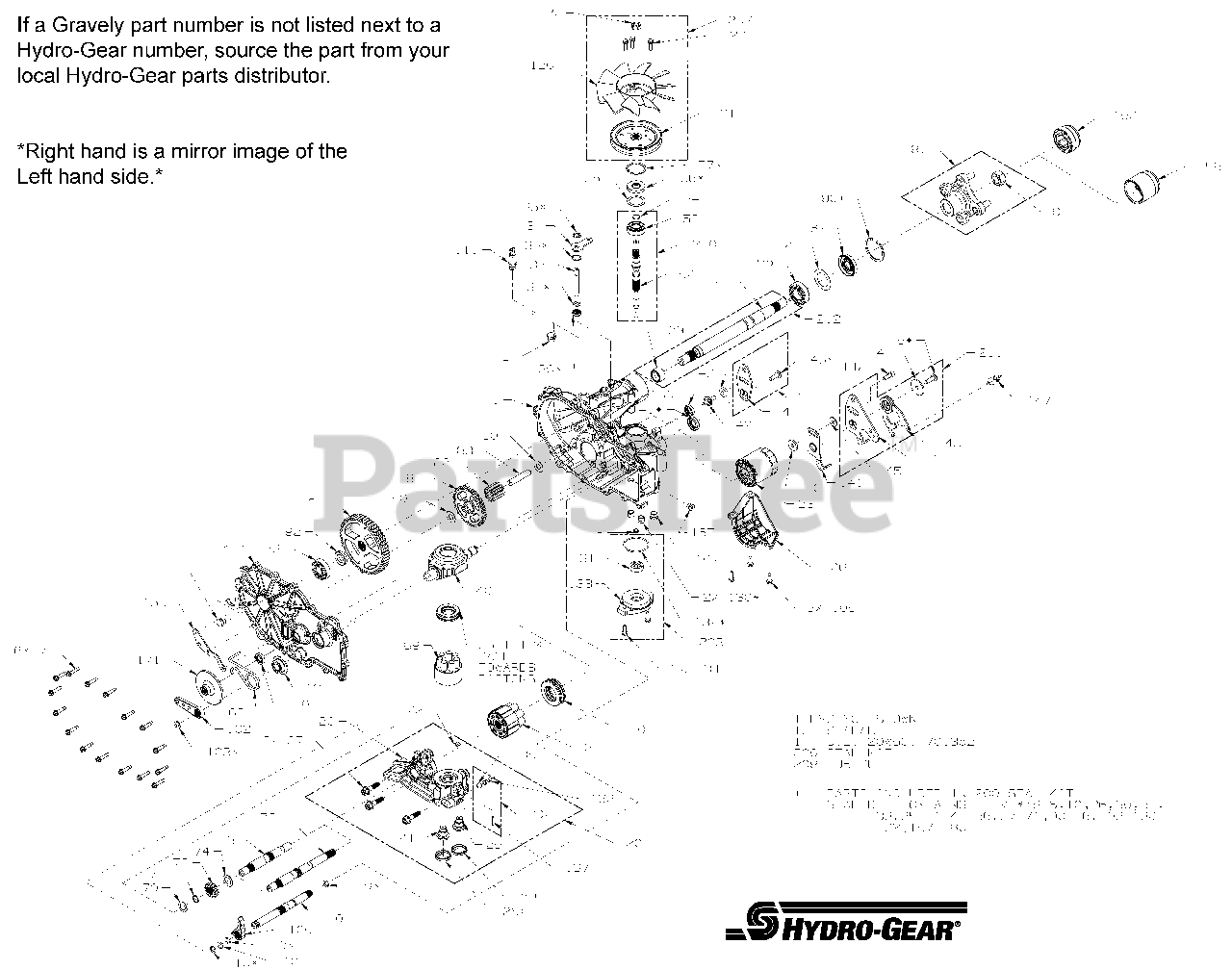

03283600 - Ariens 3100 Series Hydro-Gear Transmission > Parts Diagrams (1) > Transmission, RH - 03283600

  • Title

1

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Part#

Note: Hydro-Gear p/n 71413

Not available

2

KIT, COVER, SIDE, RH

Part#

Note: Hydro-Gear p/n 71572

Not available

27105900

7

SCREW,HEX WASHER 1/4-20X1.125

Part# 27105900

Note: Hydro-Gear p/n 53246

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.58

10

O-RING -111 .103 X .424

Part#

Note: Hydro-Gear p/n 51804

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

Part#

Note: Hydro-Gear p/n 54730

Not available

21543771

13

SEALANT TUBE 10.1OZ.

Part# 21543771

Note: Hydro-Gear p/n 50928

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.37

14

OIL, 20W50

Part#

Note: N/A

Not available

21543839

22

PLATE, BYPASS

Part# 21543839

Note: Hydro-Gear p/n 51448

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.45

21545100

23

OIL FILTER, TRANSMISSION

Part# 21545100

Note: Hydro-Gear p/n 52114

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.50

21544047

26

SEAL, PLUG 1.375 X .250

Part# 21544047

Note: Hydro-Gear p/n 52162

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.36

27

HFHCS 3/8-16 X 1.5

Part#

Note: (PATCH) Hydro-Gear p/n 52137

Not available

21543845

30

SEAL, LIP .375X.75X.25

Part# 21543845

Note: Hydro-Gear p/n 51626

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.77

08622500

31

RING. RETAINING

Part# 08622500

Note: Hydro-Gear p/n 51628

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.90

32

ROD, BYPASS

Part#

Note: Hydro-Gear p/n 52136

Not available

21543846

33

RING, RET .750

Part# 21543846

Note: Hydro-Gear p/n 51627

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.73

21544046

34

ARM, BYPASS

Part# 21544046

Note: Hydro-Gear p/n 51910

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.01

21543848

35

RING, RTNG .

Part# 21543848

Note: Hydro-Gear p/n 51630

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.71

21543783

40

TRUNNION, SWASHPLATE

Part# 21543783

Note: Hydro-Gear p/n 51048

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $66.11

21543809

41

SEAL, LIP 18X32X7

Part# 21543809

Note: Hydro-Gear p/n 51140

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

08611200

45

WASHER

Part# 08611200

Note: Hydro-Gear p/n 44130

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.76

21543854

46

TWHCS 5/16-24 X 1.00

Part# 21543854

Note: (PATCH) Hydro-Gear p/n 51812

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.52

21543773

55

WASHER 1.23X1.56X.04

Part# 21543773

Note: Hydro-Gear p/n 50951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21543816

56

SEAL, LIP 17X40X7

Part# 21543816

Note: Hydro-Gear p/n 51161

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.19

21543741

57

RING, RET 1.56 INT

Part# 21543741

Note: Hydro-Gear p/n 50329

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21548902

60

HG THRUST BEARING (51462)

Part# 21548902

Note: Hydro-Gear p/n 51462

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.34

21548904

64

HG 16CC CYLINDER BLOCK (71579)

Part# 21548904

Note: Hydro-Gear p/n 71579

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.71

08609100

65

BEARING. THRUST 30 X 52 X 13

Part# 08609100

Note: Hydro-Gear p/n 50551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.66

21543921

69

ASSY, BLOCK 7 PISTON

Part# 21543921

Note: Hydro-Gear p/n 70723

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $124.05

21543708

70

WASHER .63X1.0X.05

Part# 21543708

Note: Hydro-Gear p/n 44371

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.96

21543704

71

RING, RET 62 EXT

Part# 21543704

Note: Hydro-Gear p/n 44145

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.45

72

GEAR, 13T, STEEL

Part#

Note: Hydro-Gear p/n 52342

Not available

73

SHAFT, MOTOR

Part#

Note: Hydro-Gear p/n 52150

Not available

21543788

74

WASHER .71 X 1.16 X .04

Part# 21543788

Note: Hydro-Gear p/n 51069

OEM Warranty Repair Part for Ariens

Not available

21543724

80

WASHER .5X1.0X.032

Part# 21543724

Note: Hydro-Gear p/n 50132

OEM Warranty Repair Part for Ariens

Not available

81

GEAR, 46T

Part#

Note: Hydro-Gear p/n 52343

Not available

82

GEAR, 11T, STEEL

Part#

Note: Hydro-Gear p/n 52586

Not available

21543793

83

JACK SHAFT (PIN)

Part# 21543793

Note: (PIN) Hydro-Gear p/n 51083

OEM Warranty Repair Part for Ariens

Not available

08616500

90

RING, RETAINING

Part# 08616500

Note: Hydro-Gear p/n 50859

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.08

91

GEAR, 54T

Part#

Note: Hydro-Gear p/n 52108

Not available

92

SPACER, .75 X 1.32 X .257

Part#

Note: Hydro-Gear p/n 53336

Not available

93

BEARING, BALL .75 X 40 X 12

Part#

Note: Hydro-Gear p/n 53071

Not available

08614000

95

BEARING, BALL 25.4 X 52 X 15

Part# 08614000

Note: Hydro-Gear p/n 53656

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.45

08614300

96

SEAL, LIP

Part# 08614300

Note: Hydro-Gear p/n 53699

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.40

21544023

97

HUB, HYDROGEAR P/N 71691

Part# 21544023

Note: Hydro-Gear p/n 71691

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $76.15

08621100

99

NUT, HEX, LOCK 3/4-16

Part# 08621100

Note: Hydro-Gear p/n 53768

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.19

100

PAWL, BRAKE

Part#

Note: Hydro-Gear p/n 52766

Not available

101

KIT, BRAKE SHAFT

Part#

Note: Hydro-Gear p/n 72046

Not available

21544037

102

BRAKE ARM HG 71957

Part# 21544037

Note: Hydro-Gear p/n 71957

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.03

103

RING, RETAINING

Part#

Note: Hydro-Gear p/n 53019

Not available

21543759

105

HFHCS 1/4-20X.75

Part# 21543759

Note: Hydro-Gear p/n 50752

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21544054

106

GUARD, FILTER, RH

Part# 21544054

Note: Hydro-Gear p/n 53655

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.97

21544058

111

KIT, FITTING 1/2 BEADED 9/16

Part# 21544058

Note: Hydro-Gear p/n 71393

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.42

120

FAN, 7.0 W/ INSERT

Part#

Note: (10 BLADE) Hydro-Gear p/n 53821

Not available

121

DISC, PULLEY, CUPPED, 4.5 INCH

Part#

Note: Hydro-Gear p/n 53804

Not available

21543703

122

NUT, HEX 1/2-20 PATCH

Part# 21543703

Note: Hydro-Gear p/n 44133

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.21

124

HUB, PULLEY

Part#

Note: Hydro-Gear p/n 53812

Not available

130

TUBE, CONNECTING

Part#

Note: Hydro-Gear p/n 54501

Not available

08611500

131

GEROTOR

Part# 08611500

Note: (1.9 cc/rev) Hydro-Gear p/n 50273

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.13

21544005

132

O-RING HYDROGEAR 52250

Part# 21544005

Note: Hydro-Gear p/n 52250

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.57

133

COVER, CHARGE PUMP

Part#

Note: Hydro-Gear p/n 53738

Not available

21543759

134

HFHCS 1/4-20X.75

Part# 21543759

Note: Hydro-Gear p/n 50752

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21543870

140

SPACER

Part# 21543870

Note: Hydro-Gear p/n 54315

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.45

21543866

141

ARM, NEUTRAL RIGHT

Part# 21543866

Note: Hydro-Gear p/n 51945

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.82

21543843

142

SHCS 5/16-24X1 PATCH

Part# 21543843

Note: (PATCH) Hydro-Gear p/n 51616

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

147

SPRING, EXTNSN RTN - 34 LBS

Part#

Note: Hydro-Gear p/n 51833

Not available

156

CAP, AXLE

Part#

Note: Hydro-Gear p/n 53088

Not available

157

KIT, GEROTOR SEAL

Part#

Note: Hydro-Gear p/n 72291

Not available

159

SPRING, TORSION, CW

Part#

Note: Hydro-Gear p/n 53483

Not available

164

SPACER

Part#

Note: Hydro-Gear p/n 53514

Not available

21543999

200

KIT, SEAL

Part# 21543999

Note: Hydro-Gear p/n 71410

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.58

21544062

201

KIT, CENTER SECTION RH, CHRG

Part# 21544062

Note: (INCLUDES ITEMS 20, 22, 24, 25, 26, 27, 28, 135, 136, 137) Hydro-Gear p/n 71561

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $268.24

202

KIT, CHARGE RELIEF

Part#

Note: (INCLUDES ITEMS 135, 136, 137) Hydro-Gear p/n 71436

Not available

21544077

203

KIT, CHARGE PUMP 71411

Part# 21544077 (Superseded to 21544060)

Note: (INCLUDES ITEMS 131, 132, 133, 134) Hydro-Gear p/n 72274

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $72.52

21544004

207

PULLEY/FAN KIT HG P/N 71694

Part# 21544004 (Superseded to 21543898)

Note: Hydro-Gear p/n 72124

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.37

21544009

209

HUB PULLER 4 BLT HYDGEAR 71459

Part# 21544009 (Superseded to 21544008)

Note: Hydro-Gear p/n 72320

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $205.53

21544010

210

INPUT SHAFT 2800 HYDGEAR 71442

Part# 21544010

Note: (INCLUDES ITEMS 52, 53, 54) Hydro-Gear p/n 71442

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $127.26

21544002

211

RTN KIT HYDROGEAR P/N 71597

Part# 21544002

Note: (INCLUDES ITEMS 44, 46, 145, 146) Hydro-Gear p/n 71597

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.97

212

KIT, SHAFT, AXLE

Part#

Note: Hydro-Gear p/n 71569

Not available
