035 (215-035-100) - Cub Cadet Front-Tine Tiller (1995) Tiller Assembly Parts Diagram

Front-Tine Tiller

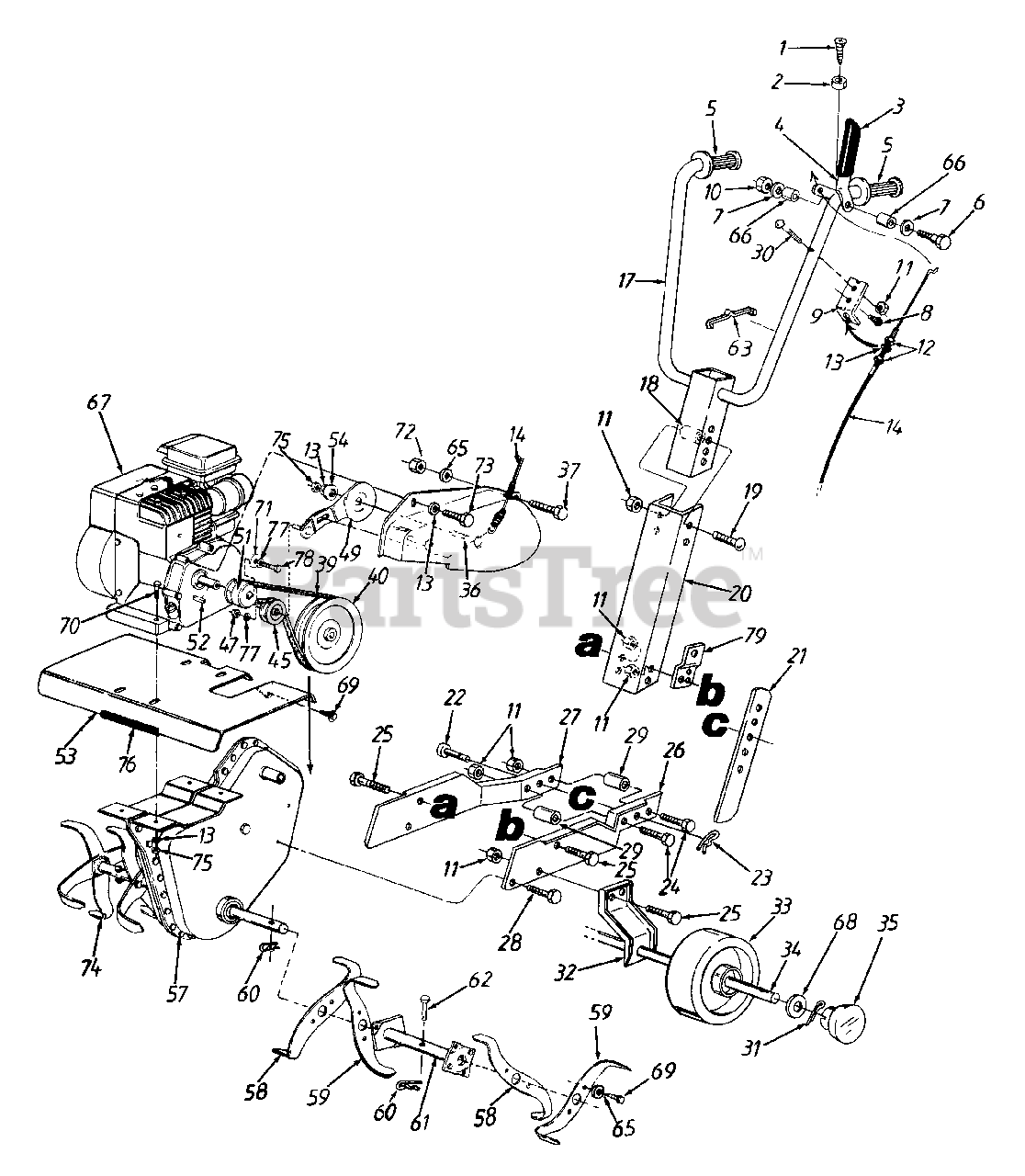

Tiller Assembly Parts Diagram

  • Title

1

Cub Cadet 710-1167

Tap Scr. #10-16 x 1/2" Lg.

$

$

Not available

2

Cub Cadet 720-0263

Rubber Bumper

$

$

Not available

3

Cub Cadet 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 686-0002

Clutch Lever Ass'y.
(Superseded to 686-0002-0637)

Variations

Cub Cadet 686-0002-0637

LEVER ASSY-CLUTCH - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

6

Cub Cadet 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-3090

Fl-Wash. 1/4" I.D.

$6.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-1201

Hex Tap Scr. 1/4-20 x 1/2" Lg.

$

$

Not available

9

Cub Cadet 15093C

Cable Bracket

$

$

Not available

10

Cub Cadet 712-0324

Lock Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0429

Lock Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$39.99

$

In Stock, Qty 5

0

17

Cub Cadet 649-0153

Handle Ass'y.

Variations

Cub Cadet 649-0153-0637

UPPER HAND - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 750-0848

Spacer

$

$

Not available

19

Cub Cadet 710-0572

Carr. Bolt 5/16-18 x 2-1/2" Lg.

$3.99

$

In Stock, Qty 5

0

20

Cub Cadet 786-0013

Handle Channel - Frame

Variations

Cub Cadet 786-0013-0637

FRAME-CHANNEL HDL POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 04764

Depth Stake

$

$

Not available

22

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-0145

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 17

0

25

Cub Cadet 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-0011

L.H. Frame Half

$

$

Not available

27

Cub Cadet 786-0010

R.H. Frame Half

$

$

Not available

28

Cub Cadet 710-0607

Hex Tap. Scr. 5/16-18 x 1/2" Lg.

$6.49

$

In Stock, Qty 20+

0

29

Cub Cadet 750-0845

Spacer
(Superseded to 750-0808)

$

$

Not available

30

Cub Cadet 710-1090

Hex Bolt 5/16-18 x 1-1/4" Lg.

$3.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 714-3017

Cotter Pin
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 786-0012

Wheel Bracket
(Superseded to 786-0012-0637)

$

$

Not available

33

Cub Cadet 634-0013

Wheel - 6"

$

$

Not available

34

Cub Cadet 738-0855

Axle-Wheel

$

$

Not available

35

Cub Cadet 720-0258

Hub Cap

$

$

Not available

36

Cub Cadet 686-0021

Belt Cover

Variations

Cub Cadet 686-0021-0498

BELT COVER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 686-0021-0638

BELT COVER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

37

Cub Cadet 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 754-0216

V-Belt
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

40

Cub Cadet 756-0287

Pulley - Chain Case

$

$

Not available

45

Cub Cadet 756-0199

Flat Idler Pulley

$23.99

$

In Stock, only 2 left!

0

47

Cub Cadet 712-0116

Hex Jam L-Nut 3/8-24 Thd

$4.49

$

In Stock, Qty 7

0

49

Cub Cadet 784-0016

Idler Arm Ass'y

$

$

Not available

51

Cub Cadet 756-0286

Engine Pulley

$

$

Not available

52

Cub Cadet 714-0122

Square Key 3/16" x .75" Lg.

$3.49

$

In Stock, Qty 17

0

53

Cub Cadet 04765

Tine Shield

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

Cub Cadet 736-0289

Washer - Bushing
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

57

Cub Cadet 686-0022

Chain Case Ass'y Comp.

$

$

Not available

58

Cub Cadet 04922

R.H. Tine Blade

$

$

Not available

59

Cub Cadet 04923

L.H. Tine Blade
(Superseded to 04923-0637)

Variations

Cub Cadet 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 714-01498

Hairpin Cotter

$

$

Currently unavailable

61

Cub Cadet 04918

Adapter Ass'y - Tine
(Superseded to 04918-0637)

Variations

Cub Cadet 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

62

Cub Cadet 711-0702

Clews Pin

$

$

Not available

63

Cub Cadet 726-0306

Cable Tie - Plastic

$

$

Not available

65

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

66

Cub Cadet 750-0846

Spacer

$

$

Not available

67

Engine

$

$

Not available

68

Cub Cadet 736-0185

Fl-Wash 3/8" I.D.

$3.49

$

In Stock, Qty 17

0

69

Cub Cadet 710-0599

Tap Scr 1/4-20 x 1/2" Lg

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1-1/2" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 04921

Tine Blade Ass'y Comp.

$

$

Not available

75

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 731-0511-12

Trim Strip

$20.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 736-0169

L-Wash. 3/8" I.D

$3.49

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1" Lg
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

79

Cub Cadet 786-0046

Belt Cover Bracket

$

$

Not available
