035 (216-035-100) - Cub Cadet Front-Tine Tiller Engine (1996) Engine Internal And Air Cleaner Assembly Parts Diagram

Front-Tine Tiller Engine

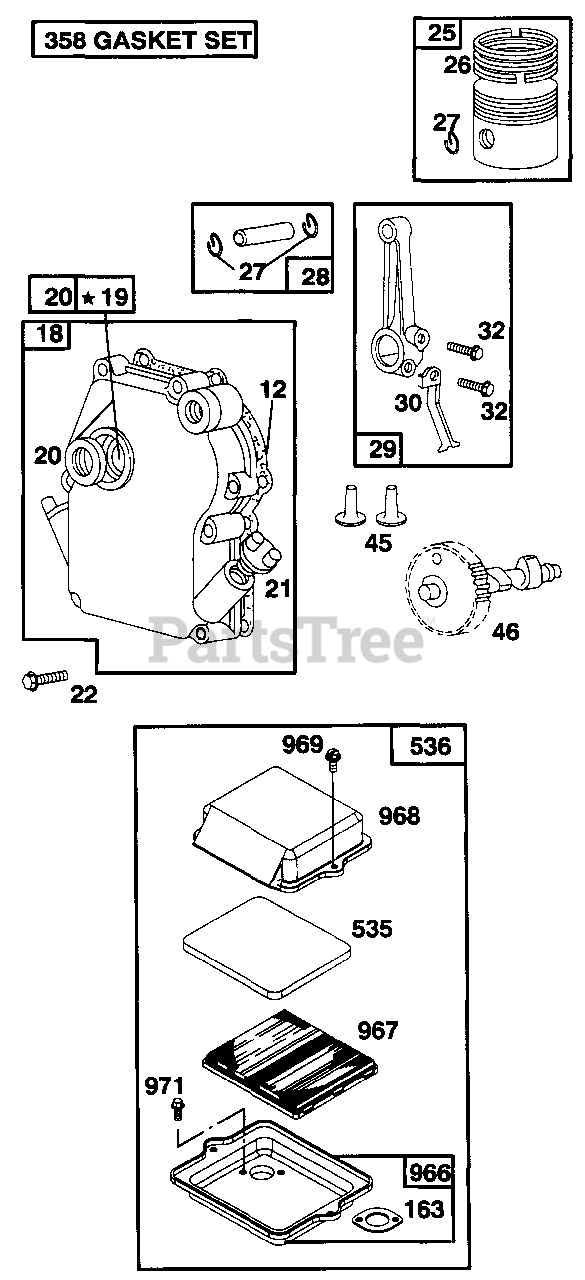

Engine Internal And Air Cleaner Assembly Parts Diagram

  • Title

12

Cub Cadet BS-270833

Gasket-Crankcase, (.015" Thick, Standard)
(Superseded to BS-692218)

Note: Included in Gasket Set - Part No. BS-495605.

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - Part No. BS-495605.

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270896

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - Part No. BS-495605.

$5.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-394909

Cover Assy.-Crkcse.

$

$

Not available

19

Cub Cadet BS-293708

Bushing-Crankcase Cover
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

20

Cub Cadet BS-495355

Seal-Oil

$

$

Not available

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-94682

Screw-Crankcase

Note: Note: BS-92747 Screw Used on Two Top Holes To Mount Cover.

$

$

Not available

25

Cub Cadet BS-298904

Piston Assy. (Std.)

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assy. (.010" O.S.)

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assy. (.020" O.S.)

$95.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298907

Piston Assy. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Piston (Std.)

$48.99

$

In Stock, Qty 11

0

Cub Cadet BS-298983

Ring Set-Piston (.010" O.S.)

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298984

Ring Set-Piston (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-Piston (.030" O.S.)

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assy.-Piston (Std.)

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Pin Assy.-Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-294367

Rod Assy.-Connecting

Note: Note: For Connecting Rod With .020" Undersize Crankpin Bore - Order Part No. BS-296079.

$

$

Not available

30

Cub Cadet BS-220670

Dipper-Conn. Rod

$

$

Not available

32

Cub Cadet BS-94404

Screw-Conn. Rod

$

$

Not available

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-493747

Gear-Cam

$

$

Not available

163

Cub Cadet BS-271935

Gasket-Air Cleaner
(Superseded to BS-271935S)

Note: Included in Gasket Set - Part No. BS-495605.

$6.49

$

In Stock, Qty 17

0

358

Cub Cadet BS-495605

Gasket Set

$47.99

$

Usually ships in 2-12 days

0

535

Cub Cadet BS-491435

Element-Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 20+

0

536

Cub Cadet BS-494279

Air Cleaner Kit

$

$

Not available

966

Cub Cadet BS-492797

Base-Air Cleaner
(Superseded to BS-494279)

$

$

Not available

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-495872

Cover-Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 5

0

969

Cub Cadet BS-490073

Screw-Cover Mtg.
(Superseded to BS-694515)

Note: (Includes Grommet)

$5.99

$

In Stock, Qty 12

0

971

Cub Cadet BS-94018

Screw-Air Cleaner
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

Cub Cadet BS-92747

Screw

$

$

Currently unavailable

Cub Cadet BS-296079

Connecting Rod

$18.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-495605

Gasket Set

Note: Includes items 12 & 163

$47.99

$

Usually ships in 2-12 days

0
