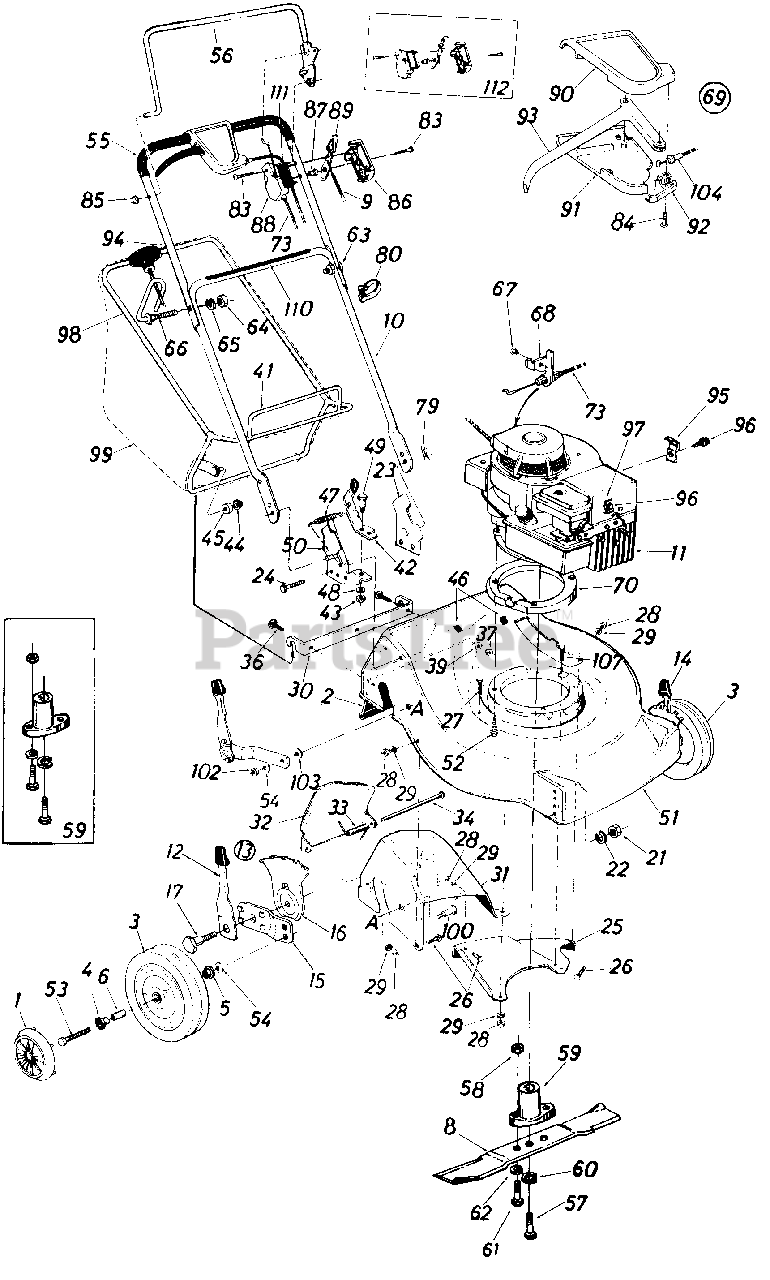

0358A - Grass Handler Walk-Behind Mower (1985) (J.C. Penney) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

Hub Cap

$

$

Not available

MTD 731-0124

Red

$

$

Not available

MTD 731-0254

Orange

$

$

Not available

MTD 731-0354

Black

$

$

Not available

MTD 731-0355

Gray

$

$

Not available

2

MTD 731-0664

Rear Flap Ass'y.

$

$

Not available

3

Front Wheel Ass'y

$

$

Not available

MTD 734-0843

Smooth

$

$

Not available

MTD 734-0894

Waffle Tread

$

$

Not available

MTD 734-0661

Twinline Tread

$

$

Not available

MTD 734-0845

Smooth

$

$

Not available

MTD 734-0645

Waffle Tread

$

$

Not available

MTD 734-0643

Twinline Tread

$

$

Not available

4

Bearing

$

$

Not available

5

Bearing

$

$

Not available

MTD 741-0262

Plastic Bearing

$7.99

$

Usually ships in 3-6 days

0

MTD 741-0267

3/8" Ball Bearing

$

$

Not available

MTD 741-0484

1/2" Ball Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

6

Spacer

Note: (Used w/Ball Brg. Only)

$

$

Not available

MTD 750-0434

Spacer

$6.49

$

Usually ships in 3-6 days

0

8

MTD 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

9

MTD 746-0472

Throttle Control Wire-58"
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

10

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 7

0

11

Engine

$

$

Not available

12

MTD 14832

Spring Lever Ass'y.
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

13

MTD 14578

Height Adj. Ass'y.-Comp.-R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

14

MTD 14579

Height Adj. Ass'y.-Comp.-L.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

15

MTD 15262

Pivot Bar
(Superseded to 15262B)

$13.99

$

Usually ships in 3-6 days

0

16

MTD 15261

Index Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

17

MTD 738-0507

Shld. Bolt .50" Dia. x .357
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

22

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

23

MTD 12297

Handle Bracket-L.H.

$

$

Not available

24

MTD 710-0776

Hex Self-Tap Screw 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

25

MTD 14014

Rear Baffle-L.H.

$

$

Currently unavailable

26

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

27

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

MTD 14012

Hitch Bracket

$

$

Not available

31

MTD 14235

Rear Chute Eaffle

$

$

Not available

32

MTD 13407

Chute Door

$

$

Not available

33

MTD 732-0346

Torsion Spring

$

$

Not available

34

MTD 738-0386

Hinge Pin

$

$

Not available

36

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

37

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0211

Flat Wash. .285" I.D.

$6.49

$

In Stock, Qty 8

0

41

MTD 14582

Catcher Lower Frame

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 14845

Lock Lever

$

$

Not available

43

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 726-0100

Push Cap

$3.99

$

In Stock, Qty 8

0

45

MTD 731-0430

Plastic Roller

$

$

Not available

46

MTD 731-0564

Plug

$

$

Not available

47

MTD 732-0357

Extension Spring
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

48

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0155

Shoulder Bolt
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

50

MTD 14592

Handle Bracket-R.H.

$

$

Currently unavailable

51

MTD 16116

22" Deck Ass'y.

$

$

Currently unavailable

52

MTD 710-0654

Hex Self-Tap Screw 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

53

Axle Bolt

$

$

Not available

MTD 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

MTD 710-0427

Axle Bolt
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0105

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

55

MTD 718-0145

Grip

$

$

Currently unavailable

56

MTD 14321

Control Handle

$

$

Not available

MTD 731-0609

Control Handle wlPlastic

$

$

Not available

57

MTD 710-0331

Hex Bolt 3/8-24 x 2.25"

$6.49

$

In Stock, Qty 7

0

58

MTD 712-0123

Hex Nut 5/16-24 Thread
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

59

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

60

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

61

MTD 710-0888

Hex Bolt 5/16-24 x 1.00"

$3.99

$

In Stock, Qty 11

0

62

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

63

MTD 710-0671

Carr. Bolt 5/16-18 x 1.38"

$

$

Not available

64

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0842

Rope Guide Bolt

$

$

Not available

67

MTD 728-0171

Pop Rivet

$

$

Not available

68

MTD 14924

Control Bracket

$

$

Not available

69

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

70

MTD 13773

Engine Mount Cover

$

$

Currently unavailable

MTD 710-0227

Hex AB-Tap Scr. #8 x .38"

$3.99

$

In Stock, Qty 20+

0

73

MTD 746-0477

Control Cable-43"
(Superseded to 946-0477A)

$

$

Not available

79

MTD 714-0104

Cotter Pin 5/16

$3.99

$

In Stock, Qty 20+

0

80

MTD 726-0192

Cable Tie

$

$

Not available

83

MTD 710-0796

Truss Mach. Scr. #12 x 1.5"

$5.49

$

In Stock, Qty 6

0

84

MTD 710-0841

Self-Tap Scr. #10 x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

85

MTD 726-0135

Cap Speed Nut

$6.49

$

In Stock, Qty 6

0

86

MTD 731-0523

Control Panel Half

$

$

Not available

87

MTD 731-0524

Control Disc Pin

$

$

Not available

88

MTD 731-0526

Clutch Panel Half

$

$

Not available

89

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

90

MTD 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

91

MTD 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

92

MTD 731-0619

Cable Mounting Cap

$

$

Not available

93

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

94

MTD 749-0437

Upper Handle

$

$

Currently unavailable

95

MTD 12894

Casing Clamp

$

$

Not available

96

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

97

MTD 751-0369

Casing Clamp

$

$

Not available

98

MTD 749-0278

Catcher Upper Frame

$

$

Not available

99

MTD 746-0171

Grass Bag (without Flip Top)

$

$

Currently unavailable

MTD 764-0170

Grass Bag (with Flip Top)

$

$

Not available

100

MTD 738-0430

Shoulder Bolt

$10.99

$

In Stock, Qty 5

0

102

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

103

MTD 736-0219

Belleville Washer
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

104

MTD 746-0463

Clutch Cable-50n

$

$

Not available

107

MTD 710-0642

Hex Self-Tap Screw 1/4-20 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

110

MTD 777-3455

Instruction Label-Handle

$

$

Not available

111

MTD 777-5168

Control Label-Throttle

$

$

Not available

112

MTD 753-0360

Control Housing Comp.

$

$

Not available

MTD 8362-000-5

Hardware Pack

$

$

Currently unavailable
