0358A - Grass Handler Walk-Behind Mower (1985) (J.C. Penney)

Walk-Behind Mower

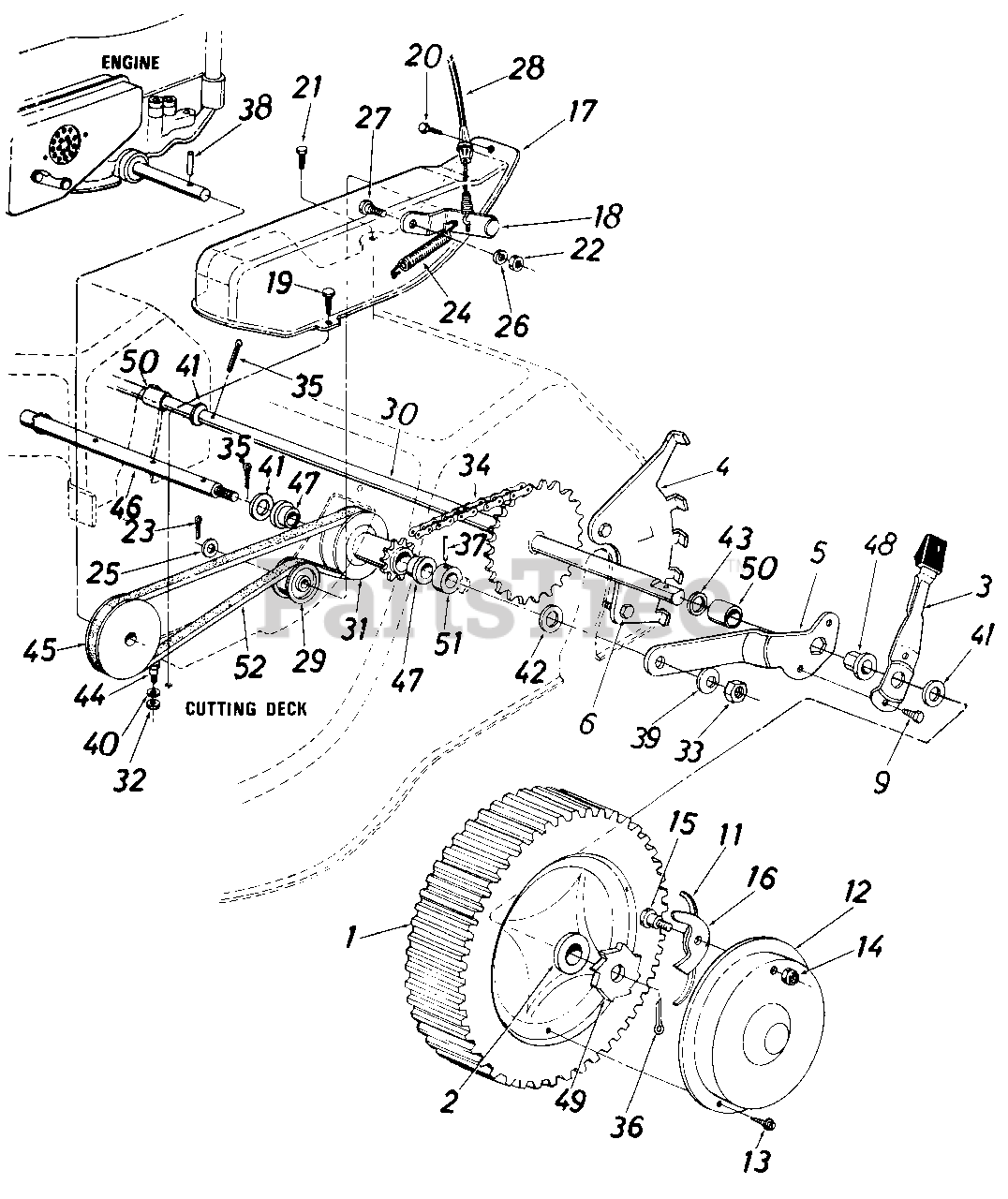

0358A - Grass Handler Walk-Behind Mower (1985) (J.C. Penney) > Parts Diagrams (2) > Parts

  • Title
734-1026

1

Wheel Assy. Comp. 8.0 x

Part# 734-1026

OEM Warranty Repair Part for MTD

Not available

741-0180

2

Flange Brg.-1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

732-0467

3

Spring Lever w/Knob

Part# 732-0467

OEM Warranty Repair Part for MTD

Not available

16097

4

Index Plate-L.H.

Part# 16097

OEM Warranty Repair Part for MTD

Not available

16098

Index Plate-R.H.

Part# 16098

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Currently unavailable

16099

5

Pivot Brkt.-L.H.

Part# 16099

OEM Warranty Repair Part for MTD

Not available

16100

Pivot Brkt.-R.H.

Part# 16100

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Not available

710-0892

6

Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg.

Part# 710-0892 (Superseded to 910-0892)

OEM Warranty Repair Part for MTD

Not available

710-0352

9

Hex B-Tap Scr. 1/4 x .38" Lg.

Part# 710-0352

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

10622

11

Nylon Spring

Part# 10622 (Superseded to 10622BP)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.52

10647

12

Hub Cap

Part# 10647

OEM Warranty Repair Part for MTD

Not available

710-0748

13

Pan Hd. Tap Scr. #12 x .50" Lg.

Part# 710-0748

OEM Warranty Repair Part for MTD

Not available

712-0324

14

Hex ins. L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

738-0137

15

Shld. Bolt .342" Dia. x .268

Part# 738-0137

OEM Warranty Repair Part for MTD

Not available

748-0188

16

Paw I

Part# 748-0188 (Superseded to 948-0188B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.15

12309

17

Belt Cover

Part# 12309

OEM Warranty Repair Part for MTD

Currently unavailable

13415

18

Idler Bracket Ass'y.

Part# 13415

OEM Warranty Repair Part for MTD

Not available

710-0599

19

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0456

20

Hex Drill i ng Scr. #10 x .50" Lg.

Part# 710-0456

OEM Warranty Repair Part for MTD

Not available

710-0642

21

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

Part# 710-0642

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.21

712-0287

22

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

714-0115

23

Cotter Pin 1/8" Dia. x 1.00" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

732-0357

24

Extension Spring .33" O.D. x 1.12" Lg.

Part# 732-0357 (Superseded to 932-0357A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.16

736-0160

25

Fl-Wash. .531" I.D. x .930"O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0329

26

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

738-0255

27

Shld. Bolt .375n Dia. x .181

Part# 738-0255 (Superseded to 938-0255)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.63

746-0463

28

Clutch Cable-50"

Part# 746-0463

OEM Warranty Repair Part for MTD

Not available

756-0360

29

Flat Idler-Plastic

Part# 756-0360

OEM Warranty Repair Part for MTD

Not available

13414

30

Rear Shaft Ass'y.

Part# 13414

OEM Warranty Repair Part for MTD

Not available

756-0191

31

Pulley w/9 Tooth Sprocket Ass'y.

Part# 756-0191

OEM Warranty Repair Part for MTD

Not available

712-0267

32

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

712-0342

33

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.27

713-0144

34

#48 Chain 1/2" Pitch x 31 Links

Part# 713-0144 (Superseded to 913-0144)

OEM Warranty Repair Part for MTD

Not available

713-0122

Master Link

Part# 713-0122

OEM Warranty Repair Part for MTD

Not available

714-0111

35

Cotter Pin 3/32" Dia. x 1.00" Lg.*

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.36

714-0115

36

Cotter Pin 1/8" Dia. x 1.00" Lg.*

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

715-0120

37

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.

Part# 715-0120

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

715-0144

38

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.

Part# 715-0144

OEM Warranty Repair Part for MTD

Not available

736-0105

39

Bell-Wash. .400" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0119

40

L-Wash. 5/16n I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0160

41

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0219

42

Bell-Wash. .400" I.D. x 1.13" O.D.

Part# 736-0219 (Superseded to 936-0219)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0326

43

Fl-Wash. .510" I.D. x 1.0" O.D.

Part# 736-0326 (Superseded to 936-0326)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

738-0141

44

Shld. Bolt .437" Dia. x .350" Lg.

Part# 738-0141 (Superseded to 938-0141)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.40

756-0384

45

Engine Pulley

Part# 756-0384

OEM Warranty Repair Part for MTD

Not available

738-0471

46

Pulley Shaft-10.0" Lg.

Part# 738-0471

OEM Warranty Repair Part for MTD

Not available

741-0248

47

Flange Brg. .506" I.D. Plastic

Part# 741-0248

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.40

741-0324

48

Hex Flange Brg. x .506" I.D. Plastic

Part# 741-0324 (Superseded to 741-0324A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.61

748-0187

49

Ratchet

Part# 748-0187

OEM Warranty Repair Part for MTD

Not available

750-0190

50

Spacer.765" I.D. x .89" O.D. x.960" Lg.

Part# 750-0190

OEM Warranty Repair Part for MTD

Not available

750-0387

51

Spacer. 505" I.D. x .88" O.D. x.44" Lg.

Part# 750-0387

OEM Warranty Repair Part for MTD

Not available

754-0252

52

"V"-Belt 1/2" x 33" Lg.

Part# 754-0252 (Superseded to 954-0252)

OEM Warranty Repair Part for MTD

Not available
