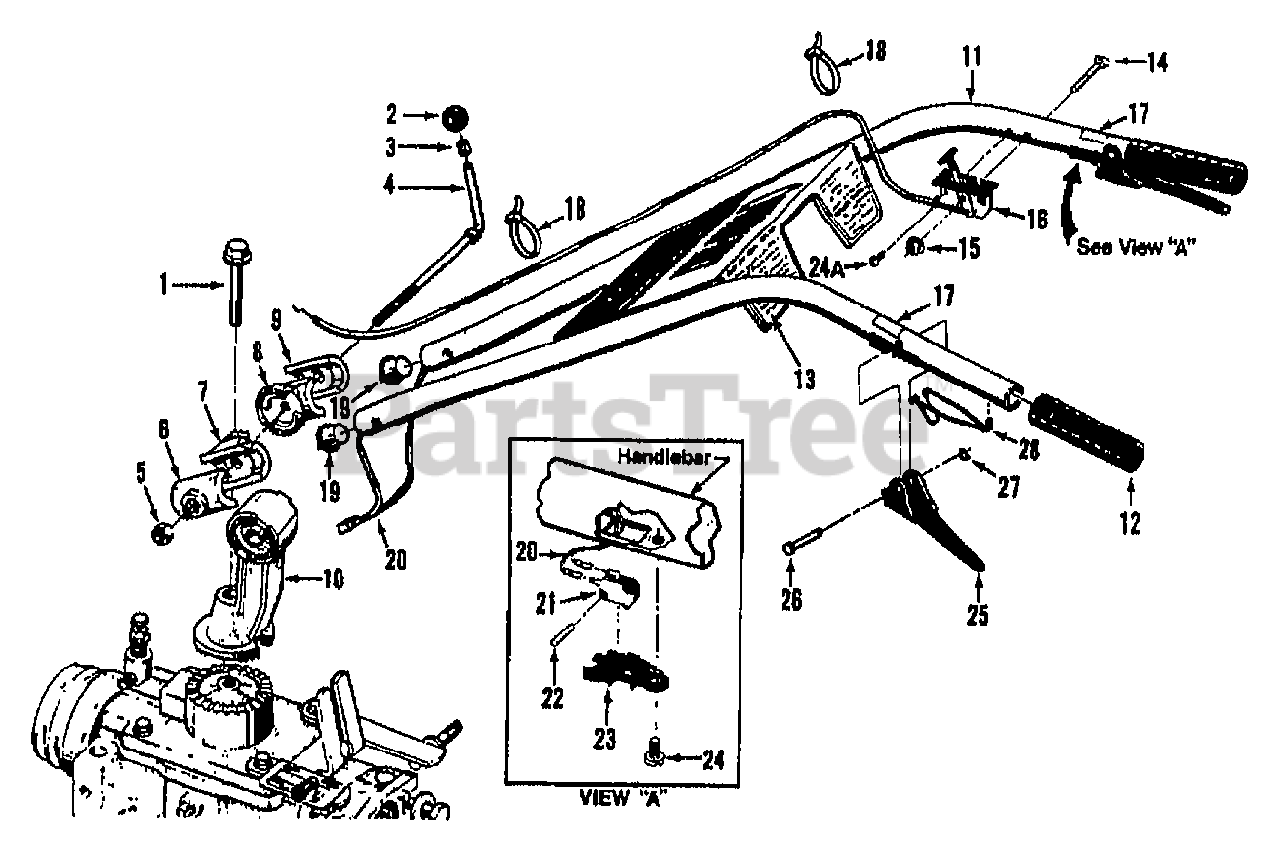

0360 - Troy-Bilt Horse Silver Rear-Tine Tiller HANDLE BAR ASSEMBLY Parts Diagram

Horse Silver Rear-Tine Tiller

HANDLE BAR ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 9548

BOLT 1/2-13X3.5 FH GR5
(Superseded to GW-9548)

$14.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9119

KNOB-CONTROL (INCL. 3)
(Superseded to GW-9119)

$11.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1900852

STUD-H/BAR BLACK (INCL. # 2,3, & 5)
(Superseded to GW-1881)

$62.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9803

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

6

MTD 1900854004

CLAMP-H/BAR LH BLACK

$

$

Not available

7

MTD 1900856004

RATCHET-H/BAR LH BLK

$

$

Not available

8

MTD 1900857004

RATCHET-H/BAR RH BLK

$

$

Not available

9

MTD 1900855004

CLAMP-H/BAR RH BLACK

$

$

Not available

10

Troy-Bilt 1900858004

BASE-H/BAR BLACK
(Superseded to 1900858010)

$125.99

$

Usually ships in 3-6 days

0

11

MTD 1900850

ASSM-H/BAR BLACK (INCL. 2 EA. #12,17, & 28 & 1 #13)

$

$

Not available

12

Troy-Bilt 9125

GRIP-H/BAR SMOOTH
(Superseded to 720-04083)

$14.99

$

In Stock, only 1 left!

0

13

MTD 1900795

DECAL-CONTROL PANEL

$

$

Not available

14

Troy-Bilt 9547

BOLT-CH 1/4-20X2.00 ZP
(Superseded to GW-9547)

$

$

Not available

15

Troy-Bilt GW-9844

NUT-HF/LK 1/4-20 ZP
(Superseded to 1186389)

$3.49

$

Usually ships in 3-6 days

0

16

MTD 9650

CABLE-THROTTLE 8HP OPC

$

$

Not available

17

MTD 1900763

DECAL-FWD INTERLOCK

$

$

Not available

18

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 9219

RETAINER-HARNESS H/B OPC
(Superseded to GW-9219)

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 2551

HARNESS-WIRE OPC HORSE
(Superseded to GW-2551)

$69.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 9250

SWITCH-H/B OPC
(Superseded to 725-05005)

$30.99

$

In Stock, only 2 left!

0

22

MTD 9385

PIN-LK .11X.58 HORSE OPC

$

$

Not available

23

Troy-Bilt 2543

HOUSING-SWITCH OPC
(Superseded to 625-04097)

$72.99

$

Usually ships in 3-6 days

0

24

MTD 90039

SCR-HW M10-24X.5 STH ZP

$

$

Not available

24A

0

THIS REF NO. NOT USED WITH KOHLER ENGINE

$

$

Not available

25

Troy-Bilt 2546

LEVER-HORSE OPC
(Superseded to 786-04003-0638)

$28.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 9199

PIN-PIVOT OPC LEVER
(Superseded to GW-9199)

$6.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 9514

RING-KLIP 5304-25
(Superseded to GW-9514)

$6.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 9387

SPRING-H/B LEVER
(Superseded to 732-04864A)

$6.99

$

In Stock, only 2 left!

0
