03627300 - Gravely Hydro-Gear Transmission Transmission - 03627300 Parts Diagram

Hydro-Gear Transmission

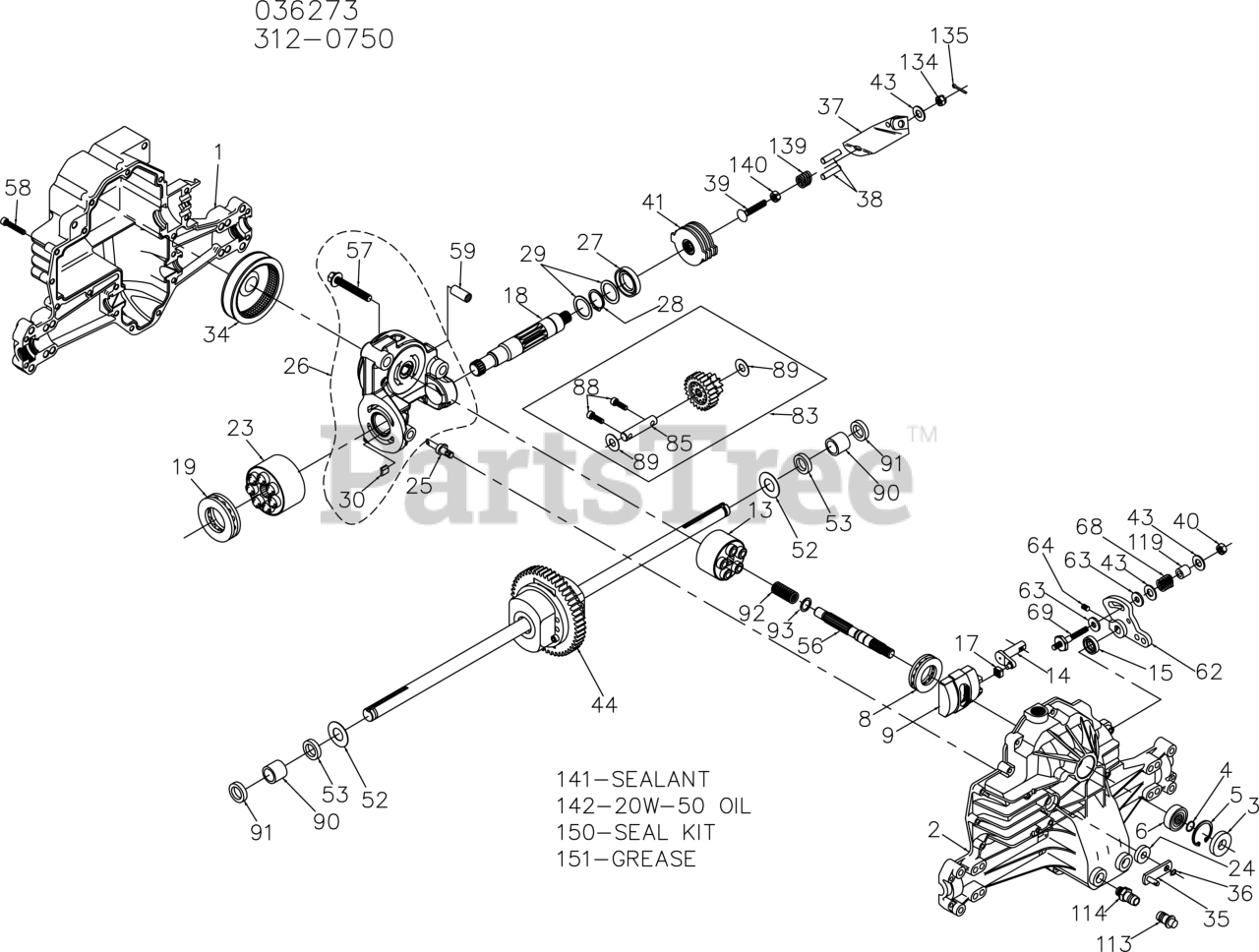

Transmission - 03627300 Parts Diagram

  • Title

1

Gravely 21543982

HSG, 0650 LOWER

$

$

Not available

2

Gravely 21543884

KIT, HSG UPPER

$

$

Not available

3

Gravely 21543998

SEAL, LIP 15X35X7

$5.49

$

Usually ships in 4-12 days

0

4

Gravely 08613300

RING, WIRE RETAINING

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 08608800

RING. RETAINING

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 08613200

BEARING, SHAFT BALL

$

$

Not available

8

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 08609000

SWASHPLATE. VARIABLE

$

$

Not available

13

Gravely 21543889

KIT, 10 CC BLOCK

$101.99

$

Usually ships in 4-12 days

0

14

Gravely 21543963

ARM, TRUNNION 10 CC

$

$

Not available

15

Gravely 21543997

SEAL, LIP 12X25X7

$

$

Not available

17

Gravely 08610700

GUIDE. SLOT

$

$

Not available

18

Gravely 21543746

SHAFT, MOTOR 1O T

$

$

Not available

19

Gravely 21543747

BRG, THRUST BALL 42X68X16

$

$

Not available

23

ASSEMBLY BLOCK

Note: HG 70082

$

$

Not available

24

Gravely 08613800

SEAL, LIP

$4.49

$

Usually ships in 4-12 days

0

25

Gravely 08609800

ACTUATOR, BYPASS

$

$

Not available

26

Gravely 21543883

KIT, C-SECTION

$

$

Not available

27

Gravely 21543716

SEAL, LIP 26X42X8

$4.49

$

Usually ships in 4-12 days

0

28

Gravely 21543720

RETAINING RING

$

$

Not available

29

Gravely 21543711

WASHER 1.0X1.37X.04

$

$

Not available

30

Gravely 21543918

KIT, BYPASS PLATE

$

$

Not available

34

Gravely 21543779

FILTER

$71.99

$

Usually ships in 4-12 days

0

35

Gravely 08611100

ARM. BYPASS

$

$

Not available

36

RING, RETAINING

Note: HG 44870

$

$

Not available

37

Gravely 21543700

ARM, BRAKE

$

$

Not available

38

Gravely 21543714

PIN, BRK .3X1.25 PLATED

$

$

Not available

39

Gravely 21543739

RHCS 5/16-24X2 SQ NECK PT

$

$

Not available

40

Gravely 21543740

NUT, HEX 5/16-24 NYLON

$

$

Not available

41

Gravely 21543882

KIT, SRVC BRAKE ROTOR/STA

$

$

Not available

43

WASHER

Note: HG 44130

$

$

Not available

44

Gravely 21543880

KIT, SRVC DIFF

$

$

Not available

52

Gravely 21543727

WASHER .75X1.5X.03

$

$

Not available

53

Gravely 21543717

SEAL, LIP .75X1.25X.25

$

$

Not available

56

Gravely 21543719

SHAFT, INPUT

$90.99

$

Usually ships in 4-12 days

0

57

Gravely 21543721

HFHCS 3/8-24X2.5 (PATCH)

$

$

Not available

58

Gravely 21543713

THCS-STAP 1/4-20X1.4

$3.49

$

Usually ships in 4-12 days

0

59

Gravely 21543718

PIN-HOLLOW .39X.5X1.

$

$

Not available

62

Gravely 21543730

ARM, CNTRL PM

$

$

Not available

63

Gravely 08613000

PACK, FRICTION

$

$

Not available

64

Gravely 21543722

SCREW, SET 5/16-24 60

$

$

Not available

68

Gravely 21543733

SPRING, HELICAL COMP

$

$

Not available

69

Gravely 21543735

STUD, DB END 5/16-24X2.5

$

$

Not available

83

Gravely 21543881

KIT, SRVC JACK SHAFT/PINN

$

$

Not available

85

Gravely 21543748

SHAFT, JACK

$

$

Not available

88

Gravely 21543728

SHCS M6X20 (PATCH)

Note: HG 50154

$

$

Not available

89

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

90

Gravely 21543723

BUSHING .75X1.0X.84

$15.99

$

Usually ships in 4-12 days

0

91

Gravely 21543772

SEAL, LIP .75X1X.158

$

$

Not available

92

Gravely 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

93

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

113

Gravely 07026400

CAP-VENT .50

$14.99

$

In Stock, Qty 6

0

114

Gravely 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 4 left!

0

119

Gravely 21543734

SPACER .32X.59X.50

$

$

Not available

134

NUT, CASTLE 5/16-24

Note: HG 44142

$

$

Not available

135

PIN, COTTER 3/32 X 3/4

Note: HG 44101

$

$

Not available

139

Gravely 21543745

SPRING

$

$

Not available

140

Gravely 21543732

NUT, HEX 5/16-24

$

$

Not available

141

Gravely 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

142

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional Oil Approximatley 81 oz

$15.99

$

Usually ships in 4-12 days

0

142

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Reccomended Oil Approximatley 81 oz

$14.99

$

In Stock, Qty 7

0

150

Gravely 21543887

KIT, SEAL

$

$

Not available

151

Gravely 21543744

GREASE TUBE

$

$

Not available
