04-16TB01 - Toro 15" Tiller (1987) PARTS LIST FOR WALK BEHIND TILLER Parts Diagram

15" Tiller

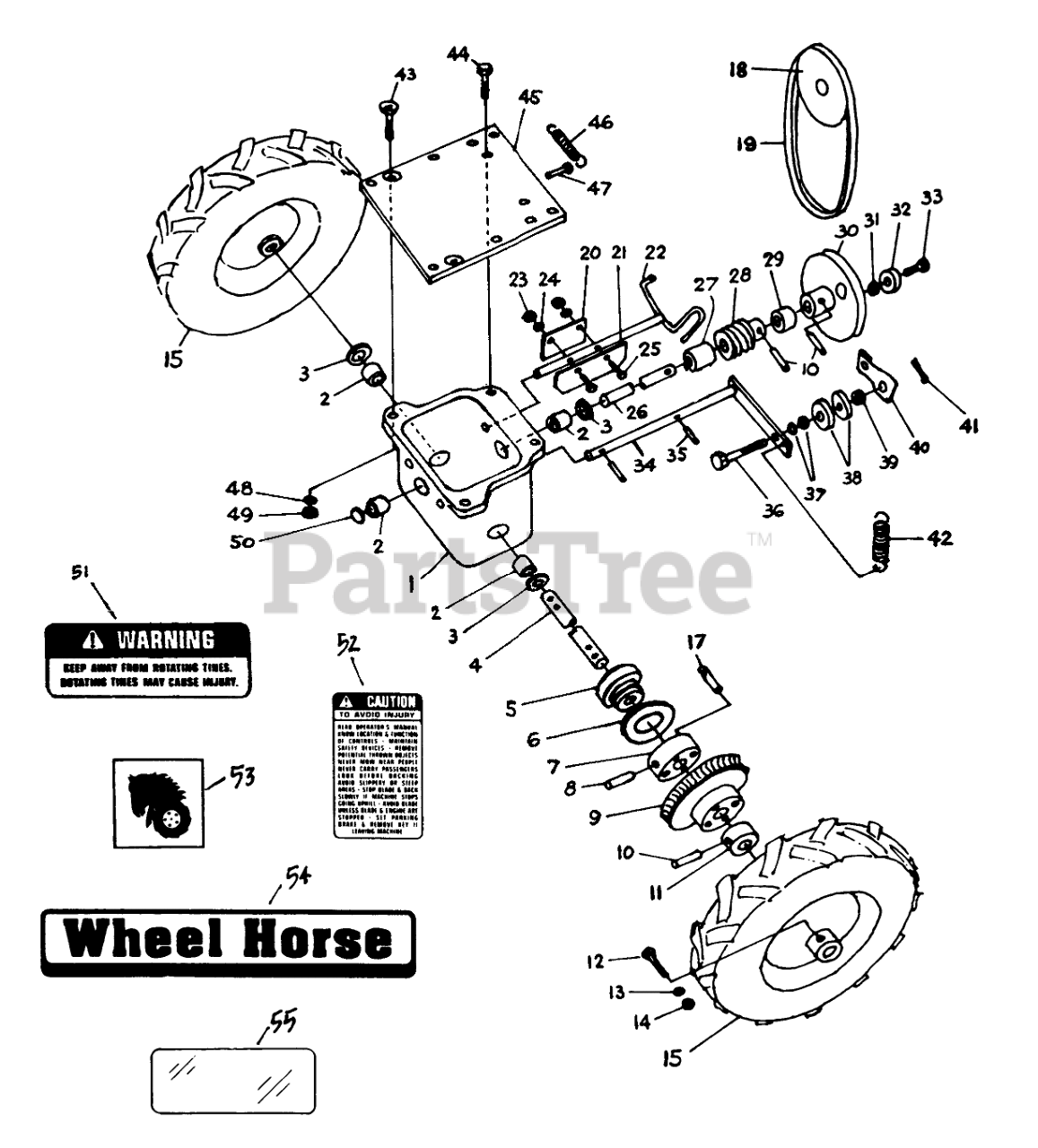

PARTS LIST FOR WALK BEHIND TILLER Parts Diagram

  • Title

1

Toro 573

Gear Box

$

$

Not available

2

Toro 822

Bearing

$

$

Not available

3

Toro 823

Seal

$

$

Not available

4

Toro 578

Wheel Shaft
(Superseded to 578C)

$

$

Not available

5

Toro 583

Clutch Sleeve

$

$

Not available

6

Toro 571

Clutch Ring

$

$

Not available

7

Toro 582

Clutch Collar

$

$

Not available

8

Toro 933217

SPIROL ROLL PIN

$

$

Not available

9

Toro 580

Worm Gear

$

$

Not available

10

Toro 933213

SPIROL PIN

$

$

Not available

11

Toro 584

Gear Collar

$

$

Not available

12

Toro 908010

HEX HD CAP SCREW -4

$0.99

$

In Stock, Qty 7

0

13

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

14

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

15

Toro 810

Wheel

$

$

Not available

17

Toro 587

Clutch Pin

$

$

Not available

18

Toro 803

Engine Pulley

$

$

Not available

19

Toro 806

BELT-DRIVE

$

$

Not available

20

Toro 590

CLUTCH IN ACTUATOR

$

$

Not available

21

Toro 589

Clutch "Out" Actuator

$

$

Not available

22

Toro 591

Gear Clutch Lever

$

$

Not available

23

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

24

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

25

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

26

Toro 579

Worm Shaft

$

$

Not available

27

Toro 574

Long Worm Spacer

$

$

Not available

28

Toro 581

Worm

$

$

Not available

29

Toro 575

Short Worm Spacer

$

$

Not available

30

Toro 585

Pulley

$

$

Not available

31

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

32

Toro 804

BEARING-ECCENTRIC

$

$

Not available

33

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

34

Toro 592

Idler Lever

$

$

Not available

35

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

36

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

37

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

38

Toro 814

Idler Wheel

$

$

Not available

39

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 2 left!

0

40

Toro 597

Idler Link

$

$

Not available

41

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

42

Toro 808

SPRING

$

$

Not available

43

Toro 908838

Flathead Screw 5/16-18 x 1 1/4

$

$

Not available

44

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

45

Toro 586

Top Plate

$

$

Not available

46

Toro 807

Tension Spring 3/8 x 2 1/2 x .047

$

$

Not available

47

Toro 825

Groove Pin 1/4 x 1

$

$

Not available

48

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

49

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

50

Toro 824

PLUG-WELCH

$

$

Not available

51

Toro 111191

Decal-Warning
(Superseded to 92-1547)

$14.99

$

In Stock, only 2 left!

0

52

Toro 113145

Decal-Caution

$

$

Not available

53

Toro 251053

DECAL-LOGO

$24.99

$

Usually ships in 3-6 days

0

54

Toro 111870

5-Speed Decal

$

$

Not available

55

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0
