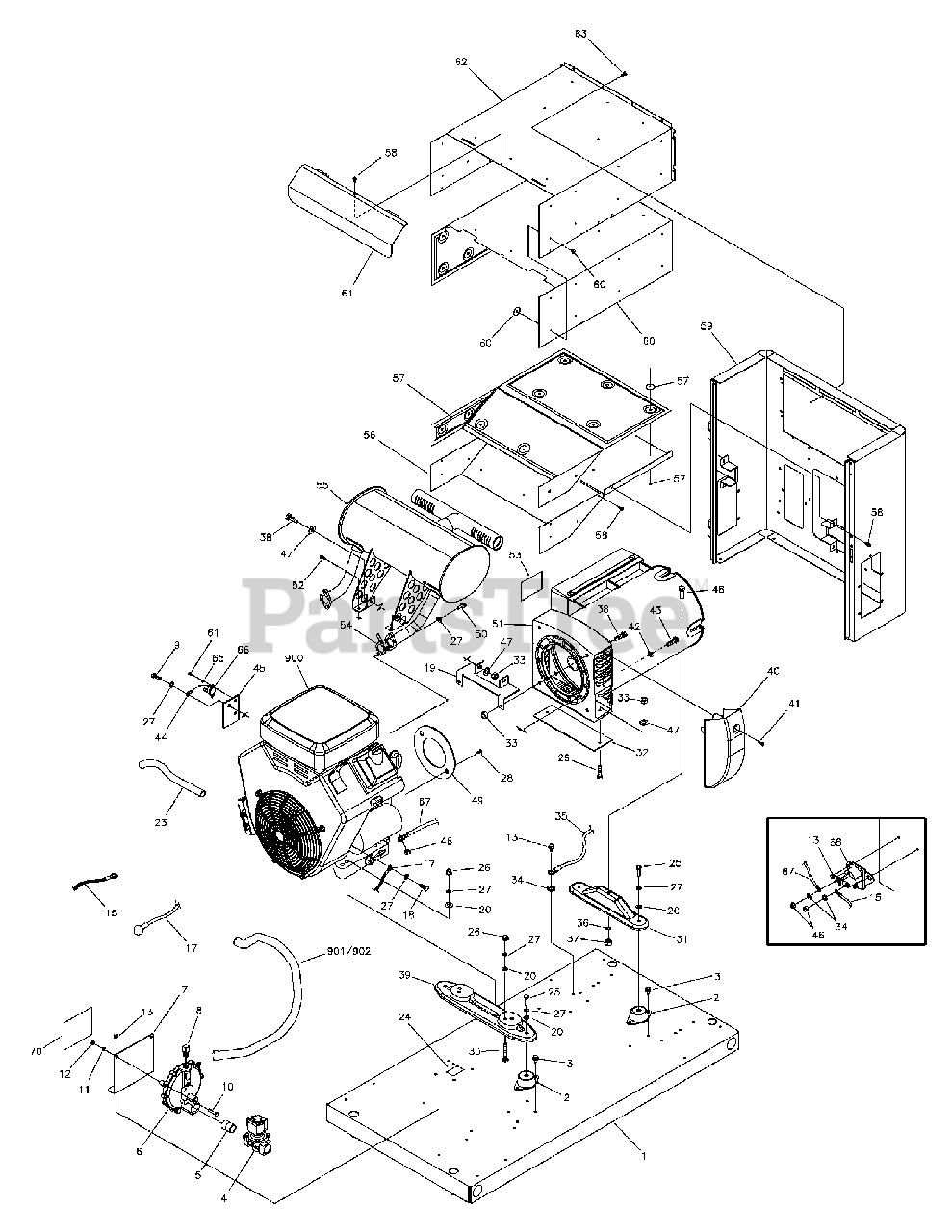

040202-0 - Briggs & Stratton 12kW Home Standby Generator Main Unit (202912) Parts Diagram

12kW Home Standby Generator

Main Unit (202912) Parts Diagram

  • Title

1

Briggs & Stratton H203030GS

BASE

$465.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 198899GS

MOUNT, Vibration

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING

$20.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR, NG / LPG

$232.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 195936GS

BRACKET
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING

$9.99

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex Head, M8 - 1-1/4 x 12

$

$

Not available

10

-----

* CAPSCREW, Hex Head, M6 - 1 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6 - 1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 185939VGS

WIRE

$33.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 198593BGS

WIRE

$30.99

$

Usually ships in 2-12 days

0

18

-----

* CAPSCREW, Hex Head, M8 - 1-1/4 x 16

$

$

Not available

19

Briggs & Stratton 201824GS

BRACKET

$11.99

$

Usually ships in 2-12 days

0

20

-----

* WASHER, Flat, 5/16 - M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

26

-----

* NUT, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

28

-----

* CAPSCREW, Hex Head, SEMS, 5/16-24 x 3/4

$

$

Not available

29

-----

* CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

30

-----

* CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$

$

Not available

31

Briggs & Stratton B198897GS

SUPPORT, Alternator

$36.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200013GS

PLATE, Cover

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194005GS

NUT

$2.99

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof, EXT M6 - 1/4

$

$

Not available

35

Briggs & Stratton 186790HGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, M10

$

$

Not available

37

-----

* NUT, Hex, M10 - 1-1/2

$

$

Not available

38

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT, Alternator

$41.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 201817GS

DUCT

$58.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 199999GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

44

Briggs & Stratton 186790CGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 186206GS

PLATE, Temp Switch

$6.49

$

Usually ships in 2-12 days

0

46

-----

* NUT, Hex, 1/4-20

$

$

Not available

47

-----

* WASHER, Flat, M6 - 1/4

$

$

Not available

48

-----

* CAPSCREW, Hex Head, M10 - 1-1/2

$

$

Not available

49

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, only 3 left!

0

51

-----

ALTERNATOR ASSEMBLY

$

$

Not available

52

Briggs & Stratton 40976GS

CAPSCREW, M8 - 1-1/4 x 20

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 193506GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 806425

GASKET

$5.49

$

In Stock, only 3 left!

0

55

Briggs & Stratton 198758GS

MUFFLER

$464.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

BASE

$201.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

INSULATION

$224.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 202918GS

BULKHEAD, Alternator

$543.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

INSULATION

$252.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR

$46.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

BOX, Muffler Top

$236.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

64

-----

* SCREW, Phillips Head, 4-40 x 0.19

$

$

Not available

65

-----

* WASHER, Lock, #4

$

$

Not available

66

Briggs & Stratton 186205GS

SWITCH, Temp

$107.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 198593CGS

WIRE

$30.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 12

0

70

Briggs & Stratton 205397GS

DECAL, Fuel Requirements

$16.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

901

Briggs & Stratton 843644

FUEL HOSE
(Superseded to 842185)

$172.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 843438

CLAMP

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202894GS

KIT, Manual ACC

Note: (Not Illustrated)

$134.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B5478GS

PAINT, Touch Up, Tan

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP, Funnel

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841359

FILTER, A/C Cartridge

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 272490S

FILTER, Pre Cleaner

Note: (Not Illustrated)

$5.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 492932B

FILTER, Oil

Note: (Not Illustrated)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 202295GS

HOSE, Flex NG / LPG

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198866GS

KIT, LED Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206609GS

DECAL, Warning, Explosion

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203544GS

KIT, Decals

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 199473GS

PAINT, Spray, Tan

Note: (Optional Accessory)

$24.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 6035

KIT, Maintenance

Note: (Optional Accessory)

$105.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6030

KIT, Cold Weather (Includes Battery and Oil Warmers)

Note: (Optional Accessory)

$

$

Not available
