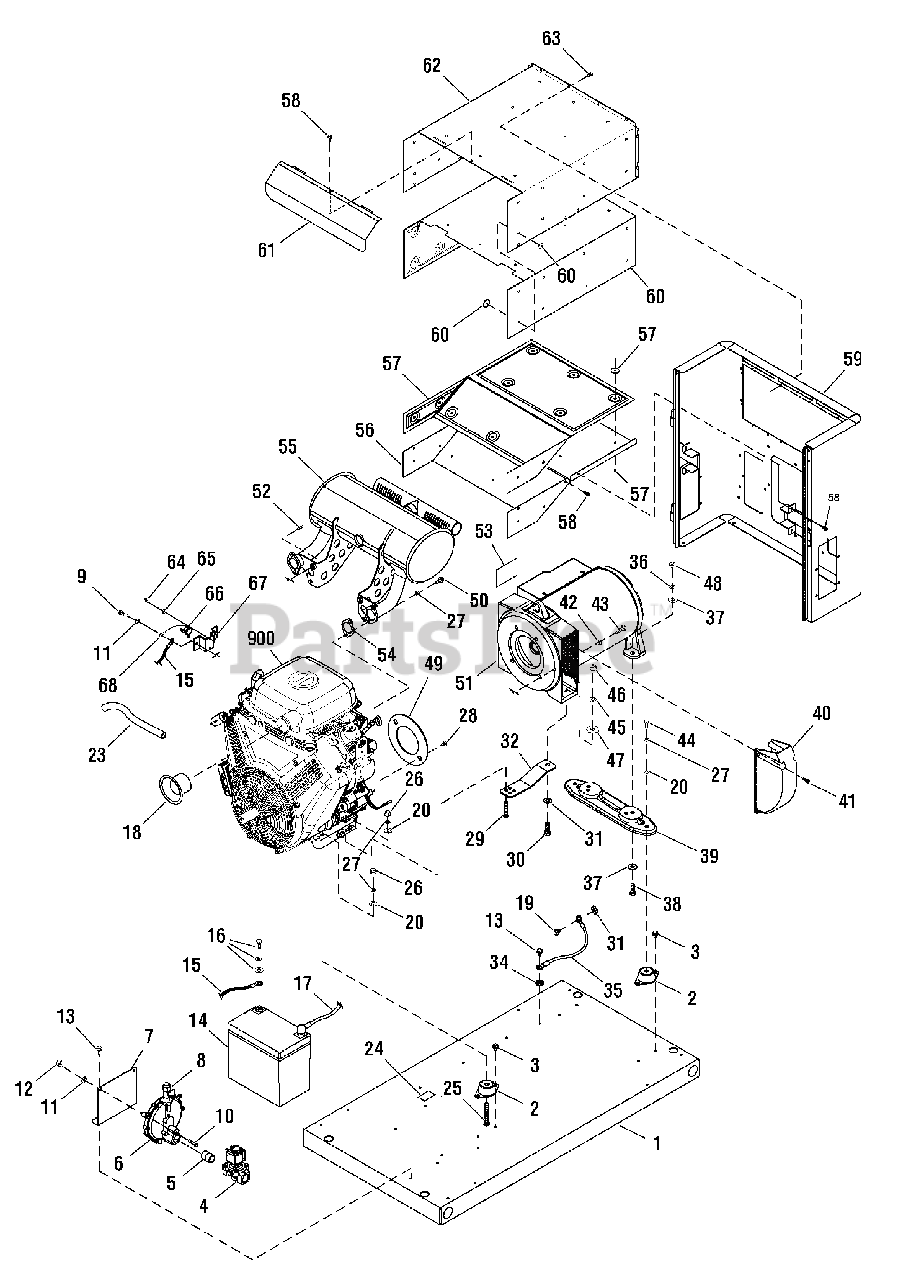

040210-0 - Briggs & Stratton 15kW Home Standby Generator Main Unit (201277) Parts Diagram

15kW Home Standby Generator

Main Unit (201277) Parts Diagram

  • Title

1

Briggs & Stratton U203030GS

BASE, Mounting
(Superseded to U313049GS)

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

MOUNT, Vibration

$64.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

SCREW, Hex Head, Trilobular 5/16-18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING, Coupling

$20.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR

$232.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 195936GS

BRACKET, Mounting Solenoid
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 842184

ASSEMBLY, Tee

$172.99

$

Usually ships in 2-12 days

0

9

-----

*CAPSCREW, Hex Head, M6-1 x 16

$

$

Not available

10

-----

*CAPSCREW, Hex Head, M6-1 x 30

$

$

Not available

11

-----

*WASHER, Lock, 1/4

$

$

Not available

12

-----

*NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

SCREW, Hex Head, Trilobular, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 194818GS

BATTERY

$255.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 185939RGS

WIRE-A, Black

$18.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198913GS

KIT, Battery Hardware

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 198593AGS

WIRE-A, Red

$35.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194813GS

TUBE, Air Cleaner

$14.99

$

In Stock, only 1 left!

0

19

-----

*CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

20

-----

*WASHER, Flat, 5/16 - M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

-----

*CAPSCREW, Hex Head, Full Thread, 5/16-18 x 2-1/2

$

$

Not available

26

-----

*NUT, 5/16-18

$

$

Not available

27

-----

*WASHER, Lock, 5/16 - M8

$

$

Not available

28

-----

*CAPSCREW, Hex Head, Sems, 5/16-24 x 3/4

$

$

Not available

29

-----

*CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

30

-----

*CAPSCREW, Hex Head, M12 - 1.75 x 35

$

$

Not available

31

-----

*WASHER, M12

$

$

Not available

32

Briggs & Stratton B194685GS

SUPPORT, Engint / Alternator, Black

$33.99

$

Usually ships in 2-12 days

0

34

-----

*WASHER, Shakeproof Ext. M6-1/4

$

$

Not available

35

Briggs & Stratton 186790GGS

WIRE, Ground

$17.99

$

Usually ships in 2-12 days

0

36

-----

*WASHER, Lock, M10

$

$

Not available

37

-----

*WASHER, Flat, M10

$

$

Not available

38

-----

*CAPSCREW, Hex Head, M10 - 1-1/2 x 30

$

$

Not available

39

Briggs & Stratton B196639GS

BRACKET, Mounting Alternator, Black
(Superseded to B198896GS)

$41.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 196387GS

DUCT, Air

$15.99

$

Usually ships in 2-12 days

0

41

-----

*SCREW, Phillips Head, M5-0.8 x 20

$

$

Not available

42

-----

*WASHER, Lock, 3/8

$

$

Not available

43

-----

*CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

44

-----

*CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

45

-----

*WASHER, Lock, M12

$

$

Not available

46

-----

*NUT, Hex, M12 - 1-3/4

$

$

Not available

47

-----

*WASHER, Flat, M12

$

$

Not available

48

-----

*NUT, M10 - 1-1/2

$

$

Not available

49

Briggs & Stratton B4260GS

DISK, Engine Air

$48.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 809743

SCREW
(Superseded to 846149)

$4.49

$

In Stock, only 3 left!

0

51

-----

ALTERNATOR ASSEMBLY

$

$

Not available

52

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, only 3 left!

0

53

Briggs & Stratton 193506GS

DECAL, Caution Hot Surface

$7.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 809872

GASKET

$5.49

$

In Stock, Qty 20+

0

55

Briggs & Stratton 197164GS

MUFFLER

$464.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

BASE, Muffler Box

$201.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

KIT, Insulation, Muffler Base

$224.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 201282GS

ASSEMBLY, Bulkhead, Alternator End w/Insulation

$418.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

KIT, Insulation, Muffler Box

$252.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR, Muffler Box

$46.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

BOX, Muffler Top

$236.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW. 10-32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

64

-----

*SCREW, Phillips Head, 4-40 x 0.19

$

$

Not available

65

-----

*WASHER, Lock, #4

$

$

Not available

66

Briggs & Stratton 186205GS

SWITCH, Oil Temp

$107.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 194699GS

PLATE, Switch Oil Temp
(Superseded to 313561GS)

$54.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 186790CGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 205397GS

DECAL, Requirements, Fuel

$16.99

$

Usually ships in 2-12 days

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 199327GS

MANUAL, Install

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194689GS

MANUAL, Operator’s

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277810TRI

MANUAL, Engine

Note: (Not Shown)

$

$

Currently unavailable

--

Briggs & Stratton 201275GS

KIT, Manual/Accessory HGS

Note: (Not Shown)

$232.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198810GS

PAINT, Touchup, Gray 1/2 oz Bottle

Note: (Not Shown)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touchup, Silver 1/2 oz Bottle

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP, Funnel Oil Bottle

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex

Note: (Not Shown)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

PLATE, Cover
(Superseded to 313326GS)

Note: (Not Shown)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199356GS

KIT, Decals, Service

Note: (Not Shown)

$29.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841856

FILTER, Air Cartridge

Note: (Not Shown)

$27.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 692520

FILTER, Pre-Cleaner

Note: (Not Shown)

$6.49

$

In Stock, only 4 left!

0

--

Briggs & Stratton 842921

FILTER, Oil

Note: (Not Shown)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 199475GS

PAINT, Touchup, Spray, Silver, 12oz

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Touchup, Spray, Gray, 12oz

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6030

KIT, Cold Weather (Includes Battery and Oil Warmers)

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 6036

KIT, Maintenance
(Superseded to 6872)

Note: (Optional Accessory)
