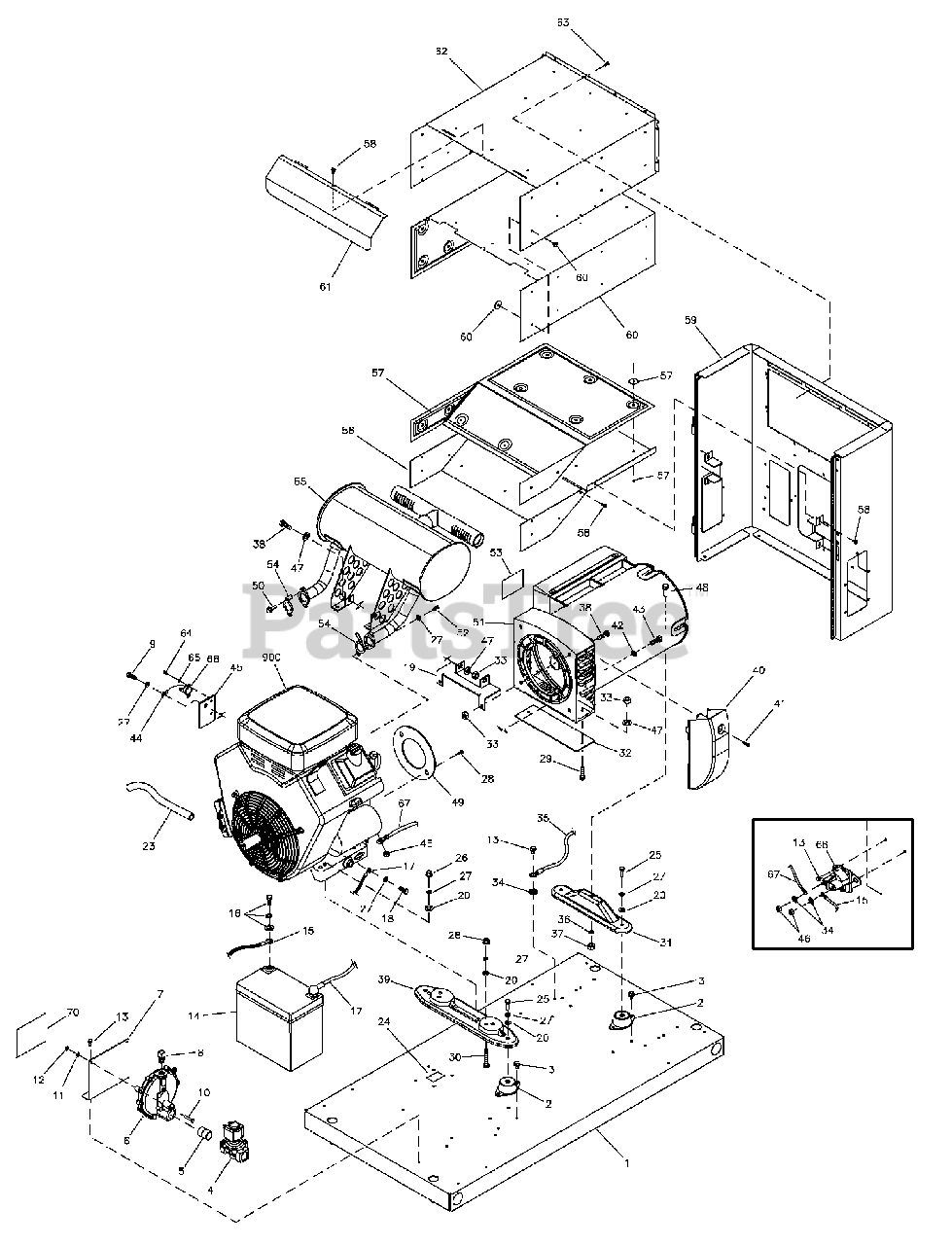

040212-0 - Briggs & Stratton 12kW Home Standby Generator Main Unit (199013) Parts Diagram

12kW Home Standby Generator

Main Unit (199013) Parts Diagram

  • Title

1

Briggs & Stratton T203030GS

BASE

$297.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 198899GS

MOUNT, Vibration

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

CAPSCREW, Hex Head, Trilobular 5/16 - 18 x 1/2

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$411.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING, Coupling

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR

$247.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 195936GS

BRACKET, Mounting Solenoid
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING, 1/2 Flare 3/8 - 18 NPT

$10.99

$

In Stock, only 1 left!

0

9

-----

* CAPSCREW, Hex Head,, M8 - 1.25 x 12

$

$

Not available

10

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

14

Briggs & Stratton 194818GS

BATTERY

$

$

Not available

15

Briggs & Stratton 185939VGS

WIRE

$33.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198913GS

KIT, Battery Hardware

$

$

Not available

17

Briggs & Stratton 198593BGS

WIRE

$32.99

$

Usually ships in 2-12 days

0

18

-----

* CAPSCREW, Hex Head, M8 1-1/4 x 16

$

$

Not available

19

Briggs & Stratton 201824GS

BRACKET, Muffler Mounting Base

$11.99

$

Usually ships in 2-12 days

0

20

-----

* WASHER, Flat 5/16 - M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$21.99

$

In Stock, Qty 5

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 5/16 - 18 x 1

$

$

Not available

26

-----

* Nut, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

28

-----

* CAPSCREW, Hex Head, 5/16-24 x 3/4 Sems

$

$

Not available

29

-----

* CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

30

-----

* CAPCSREW, Hex Head, 5/16-18 x 1-3/4

$

$

Not available

31

Briggs & Stratton 198897GS

BRACKET, Alternator Support

$38.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200013GS

PLATE, Blocking Air, Alternator

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194005GS

NUT, Flange, Nylock, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof Ext. M6-1/4

$

$

Not available

35

Briggs & Stratton 186790HGS

WIRE

$18.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, M10

$

$

Not available

37

-----

* NUT, Hex, M10 - 1-1/2

$

$

Not available

38

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

39

Briggs & Stratton 198896GS

BRACKET, Engine Mounting

$206.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 201817GS

DUCT

$58.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 199999GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

44

Briggs & Stratton 186790CGS

WIRE

$

$

Not available

45

Briggs & Stratton 186206GS

PLATE, Switch Oil Temp

$

$

Not available

46

-----

* NUT, Hex 1/4-20

$

$

Not available

47

-----

* WASHER, Flat, M6- 1/4

$

$

Not available

48

-----

* CAPSCREW, Hex Head, M10 - 1.5

$

$

Not available

49

Briggs & Stratton B4260GS

DISK, Engine Air

$

$

Not available

50

Briggs & Stratton 805247

SCREW
(Superseded to 692062)

$3.99

$

In Stock, only 4 left!

0

51

-----

ALTERNATOR ASSEMBLY

$

$

Not available

52

Briggs & Stratton 40976GS

CAPSCREW, M8 - 1.25 x 20

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 193506GS

DECAL, Caution Hot Surface

$

$

Not available

54

Briggs & Stratton 806425

GASKET

$5.49

$

In Stock, Qty 16

0

55

Briggs & Stratton 198758GS

MUFFLER

$476.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

BASE, Muffler Box

$214.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

KIT, Insulation, Muffler Base

$239.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE, 10 - 24 x 1/2

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 201281GS

BULKHEAD ASSEMBLY

$594.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

KIT, Insulation, Muffler Box

$268.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR, Muffler Box

$49.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

BOX, Muffler Top

$252.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW, 10 - 32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

64

-----

* SCREW, Phillips Head, 4-40 x 0.19

$

$

Not available

65

-----

* WASHER, Lock #4

$

$

Not available

66

Briggs & Stratton 186205GS

SWITCHwitch, Oil Temp
(Superseded to 204426GS)

$40.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 198593CGS

WIRE

$32.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 691656

SOLENOID / BRACKET

$33.99

$

In Stock, Qty 20+

0

70

Briggs & Stratton 205397GS

DECAL, Requirements, Fuel

$17.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 199016GS

KIT, Manual/Accessory HGS

Note: (Not Illustrated)

$232.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touchup, Silver 1/2 oz Bottle

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP, Funnel Oil Bottle

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

PLATE, Cover
(Superseded to 313326GS)

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198918GS

KIT, Decals, Service

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 272490GS

FILTER, Precleaner

Note: (Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 841359

FILTER, AC Cartridge

Note: (Not Illustrated)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 492932B

FILTER, Oil

Note: (Not Illustrated)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 199475GS

PAINT, Touchup, Spray, Sliver, 12oz

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6030

KIT, Cold Weather

Note: (Optional Accessory) (Includes Battery And Oil Warmers)

$

$

Not available

Briggs & Stratton 6035

KIT, Maintenance

Note: (Optional Accessory)

$105.99

$

Usually ships in 2-12 days

0
