040220A-0 - Briggs & Stratton 7kW Home Standby Generator Main Unit (207360) Parts Diagram

7kW Home Standby Generator

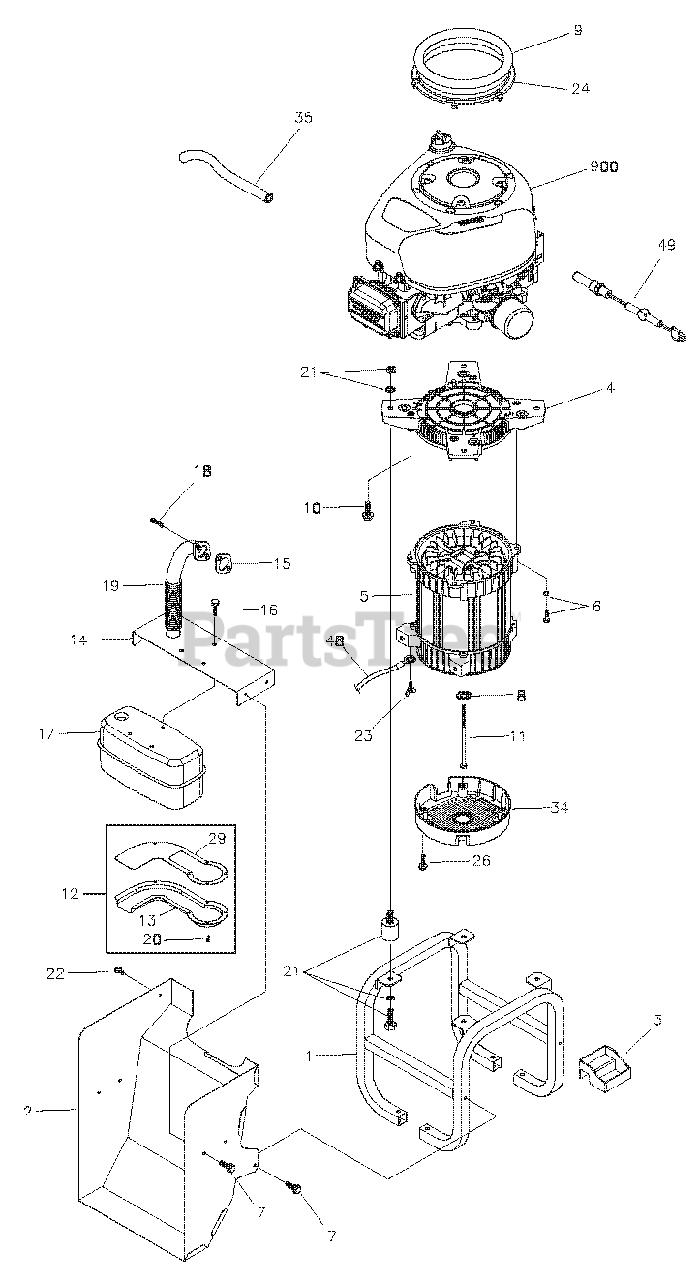

Main Unit (207360) Parts Diagram

  • Title

1

Briggs & Stratton B191860GS

WELDMENT, Cradle

$

$

Not available

2

Briggs & Stratton 194568GS

ASSY, Duct, Air Muffler

$126.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193536GS

TRAY, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator (see page 4)

$

$

Not available

6

Briggs & Stratton 194728GS

KIT, Hardware Mounting Adapter

$3.49

$

Usually ships in 2-12 days

0

7

*

BOLT, Swage, 1/4 - 20 x 1/2

Note: * - Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 193012GS

SEAL, Engine Air Intake

$27.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75246GS

SCREW, 3/8 - 16 x 1-1/4 Taptite

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365HGS

HHCS, 5/16-24 x 9.84

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194990GS

KIT, Deflector Muffler Assy w/Hardware

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 193605GS

ASSY, Deflector Muffler

$20.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 206856GS

BRACKET, Muffler
(Superseded to 315466GS)

$306.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692236

GASKET

$5.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 83512GS

SCREW, M8 1.25 x 15, Taptite

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207059GS

MUFFLER

$79.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 698941

SCREW, Socket Head Cap

$6.99

$

In Stock, Qty 10

0

19

Briggs & Stratton 194159GS

PIPE, Exhaust

$207.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195008GS

KIT, Muffler Hardware

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194209GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192940GS

CLIP, Retainer Fuel Hose

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86494GS

SCREW, Wing, M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192853GS

COLLAR, Inlet Air

$21.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW, M5- .8 x 10 Taptite

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 192906GS

COVER, Bearing

$21.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 15253621GS

WIRE, Ground

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 1916

WARMER, Oil

$310.99

$

Usually ships in 2-12 days

0

900

§

ENGINE

Note: § - Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 207539GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 207358GS

KIT, Manual/Accessory, ELS

Note: Parts Not Illustrated

$111.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194089GS

ASSY, Disconnect Box

Note: Parts Not Illustrated

$224.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

FLEX HOSE

Note: Parts Not Illustrated

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198810GS

PAINT, Touchup, Gray

Note: Parts Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194989GS

ASSY, Plate Status, Auto

Note: Parts Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277766TRI

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 195069GS

KIT, CNVRSN, LP

Note: Parts Not Illustrated

$

$

Not available

--

Briggs & Stratton 196731BGS

BIT, Screw

Note: Parts Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 01915

WARMER, Battery

Note: Optional Accessories

$

$

Not available

--

Briggs & Stratton 199474GS

PAINT, Touchup Spray, 12oz, Gray

Note: Optional Accessories

$39.99

$

Usually ships in 2-12 days

0
