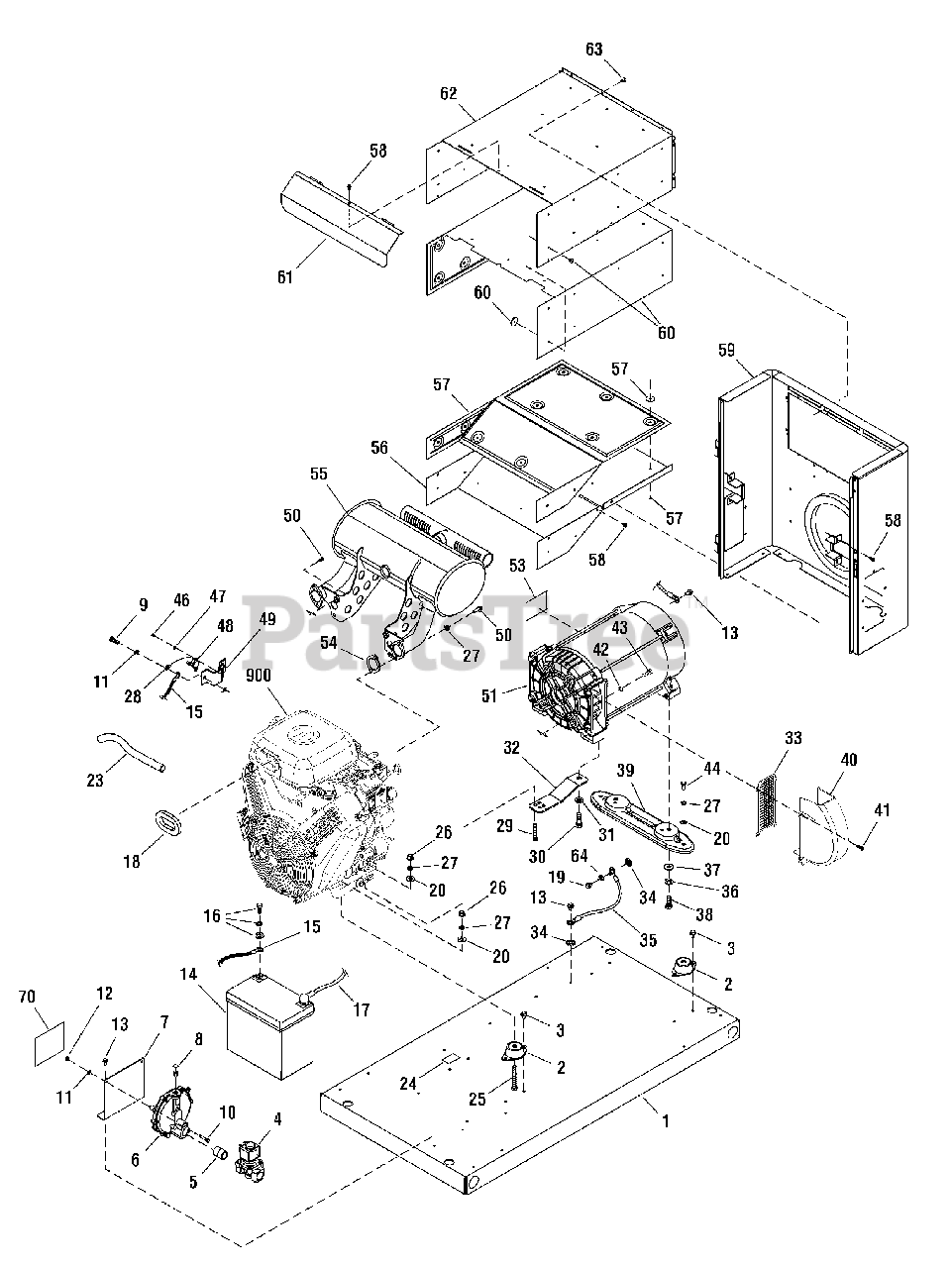

040228-1 - Briggs & Stratton 18kW Home Standby Generator Main Unit (204524) Parts Diagram

18kW Home Standby Generator

Main Unit (204524) Parts Diagram

  • Title

1

Briggs & Stratton U203030GS

BASE, Mounting
(Superseded to U313049GS)

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

MOUNT, Vibration

$64.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

*CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING, Coupling

$20.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR, NG/LPG

$232.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 195936GS

BRACKET, Mounting, Solenoid
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING, 3/4 Flare to 3/8 NPT

$9.99

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex Head, M6-1 x 16

$

$

Not available

10

-----

* CAPSCREW, Hex Head, M6-1 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 194818GS

BATTERY

$255.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 185939UGS

WIRE, A,Black

$23.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198913GS

KIT, Battery Hardware

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 198593DGS

WIRE, A, Red

$46.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 202958GS

TUBE, Air Cleaner
(Superseded to 770423)

$27.99

$

In Stock, only 3 left!

0

19

Briggs & Stratton B4995GS

SCREW

$6.49

$

Usually ships in 2-12 days

0

20

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

26

-----

* NUT, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock, 5/16-M8

$

$

Not available

28

Briggs & Stratton 186790CGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

30

-----

* CAPSCREW, Hex Head, M12-1-3/4 x 35

$

$

Not available

31

-----

* WASHER, M12

$

$

Not available

32

Briggs & Stratton B194685GS

SUPPORT, Engine

$33.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 202922GS

SCREEN

$22.99

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof Ext. M6-1/4

$

$

Not available

35

Briggs & Stratton 185939WGS

WIRE, Ground

$17.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, 3/8

$

$

Not available

37

-----

* WASHER, Flat, 3/8-M10

$

$

Not available

38

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT, Alternator

$41.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 202761GS

DUCT, Air

$98.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* CAPSCREW, 3/8-16 x 1-1/4

$

$

Not available

44

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

45

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

46

-----

* SCREW, Phillips Head, 4-40 x 0.19

$

$

Not available

47

-----

* WASHER, Lock, #4

$

$

Not available

48

Briggs & Stratton 204426GS

SWITCH, Temp

$38.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 194699GS

PLATE, Switch Oil Temp
(Superseded to 313561GS)

$54.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 809743

SCREW
(Superseded to 846149)

$4.49

$

In Stock, only 3 left!

0

51

-----

ALTERNATOR

Note: (Ref. Alternator Page)

$

$

Not available

53

Briggs & Stratton 205398GS

DECAL, Caution Hot Surface
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 809872

GASKET

$5.49

$

In Stock, Qty 20+

0

55

Briggs & Stratton 202885GS

MUFFLER

$449.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202884GS

BASE, Muffler Box

$162.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203533GS

KIT, Insulation, Muffler Box, Base

$197.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 202988GS

BULKHEAD, Alternator

$1072.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 203534GS

KIT, Insulation, Muffler Box, Top

$263.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR, Muffler Box

$46.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 202883GS

BOX, Muffler Top

$256.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW, 10-32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

64

-----

* WASHER, Shakeproof, M6

$

$

Not available

70

Briggs & Stratton 205397GS

DECAL, Requirements, Fuel

$16.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 202826GS

MANUAL, Installation

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202827GS

MANUAL, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 279551TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 204513GS

KIT, Manual/Accessory, HGS

Note: (Not Illustrated)

$127.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198810GS

PAINT, Touch Up, HGS, Gray

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch Up, 1/2oz Bottle, Metallic Silver

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841856

FILTER, A/C cartridge

Note: (Not Illustrated)

$27.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 692520

FILTER, Precleaner

Note: (Not Illustrated)

$6.49

$

In Stock, only 4 left!

0

--

Briggs & Stratton 842921

FILTER, Oil

Note: (Not Illustrated)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton B3518GS

CAP, Funnel, Oil Bottle

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex, NG/LPG

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198866GS

KIT, Led Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203435GS

KIT, Decals, Service

Note: (Not Illustrated)

$38.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Touchup, Spray, Silver, 12oz

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Touch Up, Spray, Gray, 12oz

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6036

KIT, Maintenance
(Superseded to 6872)

Note: (Optional Accessory)

$117.99

$

In Stock, only 4 left!

0

--

Briggs & Stratton 6030

KIT, Cold Weather (IncludesBattery and Oil Warmers)

Note: (Optional Accessory)

$

$

Not available

Briggs & Stratton 6174

ACC, Cold Weather Breather Kit

Note: (Optional Accessory)

$91.99

$

Usually ships in 2-12 days

0
