040248-0 - Briggs & Stratton 7kW Home Standby Generator, Dual Fuel Main Unit (200262) Parts Diagram

7kW Home Standby Generator, Dual Fuel

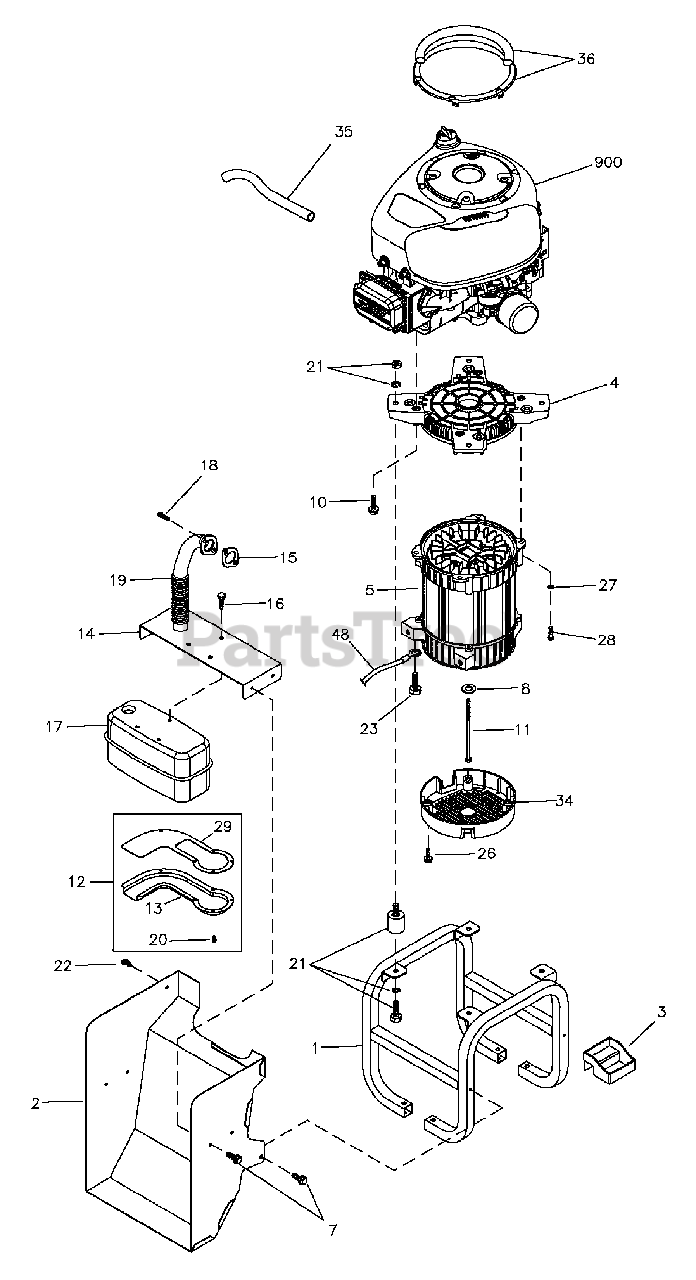

Main Unit (200262) Parts Diagram

  • Title

1

Briggs & Stratton B191860GS

CRADLE

$

$

Not available

2

Briggs & Stratton 194568GS

DUCT

$126.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193536GS

TRAY, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR, Complete

$

$

Not available

7

-----

* BOLT, Swage, 1/4-20 x 1/2

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365HGS

CAPSCREW, Hex, Head, 5/16-24 x 9-7/8

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 207270GS

DEFLECTOR, Muffler

$

$

Not available

13

Briggs & Stratton 193475GS

DEFLECTOR, Muffler

$96.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 206856GS

BRACKET, Muffler
(Superseded to 315466GS)

$306.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692236

GASKET

$5.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 83512GS

TAPTITE

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207059GS

MUFFLER

$79.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 698941

SCREW

$6.99

$

In Stock, Qty 10

0

19

Briggs & Stratton 194159GS

PIPE, Exhaust

$207.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195008GS

KIT, Hardware, Deflector

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194209GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192940GS

CLIP

$2.99

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex, Head, M6-1 x 16

$

$

Not available

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

-----

* WASHER, Lock

$

$

Not available

28

-----

* CAPSCREW, Hex, Head, 5/16-18 x 1

$

$

Not available

29

Briggs & Stratton 194221GS

ARRESTOR, Spark

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 192906GS

COVER, Rear Bearing

$21.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 311723GS

KIT, Seal

$55.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195496GS

WIRE

$4.49

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 200267GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317433GS

KIT, Manual ACC

Note: (Not Illustrated)

$139.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198810GS

PAINT, Touch Up, GE Gray

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194621GS

KIT, LP Conversion

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 196731AGS

BIT, Screw
(Superseded to 19570)

Note: (Not Illustrated)

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

FLEX HOSE

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Spray, Gray

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0
