040274-0 - Briggs & Stratton 15kW Home Standby Generator Main Unit Parts Diagram

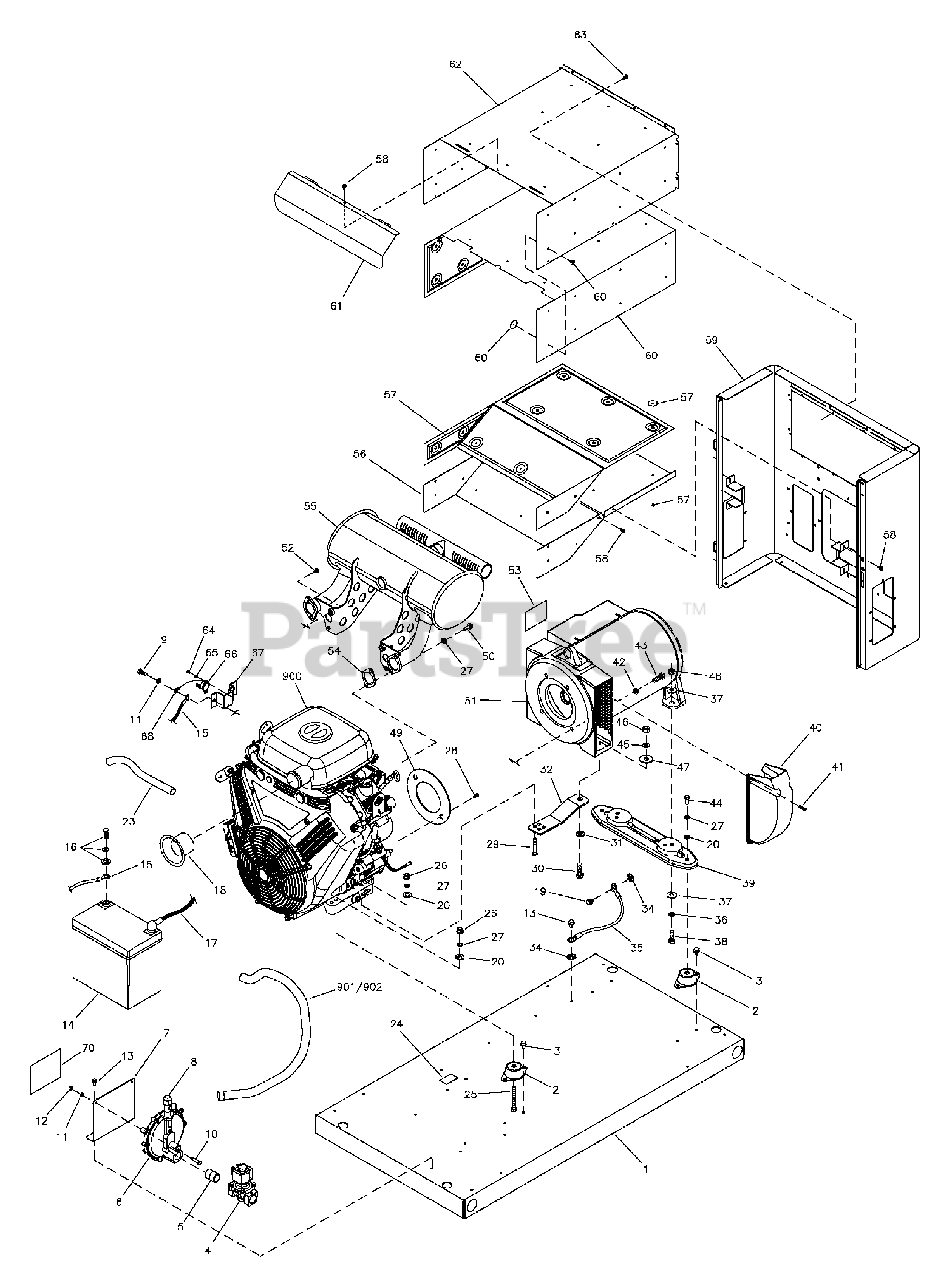

15kW Home Standby Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AA203030GS

BASE

$449.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

MOUNT, Vibration

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

TAPTITE

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$411.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 194829GS

FITTING

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR, NG/LPG

$247.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 195936GS

BRACKET
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 842184

TEE

$189.99

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex, Head, M6-1 x 16

$

$

Not available

10

-----

* CAPSCREW, Hex, Head, M6-1 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 194818GS

BATTERY

$

$

Not available

15

Briggs & Stratton 185939RGS

WIRE

$19.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198913GS

KIT, Hardware, Battery

$

$

Not available

17

Briggs & Stratton 198593AGS

WIRE

$37.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194813GS

TUBE

$15.99

$

In Stock, only 2 left!

0

19

-----

* CAPSCREW, Hex, Head, M6-1 x 12

$

$

Not available

20

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$21.99

$

In Stock, Qty 6

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex, Head, 5/16-18 x 2.5

$

$

Not available

26

-----

* NUT, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock, 5/16-M8

$

$

Not available

28

-----

* CAPSCREW, Hex, Head, 5/16-24 x 3/4

$

$

Not available

29

-----

* CAPSCREW, Hex, Head, 5/16-18 x 2

$

$

Not available

30

-----

* CAPSCREW, Hex, Head, M12-1.75 x 35

$

$

Not available

31

-----

* WASHER, M12

$

$

Not available

32

Briggs & Stratton B194685GS

SUPPORT-ENGINE

$35.99

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof, M6-1/4

$

$

Not available

35

Briggs & Stratton 186790GGS

WIRE

$18.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, M10

$

$

Not available

37

-----

* WASHER, Flat, M10

$

$

Not available

38

-----

* CAPSCREW, Hex, Head, M10-1.5 x 30

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT, Alternator

$44.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 196387GS

DUCT

$

$

Not available

41

-----

* SCREW, Phillips Head, M5-0.8 x 20

$

$

Not available

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* CAPSCREW, Socket Head, 3/8-16 x 1-1/4

$

$

Not available

44

-----

* CAPSCREW, Hex, Head, 5/16-18 x 3/4

$

$

Not available

45

-----

* WASHER, Lock, M12

$

$

Not available

46

-----

* NUT, Hex, M12

$

$

Not available

47

-----

* WASHER, Flat, M12

$

$

Not available

48

-----

* NUT, M10

$

$

Not available

49

Briggs & Stratton B4260GS

DISK

$

$

Not available

50

Briggs & Stratton 809743

SCREW
(Superseded to 846149)

$4.99

$

In Stock, Qty 20+

0

51

-----

ALTERNATOR, Complete

$

$

Not available

52

Briggs & Stratton 692062

SCREW

$3.99

$

In Stock, only 4 left!

0

53

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 809872

GASKET

$5.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 197164GS

MUFFLER

$476.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

BASE

$214.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

INSULATION

$239.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 202918GS

BULKHEAD, Alternator

$543.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

INSULATION

$268.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR

$49.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

BOX, Muffler Top

$252.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

64

-----

* SCREW, Phillips Head, 4-40 x 0.19

$

$

Not available

65

-----

* WASHER, Lock, #4

$

$

Not available

66

Briggs & Stratton 186205GS

SWITCH, Temp
(Superseded to 204426GS)

$40.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 194699GS

PLATE, Temp Switch
(Superseded to 313561GS)

$58.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 186790CGS

WIRE

$

$

Not available

70

Briggs & Stratton 205397GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 199327GS

MANUAL, Installation

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 194689GS

MANUAL, Operator's

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 279551TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 203386GS

KIT, Manual ACC

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 203374GS

PAINT, Touch Up, Charcoal

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch Up, Silver

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP, Funnel

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex, NG/LPG

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

PLATE, Cover
(Superseded to 313326GS)

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203419GS

KIT, Decal

Note: (Not Illustrated)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841856

FILTER, A/C CARTRIDGE

Note: (Not Illustrated)

$28.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 692520

FILTER, Precleaner

Note: (Not Illustrated)

$6.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 842921

FILTER, Oil

Note: (Not Illustrated)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 203417GS

PAINT, Spray, Charcoal

Note: (Optional Accessory)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Spray, Silver

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6036

KIT, Maintenance
(Superseded to 6872)

Note: (Optional Accessory)

$114.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 6030

KIT, Cold Weather (Includes Battery and Oil Warmers

Note: (Optional Accessory)

$

$

Not available
