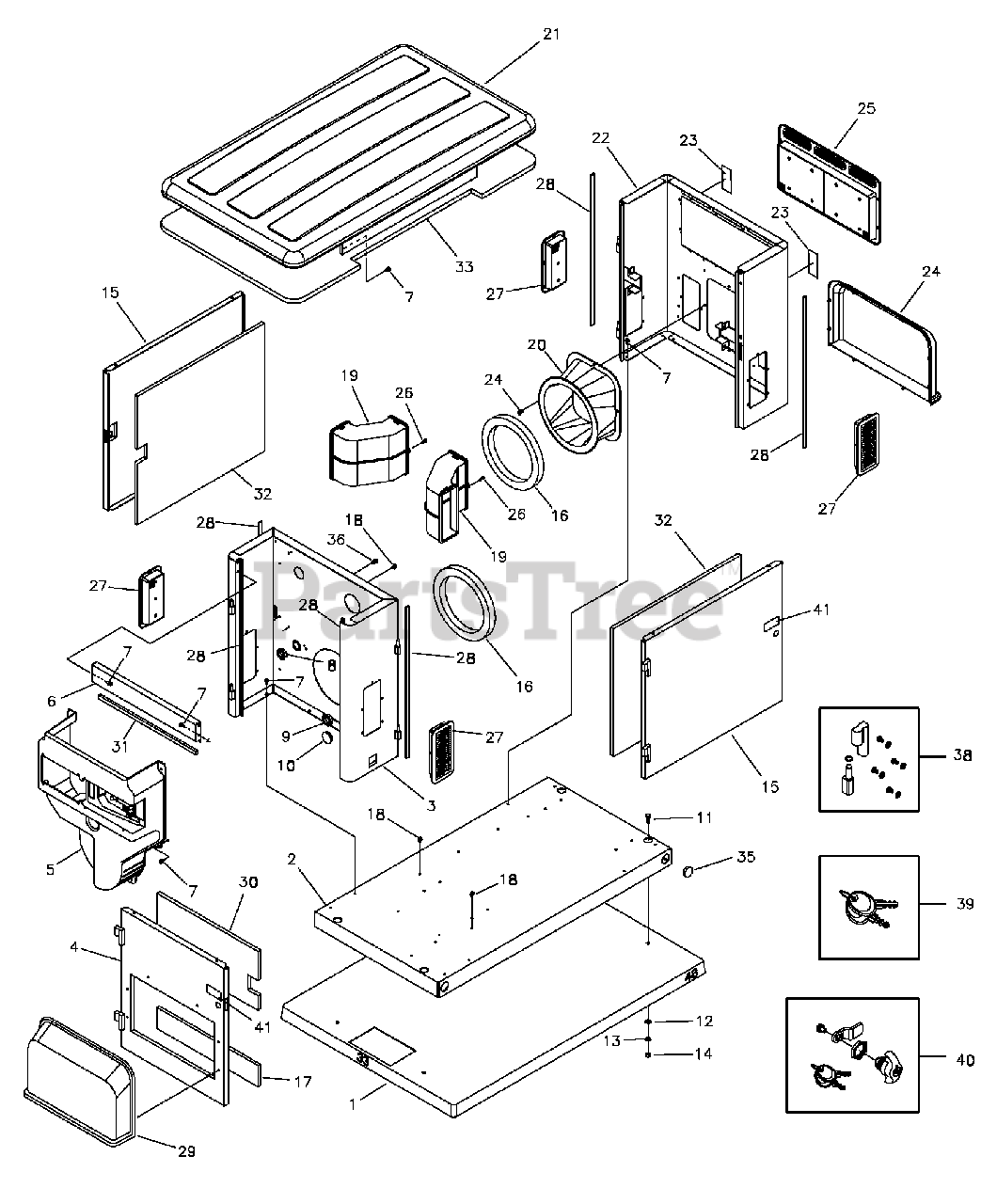

040294-0 - Briggs & Stratton 9kW Home Standby Generator Enclosure (203059) Parts Diagram

9kW Home Standby Generator

Enclosure (203059) Parts Diagram

  • Title
1

Briggs & Stratton 197275GS

PAD, Mounting w/ Holes

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton U203030GS

BASE, Mounting
(Superseded to U313049GS)

$496.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 198991GS

ASSY, Bulkhead, Engine End

$524.99

$

Usually ships in 2-12 days

0

--

-----

BULKHEAD, Engine End

$

$

Not available

--

-----

DECAL, Fuel Inlet

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam Engine Air

$

$

Not available

--

-----

BUSHING, 1-1/2

$

$

Not available

--

-----

BUSHING, 1-3/8

$

$

Not available

--

-----

PLUG, Dome 1-1/2

$

$

Not available

--

-----

PIN, Hinges with Hardware

$

$

Not available

4

Briggs & Stratton 206942GS

DOOR ASSEMBLY, Engine End

$302.99

$

Usually ships in 2-12 days

0

--

-----

DOOR, Engine End

$

$

Not available

--

-----

INSULATION, Top

$

$

Not available

--

-----

INSULATION, Bottom

$

$

Not available

--

-----

BARREL, Hinges with Hardware

$

$

Not available

5

Briggs & Stratton 205928GS

DUCT ASSEMBLY, Engine Air

$256.99

$

Usually ships in 2-12 days

0

--

-----

DECALS

$

$

Not available

--

-----

LUG, Ground Connect w/Hardware

$

$

Not available

--

-----

BRACKET, Mounting Breaker w/Hardware

$

$

Not available

6

Briggs & Stratton 198993GS

SUPPORT RAIL ASSEMBLY

$61.99

$

Usually ships in 2-12 days

0

--

-----

SUPPORT RAIL, Engine. End

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

Decal, Rainproof

$

$

Not available

7

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 12

0

8

Briggs & Stratton 186173GS

BUSHING, Snap, 1-3/8"

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap, 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198461GS

PLUG, Dome, 1-1/2"

$3.49

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

12

-----

* WASHER, Flat, 3/8 - M10

$

$

Not available

13

-----

* WASHER, Lock 3/8

$

$

Not available

14

-----

* NUT, 3/8-16

$

$

Not available

15

$302.99

$

Usually ships in 2-12 days

0

--

-----

DOOR

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES, Barrel, With Hardware

$

$

Not available

--

-----

DECALS

$

$

Not available

16

Briggs & Stratton 199629GS

SEAL, Foam, Engine Air

$51.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 203303GS

INSULATION, Engine Door, Bottom

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie Wrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 195935GS

DUCT, Rubber Alternator

$75.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 203029GS

ADAPTER, Alternator

$68.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 198893GS

ASSEMBLY, Roof/Siderails

$547.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT, Roof/Siderails

$

$

Not available

--

-----

INSULATION

$

$

Not available

22

Briggs & Stratton 206839GS

BULKHEAD ASSEMBLY, Alternator End

$543.99

$

Usually ships in 2-12 days

0

--

-----

DECAL, Caution Hot Muffler

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

PIN, Hinges with Hardware

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

23

Briggs & Stratton 206863GS

DECAL, Hot Surface

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194679GS

COVER, Air Intake Alternator

$

$

Not available

25

Briggs & Stratton 198926GS

VENT ASSEMBLY, Exhaust

$132.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 198927GS

VENT ASSEMBLY, Alternator

$20.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194694GS

COVER, Air Intake Engine

$

$

Not available

30

Briggs & Stratton 203302GS

INSULATION, Engine Door, Top

$35.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION, Front/Rear Door

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION, Roof

$117.99

$

Usually ships in 2-12 days

0

$3.49

$

In Stock, only 3 left!

0

36

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 198890GS

KIT, Door, Hinge

$26.99

$

Usually ships in 2-12 days

0

39

$16.99

$

Usually ships in 2-12 days

0

$24.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 206866GS

DECAL, Manual/Hazard

$15.99

$

Usually ships in 2-12 days

0
