040297B-0 - Briggs & Stratton 13.5kW Home Standby Generator Main Unit (314705) Parts Diagram

13.5kW Home Standby Generator

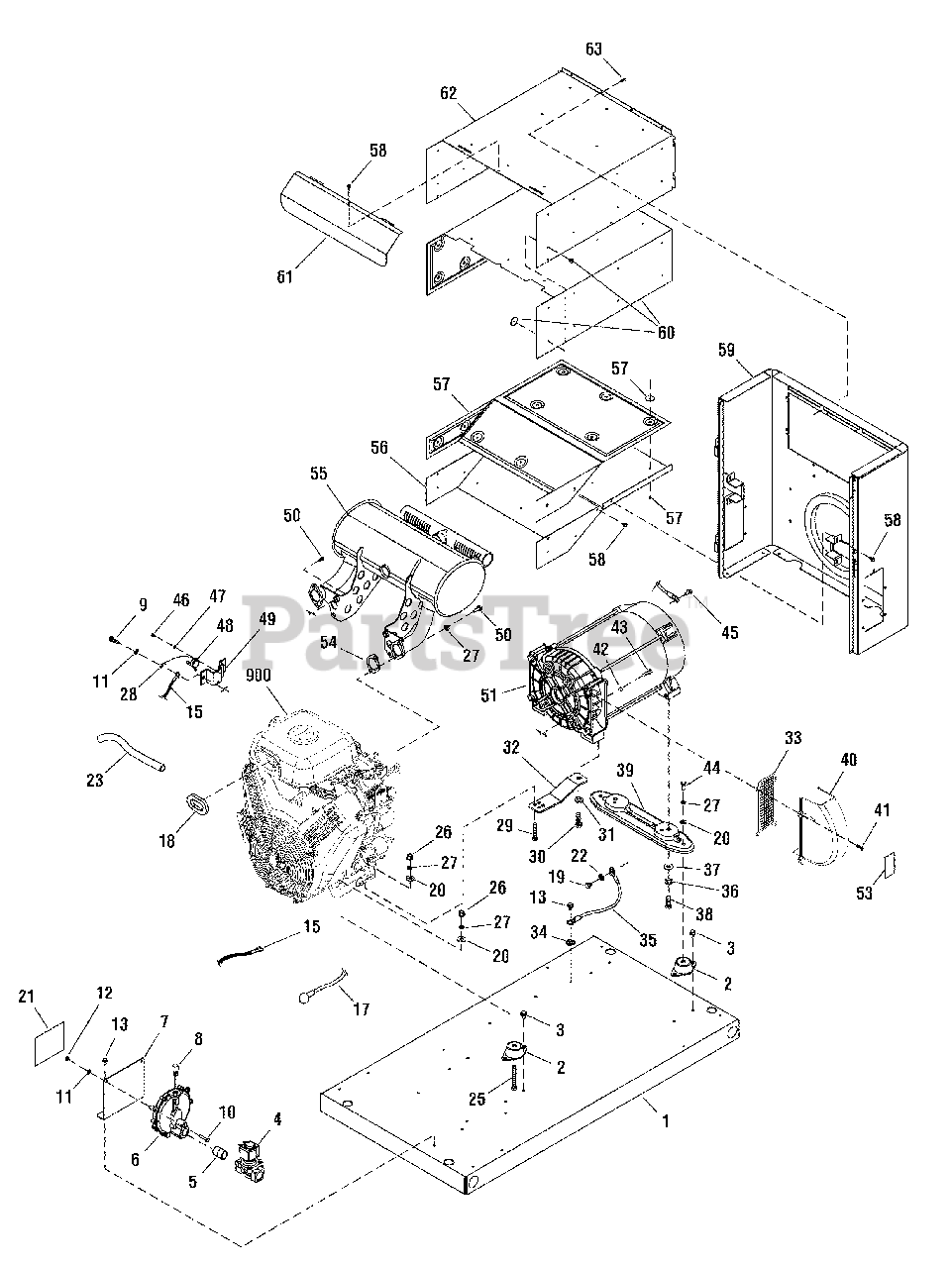

Main Unit (314705) Parts Diagram

  • Title

1

Briggs & Stratton U313049GS

BASE

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

MOUNT, Vibration

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

TAPTITE

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$411.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR, NG/LPG

$247.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 313562GS

BRACKET

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING

$10.99

$

In Stock, only 1 left!

0

9

-----

* CAPSCREW, Hex Head, M6-1 x 16

$

$

Not available

10

-----

* CAPSCREW, Hex Head, M6-1 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 185939UGS

CABLE, Battery, Black

$

$

Not available

--

Briggs & Stratton 206609GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 198593DGS

CABLE, Battery, Red

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206609GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 202958GS

TUBE
(Superseded to 770423)

$29.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B4995GS

SCREW

$6.99

$

Usually ships in 2-12 days

0

20

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

21

Briggs & Stratton 206865GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

22

-----

* WASHER, Shakeproof, M6

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$21.99

$

In Stock, Qty 5

0

25

-----

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

26

-----

* NUT, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock, 5/16-M8

$

$

Not available

28

Briggs & Stratton 186790CGS

WIRE

$

$

Not available

29

-----

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

30

-----

* CAPSCREW, Hex Head, M12-1.75 x 35

$

$

Not available

31

-----

* WASHER, M12

$

$

Not available

32

Briggs & Stratton B194685GS

SUPPORT, Engine

$35.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 202922GS

SCREEN

$24.99

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof, M6-1/4

$

$

Not available

35

Briggs & Stratton 185939WGS

WIRE

$18.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, 3/8

$

$

Not available

37

-----

* WASHER, Flat, 3/8

$

$

Not available

38

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT, Alternator

$44.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 202761GS

DUCT

$

$

Not available

41

-----

* SCREW-M5-0.8 x 10 TAPTITE

$

$

Not available

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* SHCS-3/8-16 x 1-1/4

$

$

Not available

44

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

45

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

46

-----

* PPHMS-4-40 x 0.19

$

$

Not available

47

-----

* WASHER, Lock, #4

$

$

Not available

48

Briggs & Stratton 204426GS

SWITCH, Temp

$40.99

$

In Stock, only 1 left!

0

49

Briggs & Stratton 194699GS

PLATE, Temp Switch
(Superseded to 313561GS)

$58.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 809743

SCREW
(Superseded to 846149)

$4.99

$

In Stock, only 4 left!

0

51

-----

ALTERNATOR

$

$

Not available

53

Briggs & Stratton 206864GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 809872

GASKET

$5.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 202885GS

MUFFLER

$

$

Not available

56

Briggs & Stratton 202884GS

BASE

$173.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203533GS

INSULATION

$210.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 202988GS

BULKHEAD, Alternator

$1142.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 203534GS

INSULATION

$263.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR

$49.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 202883GS

BOX, Muiffler Top

$272.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 314611GS

MANUAL, Installation

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 208954GS

MANUAL, Operator

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 279774TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 315191GS

KIT, Manual ACC

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 198810GS

PAINT, Touch Up, Gray

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch Up, Silver

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex, NG/LPG

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207966GS

PLATE, Cover

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 203434GS

KIT, Decal

Note: (Not Illustrated)

$38.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841856

FILTER, A/C Cartridge

Note: (Not Illustrated)

$28.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 692520

FILTER, Precleaner

Note: (Not Illustrated)

$6.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 842921

FILTER, Oil

Note: (Not Illustrated)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 199474GS

PAINT, Spray, Gray

Note: (Optional Accessory)

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Spray, Silver

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6036

KIT, Maintenance
(Superseded to 6872)

Note: (Optional Accessory)

$114.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 6030

KIT, Cold Weather (Includes Battery & Oil Warmers)

Note: (Optional Accessory)

$

$

Not available
