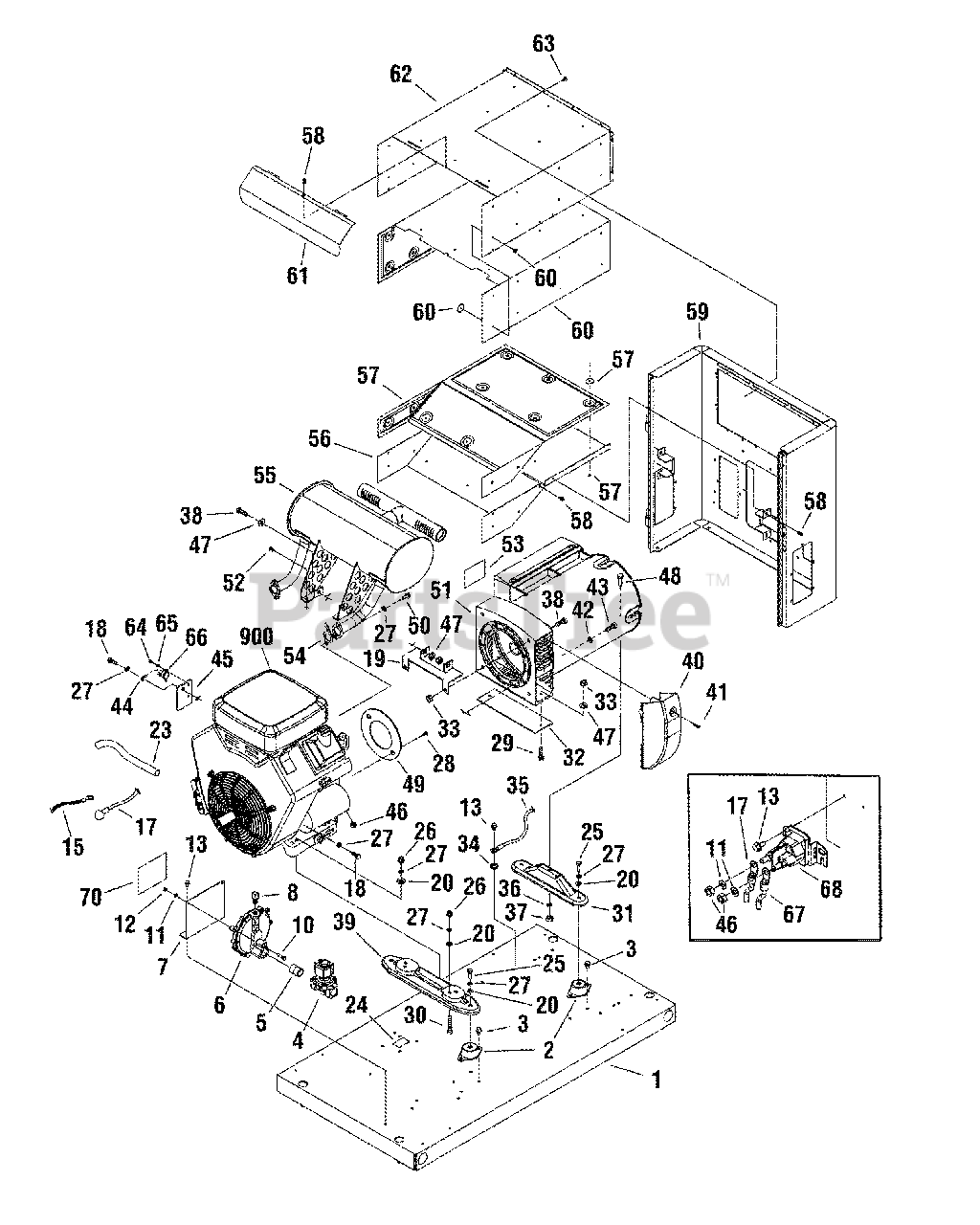

040302A-01 - Briggs & Stratton 12kW Home Standby Generator Main Unit Parts Diagram

12kW Home Standby Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton U313049GS

BASE

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 198899GS

MOUNT, Vibration

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 194829GS

FITTING

$20.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR, NG/LPG

$232.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 313562GS

BRACKET

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING

$9.99

$

Usually ships in 2-12 days

0

10

* CAPSCREW, Hex Head

$

$

Not available

11

WASHER, Lock, 1/4

$

$

Not available

12

* NUT, M6-1

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 185939VGS

CABLE, Battery, Black

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206609GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 198593BGS

CABLE, Battery, Red

$30.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206609GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

18

* CAPSCREW, Hex Head, M8 - 1-1/4 x 16

$

$

Not available

19

Briggs & Stratton 201824GS

BRACKET

$11.99

$

Usually ships in 2-12 days

0

20

* WASHER, Flat, 5/16-M8

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

* CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

26

* NUT, 5/16-18

$

$

Not available

27

* WASHER, Lock, 5/16-M8

$

$

Not available

28

* CAPSCREW, Hex Head, SEMS, 5/16-24 x 3/4

$

$

Not available

29

* CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

30

* CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$

$

Not available

31

Briggs & Stratton B198897GS

SUPPORT, Alternator

$36.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200013GS

PLATE, Cover

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194005GS

NUT

$2.99

$

Usually ships in 2-12 days

0

34

* WASHER, Shakeproof, EXT, M6-1/4

$

$

Not available

35

Briggs & Stratton 186790HGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

36

* WASHER, Lock, M10

$

$

Not available

37

* NUT, Hex, M10 - 1-1/2

$

$

Not available

38

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT, Engine

$41.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 201817GS

DUCT

$58.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 199999GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

42

* WASHER, Lock, 3/8

$

$

Not available

43

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

44

Briggs & Stratton 186790CGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 313560GS

PLATE, Temp Switch

$46.99

$

Usually ships in 2-12 days

0

46

* NUT, Hex, 1/4-20

$

$

Not available

47

* WASHER, Flat, M6-1/4

$

$

Not available

48

* CAPSCREW, Hex Head, M10 - 1-1/2

$

$

Not available

49

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, only 3 left!

0

51

ALTERNATOR, Complete

$

$

Not available

52

Briggs & Stratton 40976GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 806425

GASKET

$5.49

$

In Stock, only 3 left!

0

55

Briggs & Stratton 198758GS

MUFFLER

$464.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

BASE

$201.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

INSULATION

$224.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 201282GS

BULKHEAD, Alternator

$418.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

INSULATION

$252.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR

$46.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

BOX, Muffler Top

$236.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

64

* SCREW, Phillips Head, 4-40 x 3/16

$

$

Not available

65

* WASHER, Lock, #4

$

$

Not available

66

Briggs & Stratton 186205GS

SWITCH, Temp

$107.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 198593CGS

WIRE

$30.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 12

0

70

Briggs & Stratton 205397GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

900

** ENGINE

$

$

Not available

--

Briggs & Stratton 317706GS

KIT, Manual ACC

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 198810GS

PAINT, Touch Up, Gray

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch Up, Silver

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

CAP, Funnel
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841359

FILTER, A/C Cartridge

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 272490S

FILTER, Precleaner

Note: (Not Illustrated)

$5.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 492932B

FILTER, Oil

Note: (Not Illustrated)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 195200GS

HANG TAG, Attn Standby Equipment

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE, Flex NG/LPG

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

PLATE, Cover
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198918GS

KIT, Decals

Note: (Not Illustrated)

$44.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Spray, Gray

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Spray, Silver

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6035

KIT, Maintenance

Note: (Optional Accessory)

$105.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6030A

KIT, Cold Weather (Includes Battery and Oil Warmers

Note: (Optional Accessory)

$371.99

$

Usually ships in 2-12 days

0
