040308A-0 - GE 15kW Home Standby Generator Control Panel (311279) Parts Diagram

GE 15kW Home Standby Generator

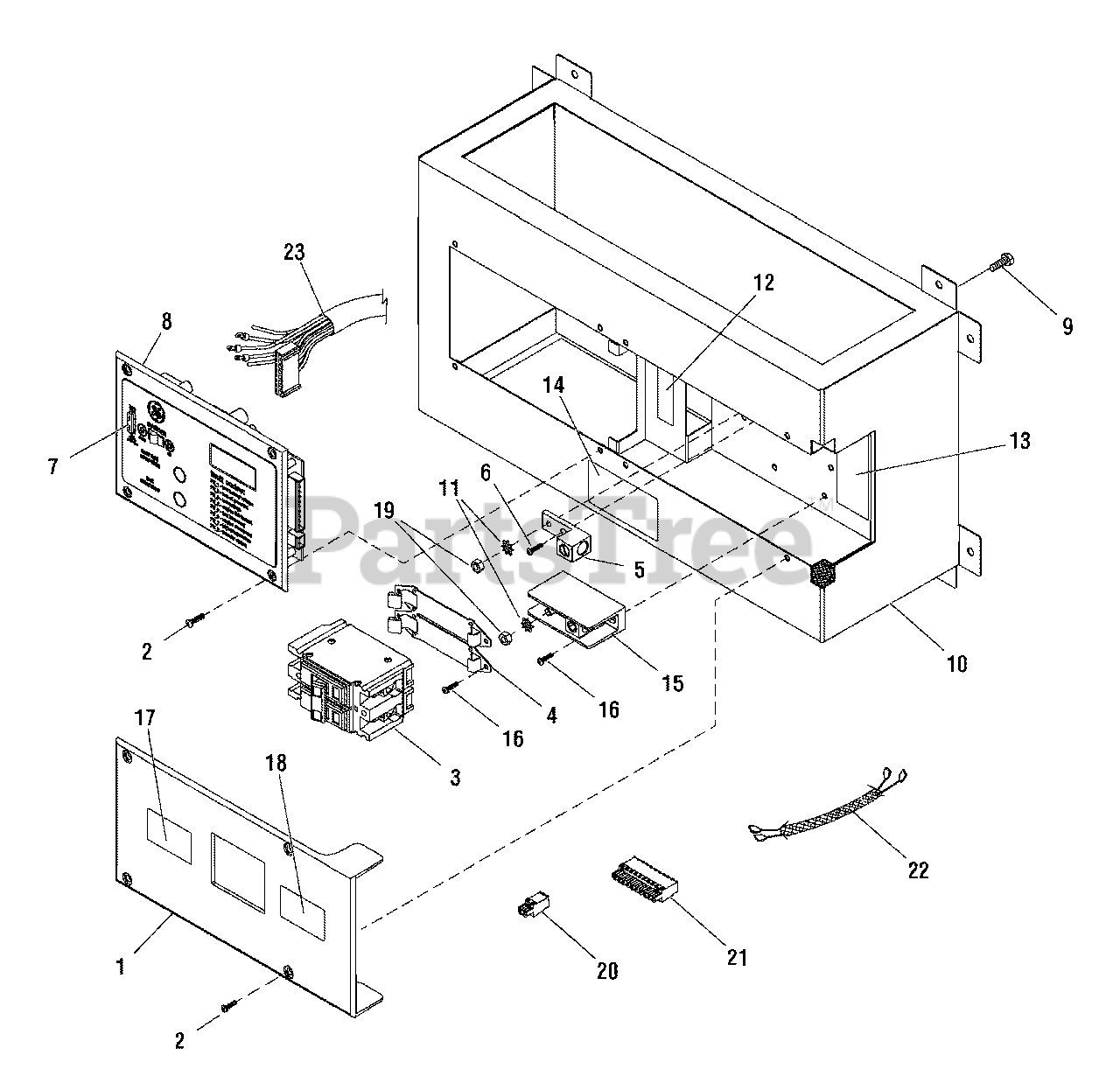

Control Panel (311279) Parts Diagram

  • Title

1

Briggs & Stratton 198911GS

COVER

Note: (Includes Ref. Nos. 17 & 18)

$

$

Not available

2

-----

* SCREW, Phillips Head, M4 - 0.7 x 10

$

$

Not available

3

Briggs & Stratton 311317GS

BREAKER, Circuit, 70A

$150.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 192770GS

BRACKET

$56.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199011GS

LUG

$8.99

$

Usually ships in 2-12 days

0

6

-----

* SCREW, Phillips Head, M6 - 1.0 x 16

$

$

Not available

7

Briggs & Stratton 198573GS

FUSE

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 311351GS

BOARD, Control

$468.99

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

10

Briggs & Stratton 209435GS

DUCT

$496.99

$

Usually ships in 2-12 days

0

11

-----

* WASHER, Shakeproof, M6 1/4

$

$

Not available

12

Briggs & Stratton 198549GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 209387GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205393GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 208365GS

BLOCK, Terminal

$17.99

$

Usually ships in 2-12 days

0

16

-----

* SCREW, Phillips Head, M4 - 0.7 x 16

$

$

Not available

17

Briggs & Stratton 205394GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205395GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

-----

* NUT, 1/4-20

$

$

Not available

20

Briggs & Stratton 198515GS

CONNECTOR, 2 Pin

$9.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 198516GS

CONNECTOR, 10 Pin

$

$

Not available

22

Briggs & Stratton 198517GS

HARNESS, Wiring

$16.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 202882GS

HARNESS, Wiring

$

$

Not available

--

Briggs & Stratton 203020GS

HARNESS, AVR

Note: (Not Illustrated)

$88.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198455BAGS

WIRE

Note: (Not Illustrated)

$

$

Not available
