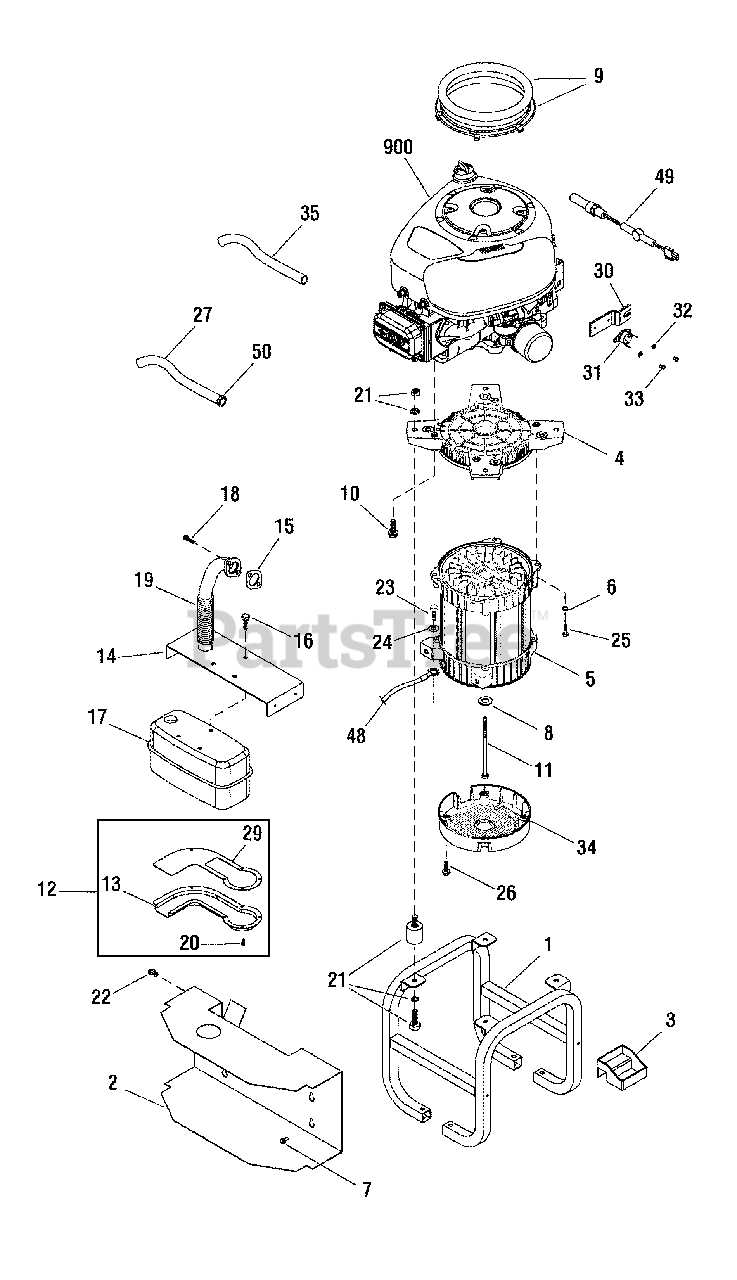

040315A-0 - GE 7kW Home Standby Generator Main Unit (313698) Parts Diagram

GE 7kW Home Standby Generator

Main Unit (313698) Parts Diagram

  • Title

1

Briggs & Stratton B191860GS

CRADLE

$

$

Not available

2

Briggs & Stratton 313654GS

BOX, Muffler

$232.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193536GS

TRAY, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR ASSEMBLY

$

$

Not available

6

-----

* WASHER, Lock, M8

$

$

Not available

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 311723GS

KIT, Seal

$55.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 2830598SM

TAPTITE
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 187365HGS

CAPSCREW, Hex Head, 5/16-24 x 9.84

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 207270GS

KIT, Deflector, Muffler Assembly

$

$

Not available

13

Briggs & Stratton 193475GS

ASSEMBLY, Deflector Muffler

$96.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 313651GS

BRACKET, Muffler

$149.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692236

GASKET

$5.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 83512GS

SCREW, Taptite, M8 1.25 x 15

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207059GS

MUFFLER

$79.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 698941

SCREW, Socket Head Cap

$6.99

$

In Stock, Qty 10

0

19

Briggs & Stratton 194159GS

PIPE, Exhaust

$207.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195008GS

KIT, Muffler Hardware

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194209GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192940GS

CLIP, Retainer Fuel Hose

$2.99

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 30

$

$

Not available

24

-----

* WASHER, Lock, M6

$

$

Not available

25

-----

* CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

26

Briggs & Stratton 74908GS

SCREW, Taptite, M5 - .8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206817GS

HOSE, Fuel

$63.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194221GS

ARRESTOR, Spark

$31.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 206047GS

PLATE, Switch

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 206045GS

SWITCH

$64.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 27772GS

WASHER, Lock, #4

$1.99

$

Usually ships in 2-12 days

0

33

-----

* SCREW, Phillips Head, 4-40 x .019

$

$

Not available

34

Briggs & Stratton 192906GS

COVER, Bearing

$21.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 15253621GS

WIRE, Ground

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 01916

WARMER, Oil

$310.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 57822GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 313689GS

MANUAL, Operator’s

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277766TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 313695GS

KIT, Manual ACC

Note: (Not Illustrated)

$232.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

FLEX HOSE

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touchup, Silver

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 492932B

FILTER, Oil

Note: (Not Illustrated)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 790263

FILTER, A/C Cartridge

Note: (Not Illustrated)

$36.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195069GS

KIT, Conversion, LP

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 196731BGS

BIT, Screw

Note: (Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 01915

WARMER, Battery

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 6034

KIT, Maintenance

Note: (Optional Accessory)

$98.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Touchup Spray, 12oz, Gray

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0
