040320-0 - Milbank 7kW Home Standby Generator Main Unit Parts Diagram

7kW Home Standby Generator

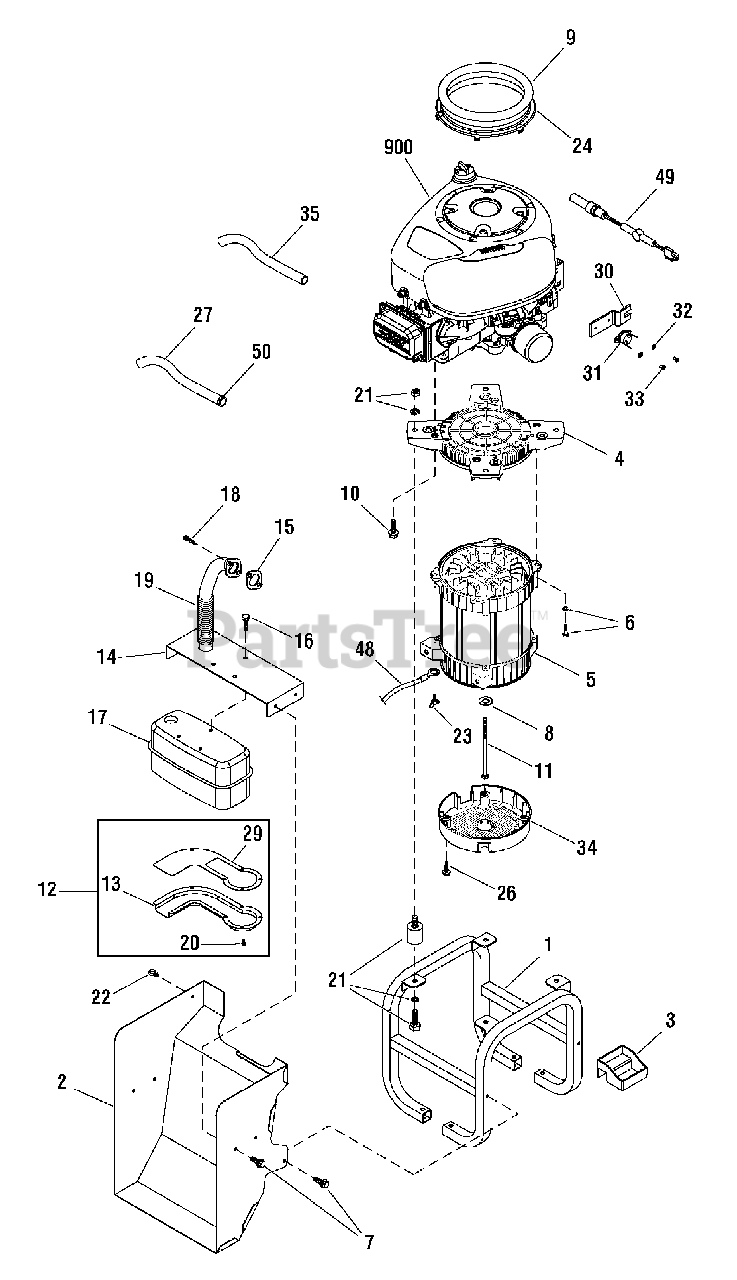

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B191860GS

CRADLE

$

$

Not available

2

Briggs & Stratton 194568GS

DUCT

$126.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193536GS

TRAY, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR ASSEMBLY

$

$

Not available

6

Briggs & Stratton 194728GS

KIT, Hardware, Adapter

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 208103GS

SEAL

$

$

Not available

10

Briggs & Stratton 2830598SM

TAPTITE
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 187365HGS

BOLT

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 207270GS

DEFLECTOR, Muffler

$

$

Not available

13

Briggs & Stratton 193475GS

DEFLECTOR

$96.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 206856GS

BRACKET, Muffler
(Superseded to 315466GS)

$306.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692236

GASKET

$5.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 83512GS

TAPTITE

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207059GS

MUFFLER

$79.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 698941

SCREW

$6.99

$

In Stock, Qty 10

0

19

Briggs & Stratton 194159GS

PIPE, Exhaust

$207.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195008GS

KIT, Hardware, Deflector

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194209GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192940GS

CLIP

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86494GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192853GS

COLLAR, Air Inlet

$21.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206817GS

HOSE, Fuel

$63.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194221GS

ARRESTOR, Spark

$31.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 206047GS

PLATE, Temp Switch

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 206045GS

SWITCH

$64.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 27772GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

33

-----

* SCREW, Phillips Head, 4-40 x .019

$

$

Not available

34

Briggs & Stratton 192906GS

COVER, Rear Bearing

$21.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 15253621GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 01916

WARMER, Oil

$310.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 57822GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 310883GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310886GS

MANUAL, Installation

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277766TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 310889GS

KIT, Manual ACC
(Superseded to 312815GS)

Note: (Not Illustrated)

$232.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

FLEX HOSE

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310891GS

PAINT, Touch Up, Almond

Note: (Not Illustrated)

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

KIT, LED Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 492392B

FILTER, Oil

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 790263

FILTER, Cartridge

Note: (Not Illustrated)

$36.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195069GS

KIT, LP Conversion

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 196731BGS

BIT, Screw

Note: (Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 01915

WARMER, Battery

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 6034

KIT, Maintenance

Note: (Optional Accessory)

$98.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311197GS

PAINT, Spray, Almond

Note: (Optional Accessory)

$125.99

$

Usually ships in 2-12 days

0
