040342-00 - Briggs & Stratton 10kW Home Standby Generator with 100 Amp ATS Main Unit (315412) Parts Diagram

10kW Home Standby Generator with 100 Amp ATS

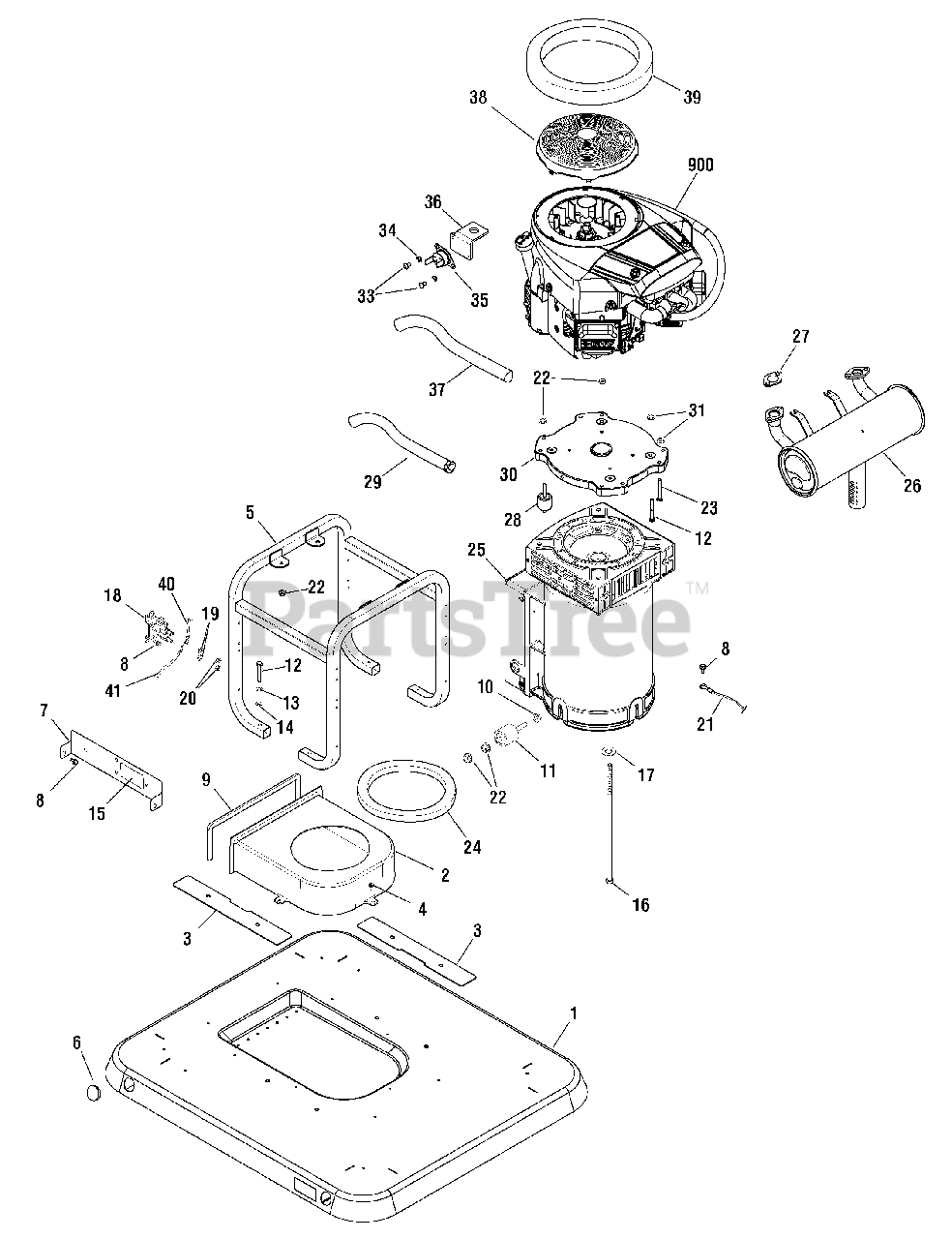

Main Unit (315412) Parts Diagram

  • Title

1

Briggs & Stratton B311623GS

BASE

$

$

Not available

2

Briggs & Stratton 315098GS

DUCT

$62.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311636GS

BRACKET

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B311625GS

CRADLE

$462.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 198460GS

PLUG, Hole

$3.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 314732GS

BRACKET

$42.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 314676GS

SEAL

$16.99

$

In Stock, only 1 left!

0

10

-----

* NUT, Hex, M8-1.25

$

$

Not available

11

Briggs & Stratton 194783GS

MOUNT, Vibration

$25.99

$

Usually ships in 2-12 days

0

12

-----

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

13

-----

* WASHER, Lock, M8

$

$

Not available

14

-----

* WASHER, Flat, M8

$

$

Not available

15

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 315201GS

BOLT

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 203200GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 691656

SOLENOID, Starter

$33.99

$

In Stock, Qty 20+

0

19

-----

* WASHER, Lock, 1/4

$

$

Not available

20

-----

* NUT, 1/4-20

$

$

Not available

21

Briggs & Stratton 313222GS

WIRE

$27.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 18

0

23

-----

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

24

Briggs & Stratton 191994GS

SEAL
(Superseded to 770802)

$54.99

$

Usually ships in 2-12 days

0

25

-----

ALTERNATOR

$

$

Not available

26

Briggs & Stratton 797908GS

MUFFLER

$395.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690970

GASKET

$4.99

$

In Stock, Qty 20+

0

28

Briggs & Stratton 194783GS

MOUNT, Vibration

$25.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 312079GS

HOSE, Fuel

$82.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 314734GS

ADAPTER, Engine

$280.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 189160GS

NUT

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 186242GS

SCREW
(Superseded to 708730)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 27772GS

WASHER

$

$

Not available

35

Briggs & Stratton 313228GS

SWITCH

$72.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 314828GS

PLATE, Temp Switch

$46.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 1723165SM

HOSE, Oil

$21.99

$

In Stock, Qty 6

0

38

Briggs & Stratton 798767

COVER

$50.99

$

In Stock, Qty 5

0

39

Briggs & Stratton 313337GS

SEAL

$

$

Not available

40

Briggs & Stratton 194659GS

WIRE

$26.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 311691GS

WIRE

$

$

Not available

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 318176GS

KIT, Manual

Note: (Not Illustrated)

$281.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315206GS

HARNESS, Power Wire

Note: (Not Illustrated)

$182.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195200GS

HANG TAG, Attn Standby Equipment

Note: (Not Illustrated)

$2.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311713GS

FLEX HOSE
(Superseded to 202295GS)

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313789GS

STRAP, Battery

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313574GS

KIT, LP Conversion

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203374GS

PAINT, Touchup, Charcoal

Note: (Optional Accessory)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Spray, Charcoal

Note: (Optional Accessory)

$48.99

$

Usually ships in 2-12 days

0
