040415-00 - Briggs & Stratton 17kW Home Standby Generator Control Panel (319122) Parts Diagram

17kW Home Standby Generator

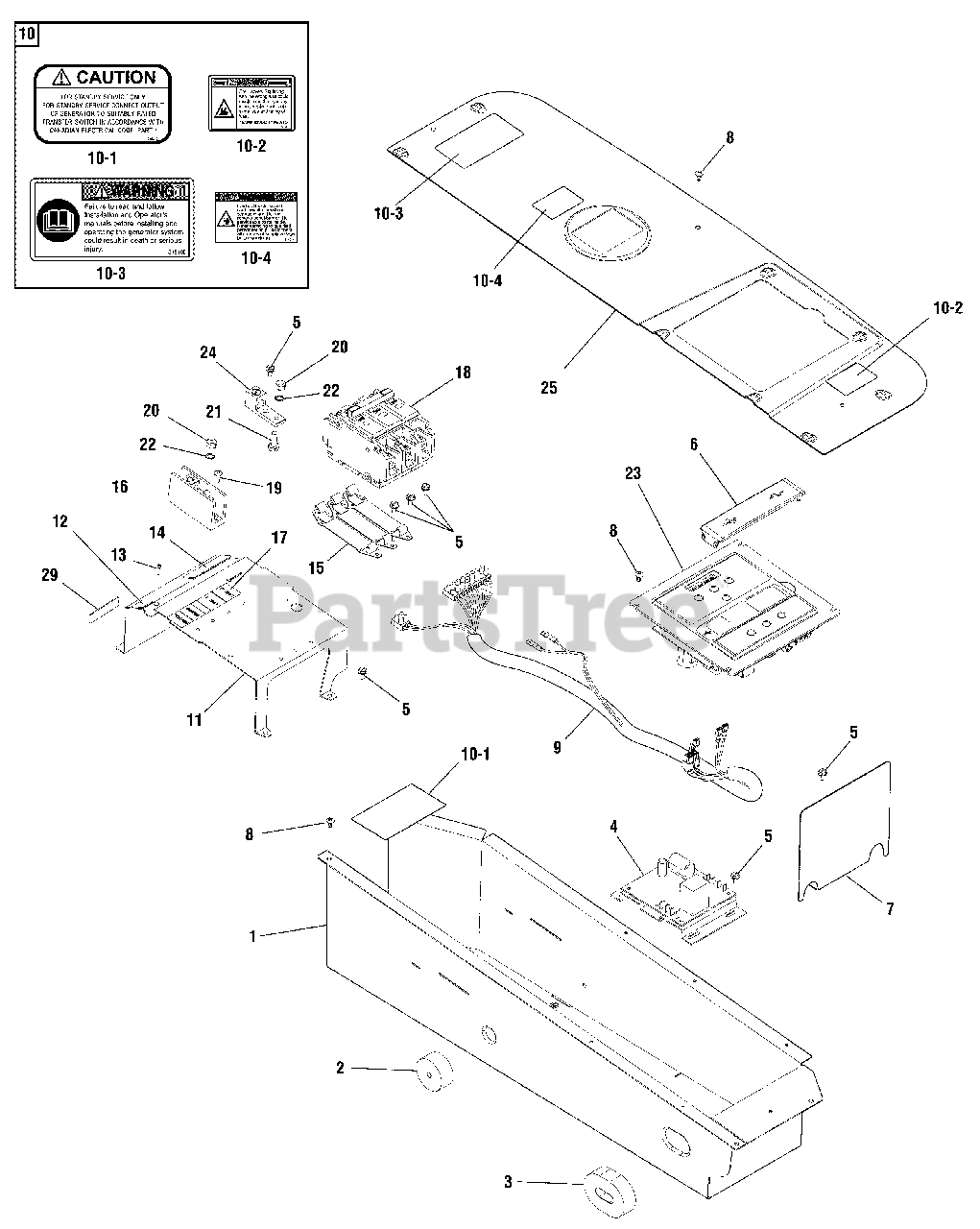

Control Panel (319122) Parts Diagram

  • Title

1

Briggs & Stratton 314631GS

BOX-CONTROL

$363.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 316948GS

SEAL

Note: (Not required after Serial No. 1022101612)

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316205GS

SEAL

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 316959GS

REGULATOR-VOLTAGE
(Superseded to 84004625)

$495.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194561GS

BOLT

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 319009GS

DOOR-ACCESS

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314632GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315436GS

SCREW

$6.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 314639GS

HARNESS

$81.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 318449GS

DECAL SHEET-WARNINGS

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3 & 10-4)

$29.99

$

Usually ships in 2-12 days

0

10-1

-----

DECAL-CAUTION, STANDBY

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-2

-----

DECAL-FUSE WARNING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

-----

DECAL-WARNING, ELECTRIC SHOCK

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

-----

DECAL-WARNING, READ MANUAL

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

11

Briggs & Stratton 318324GS

BRACKET

$179.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 317371GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

13

-----

* SCREW, M2.5-0.45 x 8

$

$

Not available

14

Briggs & Stratton 317368GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192770GS

BRACKET

$56.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 208365GS

TERMINAL BLOCK

$17.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 313585GS

DECAL

$13.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 318024GS

BREAKER-CIRCUIT

$375.99

$

Usually ships in 2-12 days

0

19

-----

* SCREW, #10-32 x 3/4

$

$

Not available

20

-----

* NUT, 1/4-20

$

$

Not available

21

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

22

-----

* WASHER, Lock, Ext, M6

$

$

Not available

23

Briggs & Stratton 315423GS

CONTROL PANEL

$441.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 199011GS

LUG

$8.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B318323GS

COVER-CONTROL PANEL BOX

$355.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 319391GS

DECAL

$51.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE

Note: (Not Illustrated)

$2.99

$

In Stock, only 2 left!

0
