040422-03 - Briggs & Stratton 19kW Home Standby Generator Control Panel Group Parts Diagram

19kW Home Standby Generator

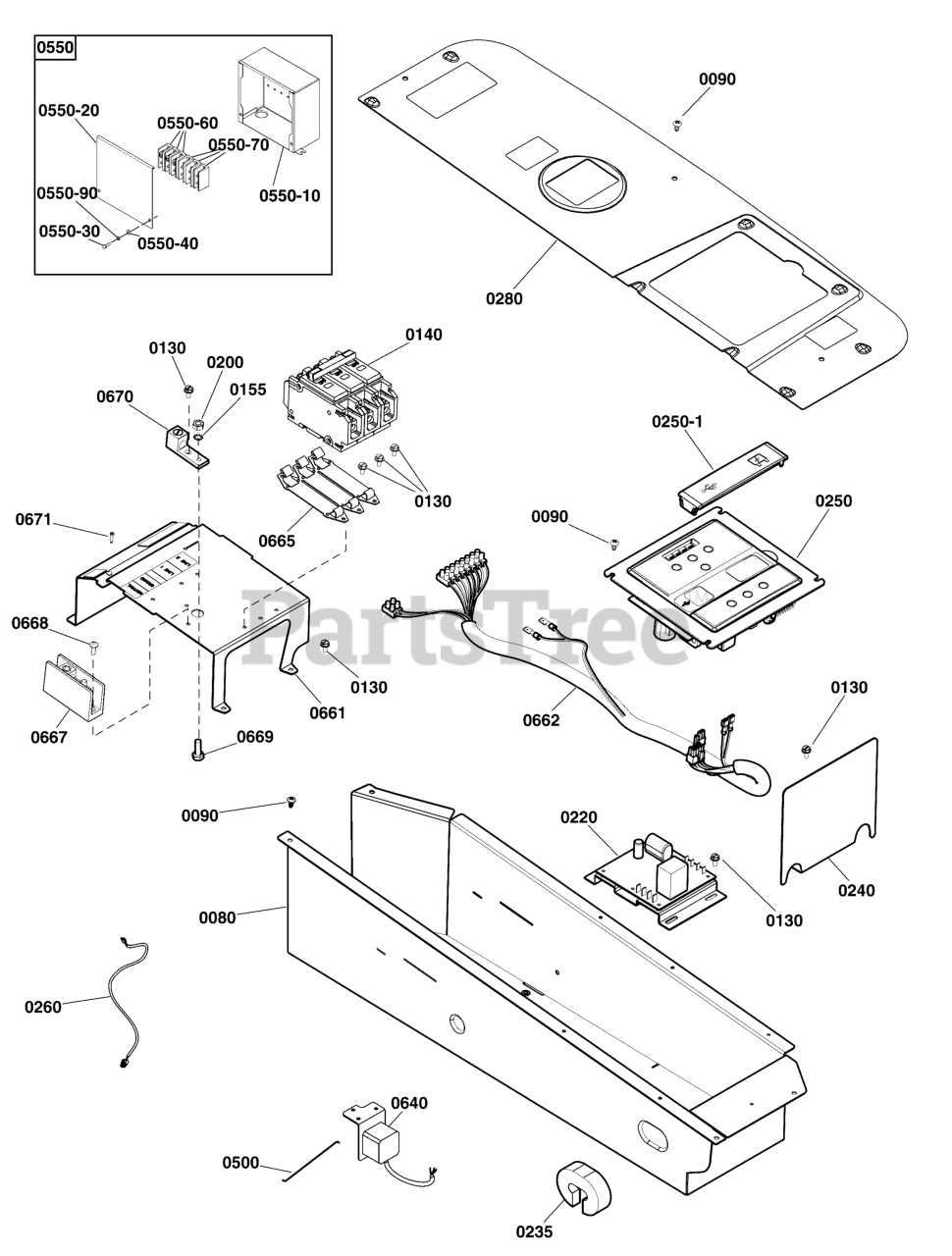

Control Panel Group Parts Diagram

  • Title

0080

Briggs & Stratton 314631GS

BOX, Control

$341.99

$

In Stock, only 1 left!

0

0090

* SCREW, #10-16 x 3/8

Note: (*See footnote)

$

$

Not available

0130

*TRILOBULAR, #10-32 x 3/8

Note: (*See footnote)

$

$

Not available

0140

Briggs & Stratton 318024GS

BREAKER, Circuit, 3-Pole, 70A

$352.99

$

Usually ships in 2-12 days

0

0155

* WASHER, External Lock, M6

Note: (*See footnote)

$

$

Not available

0200

* NUT, 1/4-20

Note: (*See footnote)

$

$

Not available

0220

Briggs & Stratton 709711

REGULATOR, Voltage

$384.99

$

Usually ships in 2-12 days

0

0235

Briggs & Stratton 708727

SEAL

$10.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 314632GS

BRACKET

$51.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 315423GS

CONTROL PANEL

Note: (**See Footnote)

$414.99

$

In Stock, only 1 left!

0

0250-1

Briggs & Stratton 319009GS

DOOR, Access

$8.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 317480GS

HARNESS, Wiring

$57.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 706060

COVER, Control Panel Box

$224.99

$

Usually ships in 2-12 days

0

0500

Briggs & Stratton 317323GS

ROD

$14.99

$

Usually ships in 2-12 days

0

0550

Briggs & Stratton 704424

TERMINATION BOX

$1163.99

$

Usually ships in 2-12 days

0

0550-10

Briggs & Stratton 319425GS

BOX

$318.99

$

Usually ships in 2-12 days

0

0550-20

Briggs & Stratton 704423

COVER

$186.99

$

Usually ships in 2-12 days

0

0550-30

* CAPSCREW, Hex Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

0550-40

* WASHER, Flat, 1/4

Note: (*See footnote)

$

$

Not available

0550-60

Briggs & Stratton 208365GS

BLOCK, Terminal

$14.99

$

In Stock, only 1 left!

0

0550-70

Briggs & Stratton 319043GS

TERMINAL BLOCK

$108.99

$

Usually ships in 2-12 days

0

0550-90

* WASHER, Lock, 1/4

Note: (*See footnote)

$

$

Not available

0640

Briggs & Stratton 707181

MOTOR, Stepper

$146.99

$

In Stock, only 1 left!

0

0661

Briggs & Stratton 318324GS

BRACKET

$170.99

$

Usually ships in 2-12 days

0

0662

Briggs & Stratton 314639GS

HARNESS-WIRE

$76.99

$

Usually ships in 2-12 days

0

0665

Briggs & Stratton 192770GS

BRACKET, Mounting / Breaker

$54.99

$

Usually ships in 2-12 days

0

0667

Briggs & Stratton 208365GS

BLOCK, Terminal

$14.99

$

In Stock, only 1 left!

0

0668

* SCREW, #10-32 x 3/4

Note: (*See footnote)

$

$

Not available

0669

* CAPSCREW, Hex Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

0670

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

0671

* SCREW, M2.5-0.45 x 12

Note: (*See footnote)

$

$

Not available

0672

Briggs & Stratton 6479

KIT, Off Board Radio

Note: (Not Illustrated)

$418.99

$

Usually ships in 2-12 days

0
