040451-02 - Briggs & Stratton 10kW Home Standby Generator with 100 Amp ATS Control Panel Parts Diagram

10kW Home Standby Generator with 100 Amp ATS

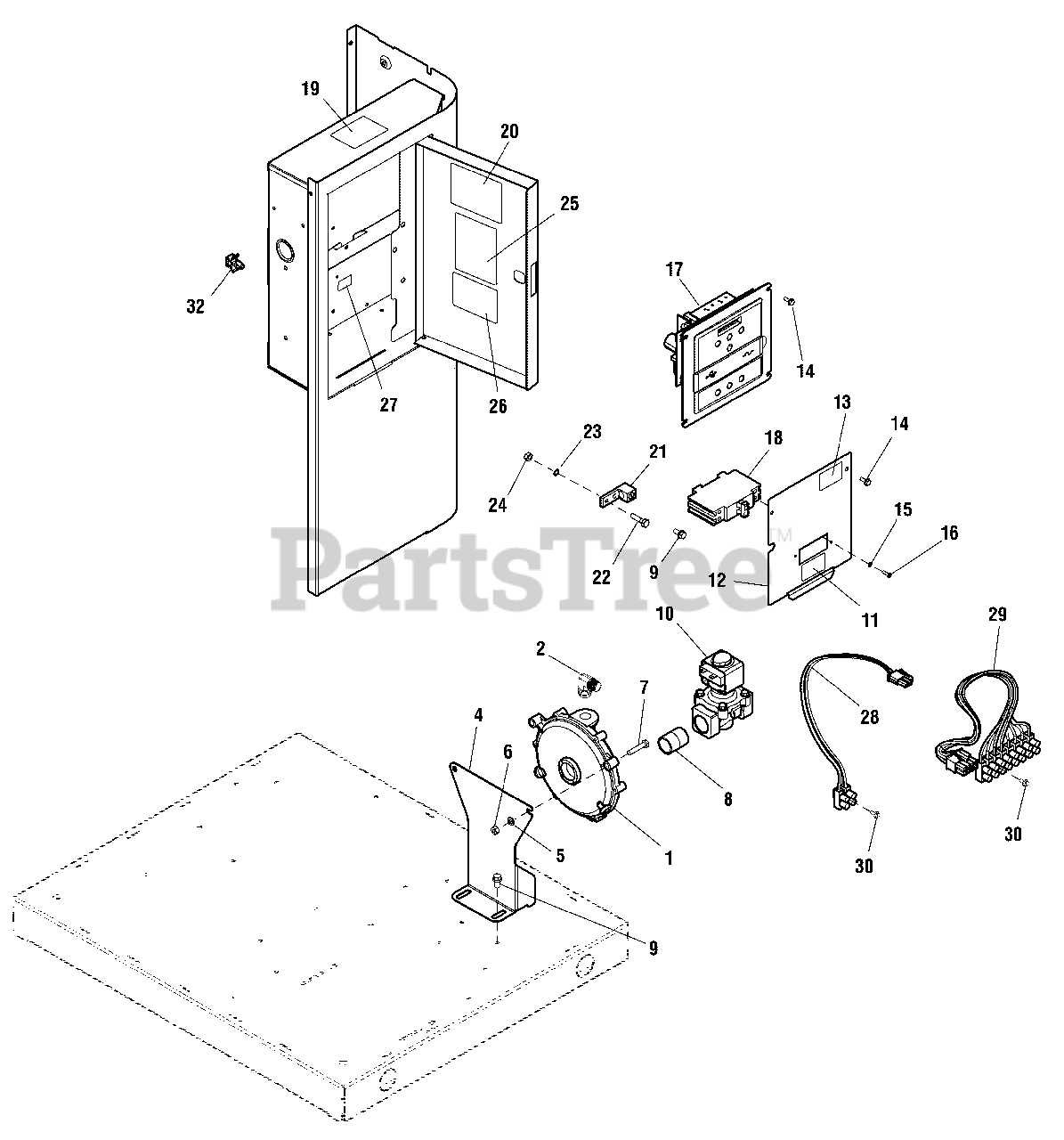

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 316866GS

REGULATOR, Fuel

$289.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205955GS

FITTING, Elbow, 1/2 Flare, 3/8 NPT

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 314629GS

BRACKET
(Superseded to 706379)

$19.99

$

Usually ships in 2-12 days

0

5

* WASHER, LOCK, M6 (or 1/4)

Note: (*See footnote)

$

$

Not available

6

* NUT, HEX, M6

Note: (*See footnote)

$

$

Not available

7

* CAPSCREW, HEX HEAD, M6-1.0 x 30

Note: (*See footnote)

$

$

Not available

8

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 318880GS

SOLENOID, Fuel

$365.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B316856GS

COVER-CONTROL BOX

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23364GS

WASHER, Shakeproof

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 36902GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 315423GS

CONTROL PANEL

Note: (**See Footnote)

$414.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 208790GS

BREAKER, Circuit, 50 Amp

$115.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

22

HARDWARE BAG, Broadmoor Adapter

Note: (*See footnote)

$

$

Not available

23

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

24

* NUT, 1/4-20

Note: (*See footnote)

$

$

Not available

25

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$27.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986AGS

Decal, Ground, Green
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 316812GS

HARNESS, Wiring

$27.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 316813GS

HARNESS, Wiring, Control Panel

$71.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 314691GS

SCREW, Taptite, M2.5-.45 X 12

$3.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 195733GS

MOUNT, Tie Wrap

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 316811GS

HARNESS, Wire Main

Note: (Not Illustrated)

$201.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 6479

KIT, Off Board Radio

Note: (Not Illustrated)

$418.99

$

Usually ships in 2-12 days

0
