040495-02 - Briggs & Stratton 8kW Home Standby Generator Control Panel (80005874) Parts Diagram

8kW Home Standby Generator

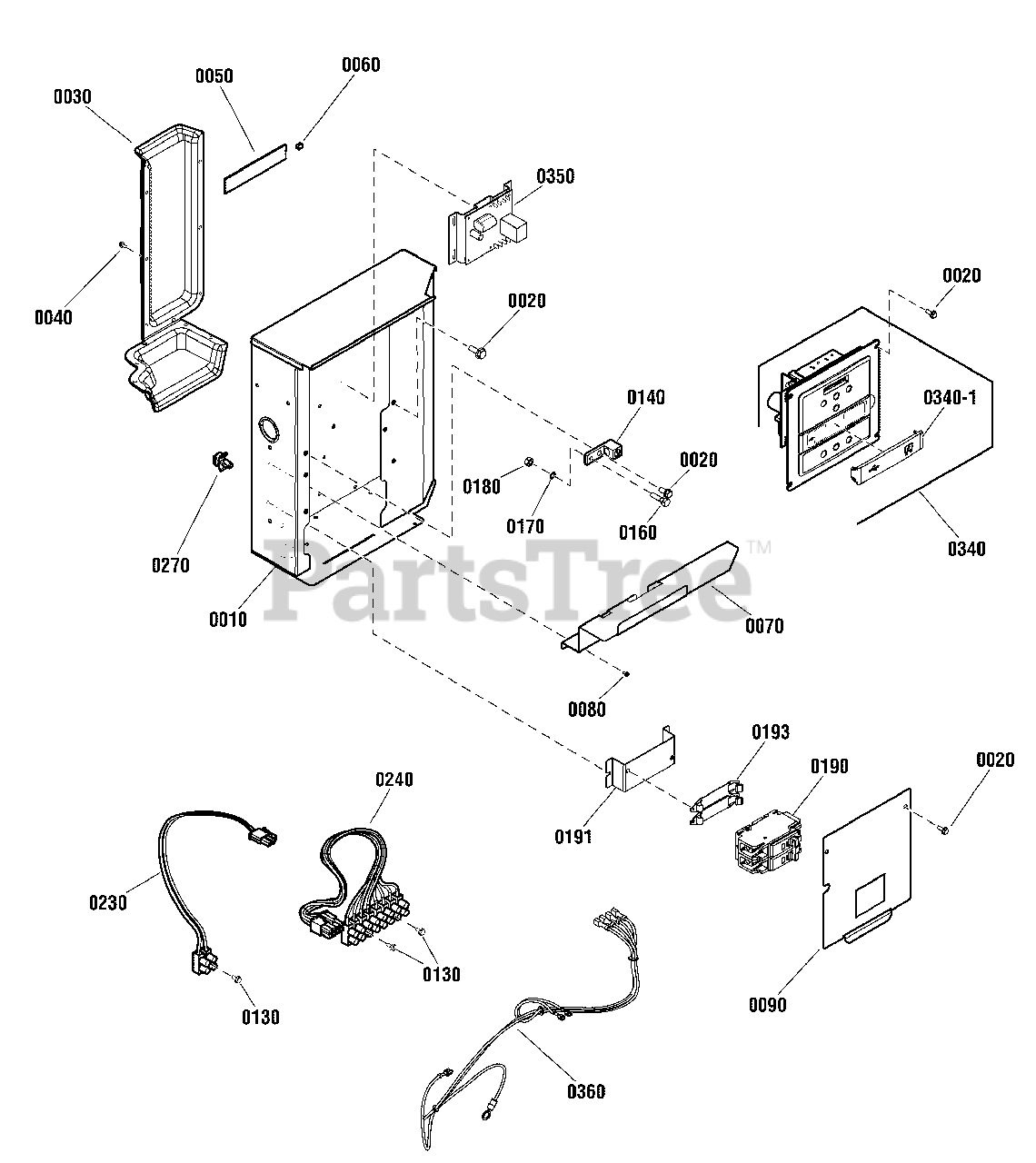

Control Panel (80005874) Parts Diagram

  • Title

0010

Briggs & Stratton 770030

CONTROL BOX

$148.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 200020GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 316861GS

DUCT-CONTROL BOX

$94.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton B4300GS

SCREW
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0050

Briggs & Stratton 316862GS

PANEL-DUCT

$8.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 314661GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 706027

DIVIDER-CONTROL BOX

$55.99

$

Usually ships in 2-12 days

0

0080

-----

* SCREW, Hex Head, Trilobular, #10-32 x 3/8

$

$

Not available

0090

Briggs & Stratton 706029

COVER-CONTROL BOX

$43.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 314691GS

SCREW

$3.99

$

In Stock, only 3 left!

0

0140

Briggs & Stratton 199011GS

LUG-GROUND

$8.49

$

Usually ships in 2-12 days

0

0160

-----

* CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

0170

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

0180

Briggs & Stratton 22127GS

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 706032

BREAKER-CIRCUIT

$152.99

$

Usually ships in 2-12 days

0

0191

Briggs & Stratton 706031

BRACKET

$46.99

$

Usually ships in 2-12 days

0

0193

Briggs & Stratton 192770GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 316811GS

HARNESS-WIRE MAIN

Note: (Not Illustrated)

$201.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 316812GS

HARNESS-WIRING

$27.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 316813GS

HARNESS-WIRING

$71.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 195733GS

CLIP

$3.49

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 319893GS

CONTROL PANEL

Note: (Includes Ref. No. 340-1)

$814.99

$

Usually ships in 2-12 days

0

0340-1

Briggs & Stratton 319009GS

DOOR-ACCESS

$8.49

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 704222

REGULATOR-VOLTAGE
(Superseded to 707769)

$372.99

$

Usually ships in 2-12 days

0

0360

Briggs & Stratton 704223

HARNESS-WIRE

Note: (AVR)

$60.99

$

Usually ships in 2-12 days

0
