040521-00 - GE 17kW Home Standby Generator Control Panel (80010701) Parts Diagram

GE 17kW Home Standby Generator

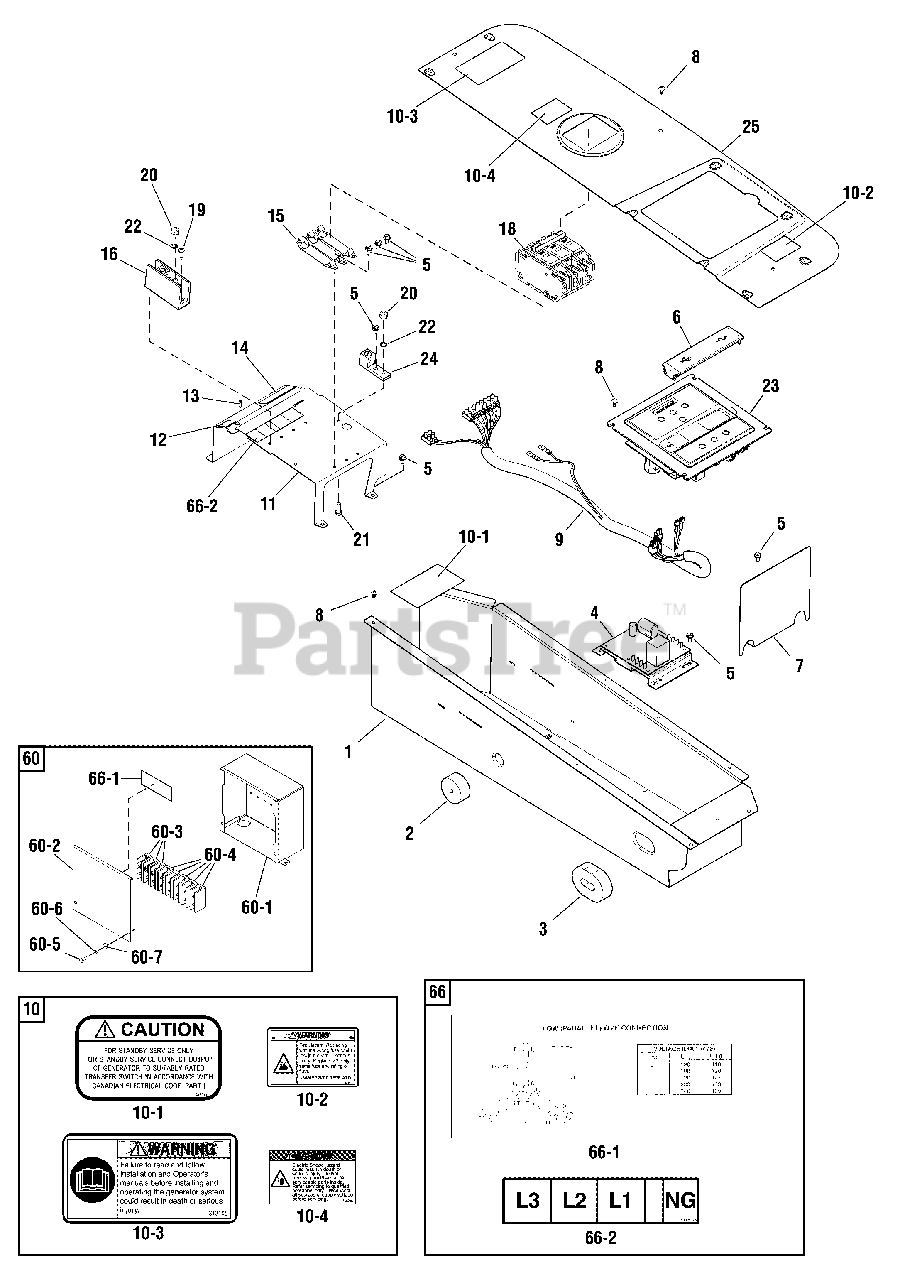

Control Panel (80010701) Parts Diagram

  • Title

1

Briggs & Stratton 314631GS

BOX, Control

$363.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 316948GS

SEAL

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316205GS

SEAL

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 316959GS

REGULATOR, Voltage
(Superseded to 84004625)

$495.99

$

Usually ships in 2-12 days

0

5

-----

* BOLT, Hex Head, #10-32 x 3/8

$

$

Not available

6

Briggs & Stratton 319009GS

DOOR, Access

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314632GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

8

-----

* SCREW, #10-32 x 3/8

$

$

Not available

9

Briggs & Stratton 314639GS

HARNESS

$81.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3 & 10-4)

$29.99

$

Usually ships in 2-12 days

0

10-1

-----

DECAL, Caution

$

$

Not available

10-2

-----

DECAL, Warning Fire Hazard

$

$

Not available

10-3

-----

DECAL, Warning Read Manual

$

$

Not available

10-4

-----

DECAL, Warning, Electric Shock

$

$

Not available

11

Briggs & Stratton 318324GS

BRACKET

$179.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 317371GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

13

-----

* SCREW, M2.5-0.45 x 8

$

$

Not available

14

Briggs & Stratton 317368GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192770GS

BRACKET

$56.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 208365GS

TERMINAL BLOCK

$17.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 318024GS

BREAKER, Circuit

$375.99

$

Usually ships in 2-12 days

0

19

-----

* SCREW, #10-32 x 3/4

$

$

Not available

20

-----

* NUT, 1/4-20

$

$

Not available

21

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

22

-----

* WASHER, External Lock, M6

$

$

Not available

23

Briggs & Stratton 314618GS

CONTROL PANEL
(Superseded to 315423GS)

$441.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 199011GS

LUG

$8.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 706060

COVER, Control Panel Box

$239.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE

$2.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 703569

TERMINATION BOX

Note: (Includes Ref Nos. 60-1, 60-2, 60-3, 60-4, 50-5, 60-6 & 66-1)

$1322.99

$

Usually ships in 2-12 days

0

60-1

Briggs & Stratton 319425GS

BOX

$338.99

$

Usually ships in 2-12 days

0

60-2

Briggs & Stratton 704422

COVER

Note: (Includes Ref. No. 66-1)

$113.99

$

Usually ships in 2-12 days

0

60-3

Briggs & Stratton 208365GS

TERMINAL BLOCK

$17.99

$

Usually ships in 2-12 days

0

60-4

Briggs & Stratton 319043GS

TERMINAL BLOCK

$115.99

$

Usually ships in 2-12 days

0

60-5

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

60-6

-----

* WASHER, Lock, 1/4

$

$

Not available

60-7

-----

* WASHER, Flat, 1/4

$

$

Not available

66

Briggs & Stratton 319391GS

DECAL SHEET-VOLTAGE

Note: (Includes Ref. Nos. 66-1 & 66-2)

$51.99

$

Usually ships in 2-12 days

0

66-1

-----

DECAL, Voltage

$

$

Not available

66-2

-----

DECAL, Line/Neutral

$

$

Not available
