040542-01 - Briggs & Stratton Fortress 22kW Home Standby Generator Enclosure Group Parts Diagram

Fortress 22kW Home Standby Generator

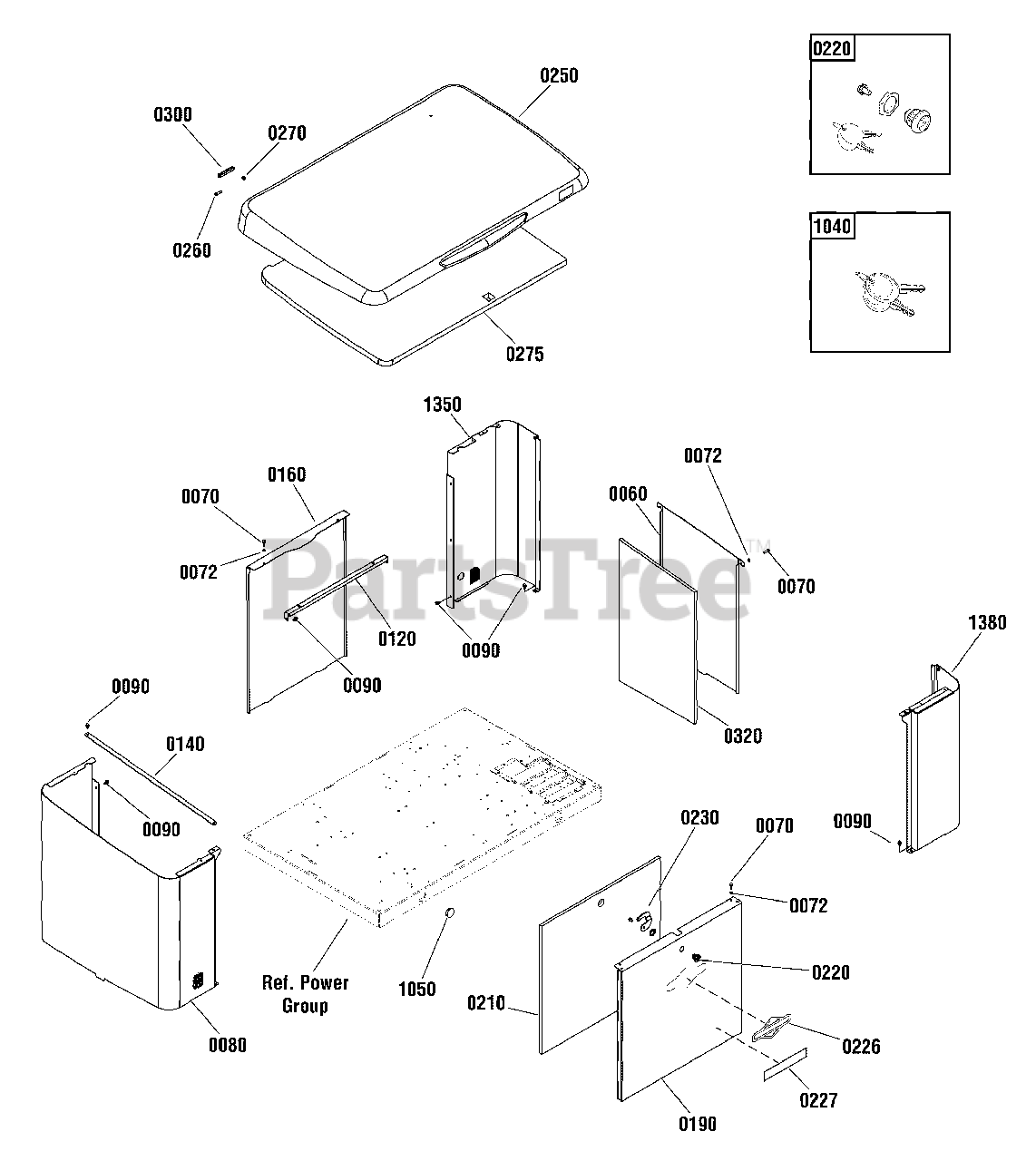

Enclosure Group Parts Diagram

  • Title

0060

Briggs & Stratton *** NEW PART

PANEL, End, Right

Note: NO ASSY REQD

$

$

Currently unavailable

0070

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

0072

* WASHER, External Lock, M6

$

$

Not available

0080

Briggs & Stratton *** NEW PART

PANEL, End, Left

Note: NO ASSY REQD

$

$

Currently unavailable

0090

Briggs & Stratton B4300GS

BOLT, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0120

Briggs & Stratton 314652GS

SUPPORT, Rail

$86.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 314638GS

SUPPORT, Rail

$34.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton *** NEW PART

PANEL, Back

Note: no assy reqd

$

$

Currently unavailable

0190

Briggs & Stratton *** NEW PART

PANEL, Front

Note: assy reqd

$

$

Currently unavailable

0210

Briggs & Stratton 315447GS

INSULATION

$199.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 314619GS

LATCH

$21.99

$

Usually ships in 2-12 days

0

0226

Briggs & Stratton 770017

DECAL

$18.99

$

Usually ships in 2-12 days

0

0227

Briggs & Stratton 770458

BADGE, Fortress

$13.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 315443GS

LATCH, Arm

$8.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton *** NEW PART

ROOF

Note: assy req'd

$

$

Currently unavailable

0260

Briggs & Stratton 311644GS

SCREW, 5/16-18 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0270

* NUT, Flange, 1/4-20

$

$

Not available

0275

Briggs & Stratton 315452GS

INSULATION

$369.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 316954GS

TRIM

$7.49

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 315453GS

INSULATION

$170.99

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 314290GS

KEY, Latch

$16.99

$

In Stock, only 1 left!

0

1050

Briggs & Stratton 198460GS

PLUG

$3.49

$

Usually ships in 2-12 days

0

1350

Briggs & Stratton *** NEW PART

PANEL, Corner

$

$

Currently unavailable

1380

Briggs & Stratton *** NEW PART

PANEL, Corner

$

$

Currently unavailable

--

Briggs & Stratton 316193GS

PLUG, Roof

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0
