040578-00 - Briggs & Stratton Fortress 12kW Home Standby Generator Enclosure Parts Diagram

Fortress 12kW Home Standby Generator

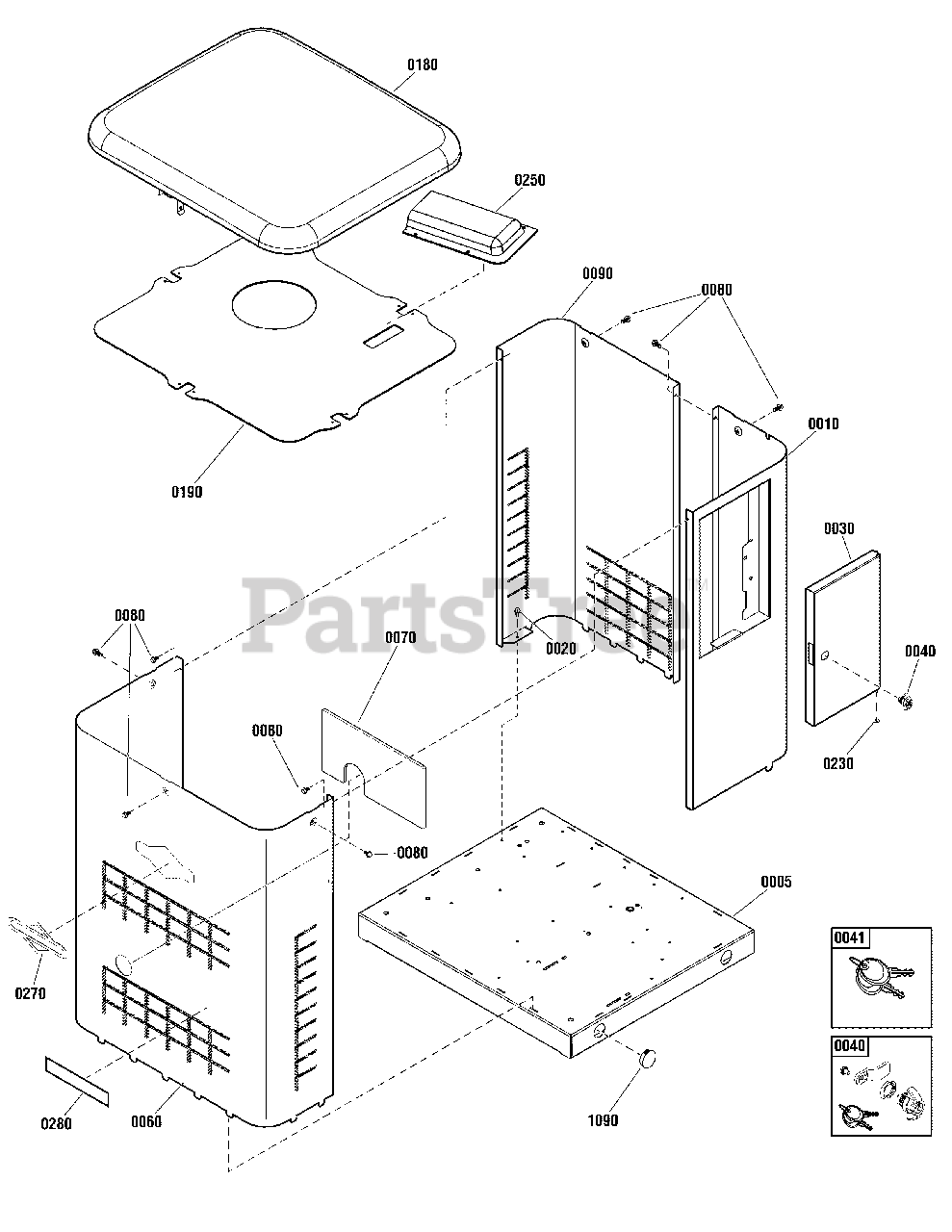

Enclosure Parts Diagram

  • Title

0005

Briggs & Stratton 772001

BASE, Enclosure

$

$

Currently unavailable

0010

Briggs & Stratton 772002

PANEL, Right, Back

$

$

Currently unavailable

0020

SCREW, 1/4-20 X .500, Hex Washer SL HD, ZC/CL

Note: (*See footnote)

$

$

Not available

0030

Briggs & Stratton 772003

DOOR ASSEMBLY, Enclosure

$

$

Currently unavailable

0040

Briggs & Stratton 204700GS

KIT, Door Latch

$24.99

$

Usually ships in 2-12 days

0

0041

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

Usually ships in 2-12 days

0

0055

Briggs & Stratton 706937

PLUG

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 772004

PANEL, Front Exhaust

$

$

Currently unavailable

0070

Briggs & Stratton 706938

PANEL, Muffler Guard

$84.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 703884

SCREW

$4.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 772005

PANEL, Left, Back

$

$

Currently unavailable

0180

Briggs & Stratton 772006

ROOF, Enclosure

$

$

Currently unavailable

0190

Briggs & Stratton 316835GS

PANEL, Roof

$100.99

$

In Stock, only 1 left!

0

0230

Briggs & Stratton 703929

WASHER-FLAT, NYLON

$3.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 706939

DUCT

$66.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 770011

DECAL

$32.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 770458

BADGE, Fortress

$13.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 198460GS

PLUG, Dome

$3.49

$

Usually ships in 2-12 days

0
