040580-00 - Briggs & Stratton 20kW Home Standby Generator Enclosure Group (80022834) Parts Diagram

20kW Home Standby Generator

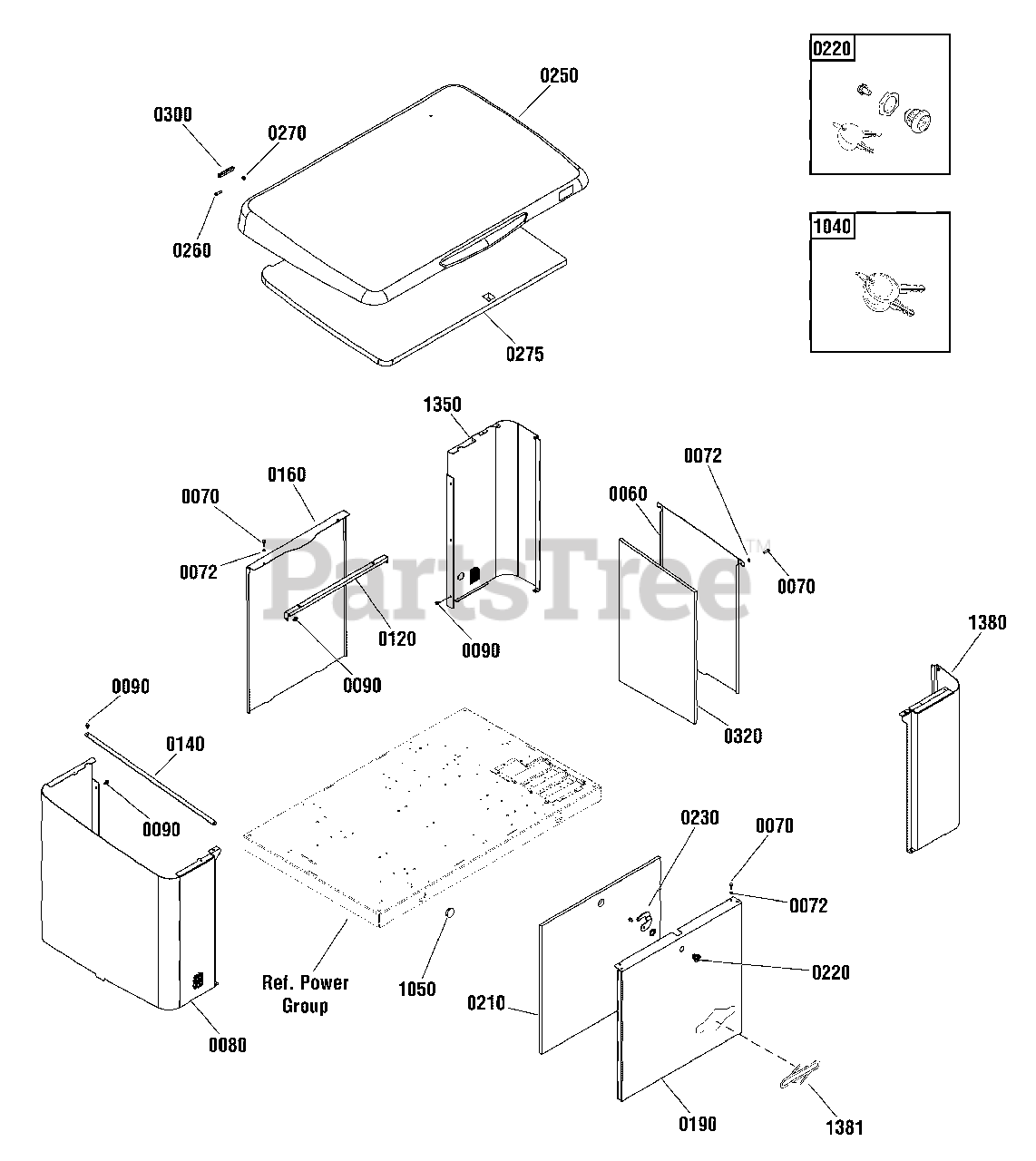

Enclosure Group (80022834) Parts Diagram

  • Title

0060

Briggs & Stratton AR314694GS

PANEL, End, Right

$450.99

$

Usually ships in 2-12 days

0

0070

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

0072

-----

* WASHER, External Lock, M6

$

$

Not available

0080

Briggs & Stratton AR31464GS

PANEL, End, Left

$

$

Not available

0090

Briggs & Stratton B4300GS

BOLT, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0120

Briggs & Stratton 314652GS

SUPPORT, Rail

$91.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 314638GS

SUPPORT, Rail

$37.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton AR314651GS

PANEL, Back

$291.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 770682

PANEL, Front

$413.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 315447GS

INSULATION

$212.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 314619GS

LATCH

$22.99

$

In Stock, only 2 left!

0

0230

Briggs & Stratton 315443GS

LATCH, Arm

$9.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton BG314617GS

ROOF

$

$

Not available

0260

Briggs & Stratton 311644GS

SCREW, 5/16-18 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0270

-----

* NUT, Flange, 1/4-20

$

$

Not available

0275

Briggs & Stratton 315452GS

INSULATION

$393.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 316954GS

TRIM

$7.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 315453GS

INSULATION

$181.99

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 314290GS

KEY, Latch

$17.99

$

In Stock, only 2 left!

0

1050

Briggs & Stratton 198460GS

PLUG

$3.49

$

In Stock, Qty 13

0

1350

Briggs & Stratton AR314644GS

PANEL, Corner

$362.99

$

Usually ships in 2-12 days

0

1380

Briggs & Stratton AR314681GS

PANEL, Corner

$321.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316193GS

PLUG, Roof

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0

1381

Briggs & Stratton 770042

DECAL, Plate

$15.99

$

Usually ships in 2-12 days

0
