040580-02 - Briggs & Stratton 20kW Home Standby Generator Power Group Parts Diagram

20kW Home Standby Generator

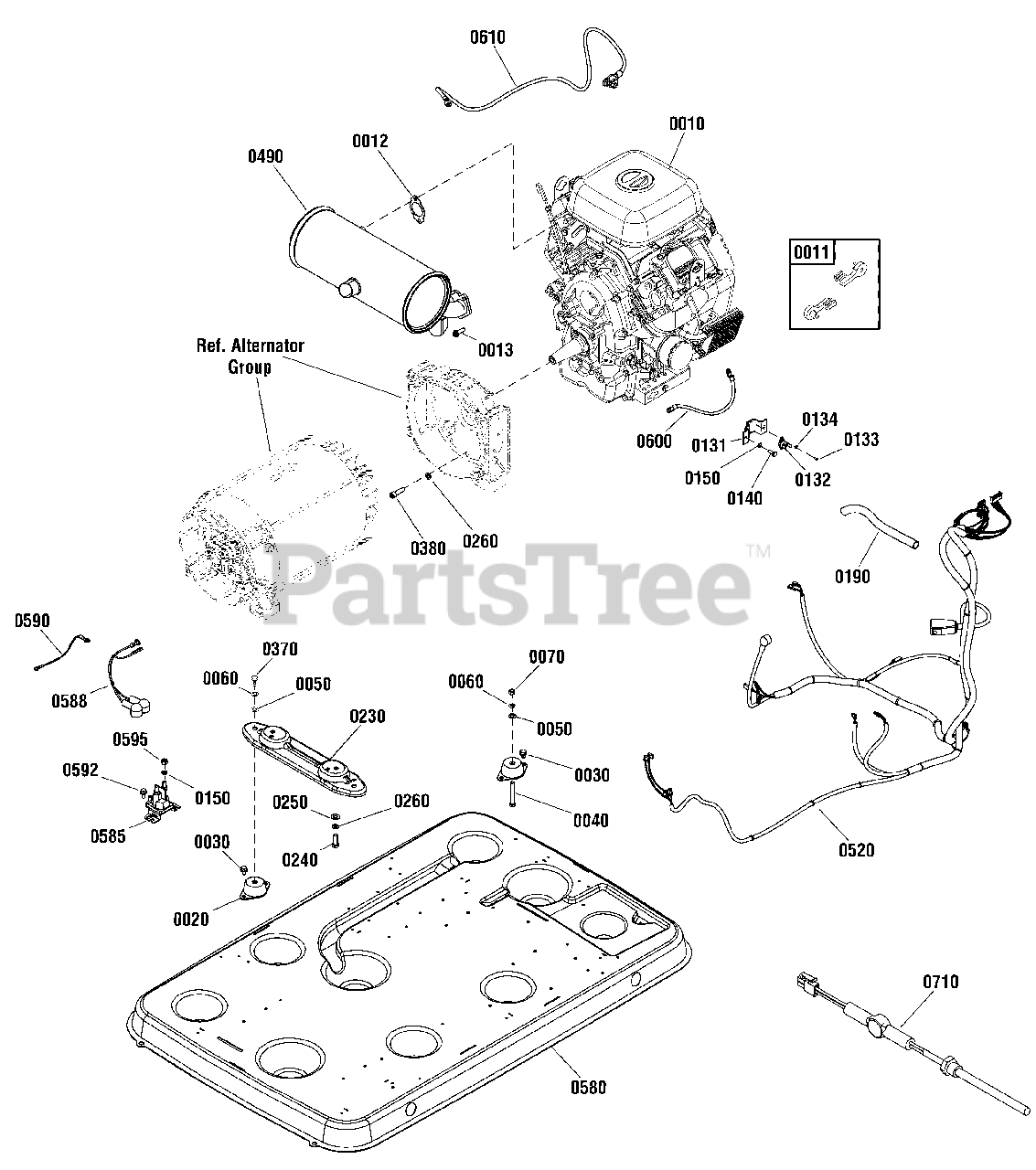

Power Group Parts Diagram

  • Title

0010

Briggs & Stratton 61H275-0006-E1

**ENGINE

$

$

Currently unavailable

0011

Briggs & Stratton 845699

Clevis

$8.49

$

Usually ships in 2-12 days

0

0012

Briggs & Stratton 809872

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

0013

* SCREW, M8 x 25

$

$

Not available

0020

Briggs & Stratton 187594GS

MOUNT, Vibration

$64.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 24910GS

*CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2

$3.99

$

Usually ships in 2-12 days

0

0040

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

0050

* WASHER, Flat, M8

$

$

Not available

0060

* WASHER, Lock, M8

$

$

Not available

0070

* NUT, 5/16-18

$

$

Not available

0131

Briggs & Stratton 313561GS

PLATE, Temp Switch

$54.99

$

Usually ships in 2-12 days

0

0132

Briggs & Stratton 204426GS

SWITCH, Temperature

$38.99

$

Usually ships in 2-12 days

0

0133

Briggs & Stratton 708730

SCREW

$4.99

$

Usually ships in 2-12 days

0

0134

* WASHER, Shakeproof, #4

$

$

Not available

0140

Briggs & Stratton 47411GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0150

* WASHER, Lock, 1/4

$

$

Not available

0190

Briggs & Stratton 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton B198896GS

BRACKET, Mounting Alternator, Black

$41.99

$

Usually ships in 2-12 days

0

0240

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

0250

* WASHER, Flat, M10

$

$

Not available

0260

* WASHER, Lock, 3/8

$

$

Not available

0370

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

0380

Briggs & Stratton 23645GS

SOCKET HEAD CAP SCREW, 3/8-16 x 1-1/4"

$4.49

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 314663GS

MUFFLER

$410.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 314637GS

HARNESS, Wiring

$547.99

$

Usually ships in 2-12 days

0

0580

Briggs & Stratton 706061

BASE

$979.99

$

Usually ships in 2-12 days

0

0585

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 13

0

0588

Briggs & Stratton 316188GS

HARNESS

$57.99

$

Usually ships in 2-12 days

0

0590

Briggs & Stratton 316961GS

WIRE, Ground Relay

$15.99

$

Usually ships in 2-12 days

0

0592

Briggs & Stratton B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0595

* NUT, 1/4-20

$

$

Not available

0600

Briggs & Stratton 706527

WIRE, Ground

$31.99

$

Usually ships in 2-12 days

0

0610

Briggs & Stratton 314640GS

WIRE, Battery, Ground

$96.99

$

Usually ships in 2-12 days

0

0710

Briggs & Stratton 316191GS

OIL WARMER
(Superseded to 771985)

$152.99

$

Usually ships in 2-12 days

0
