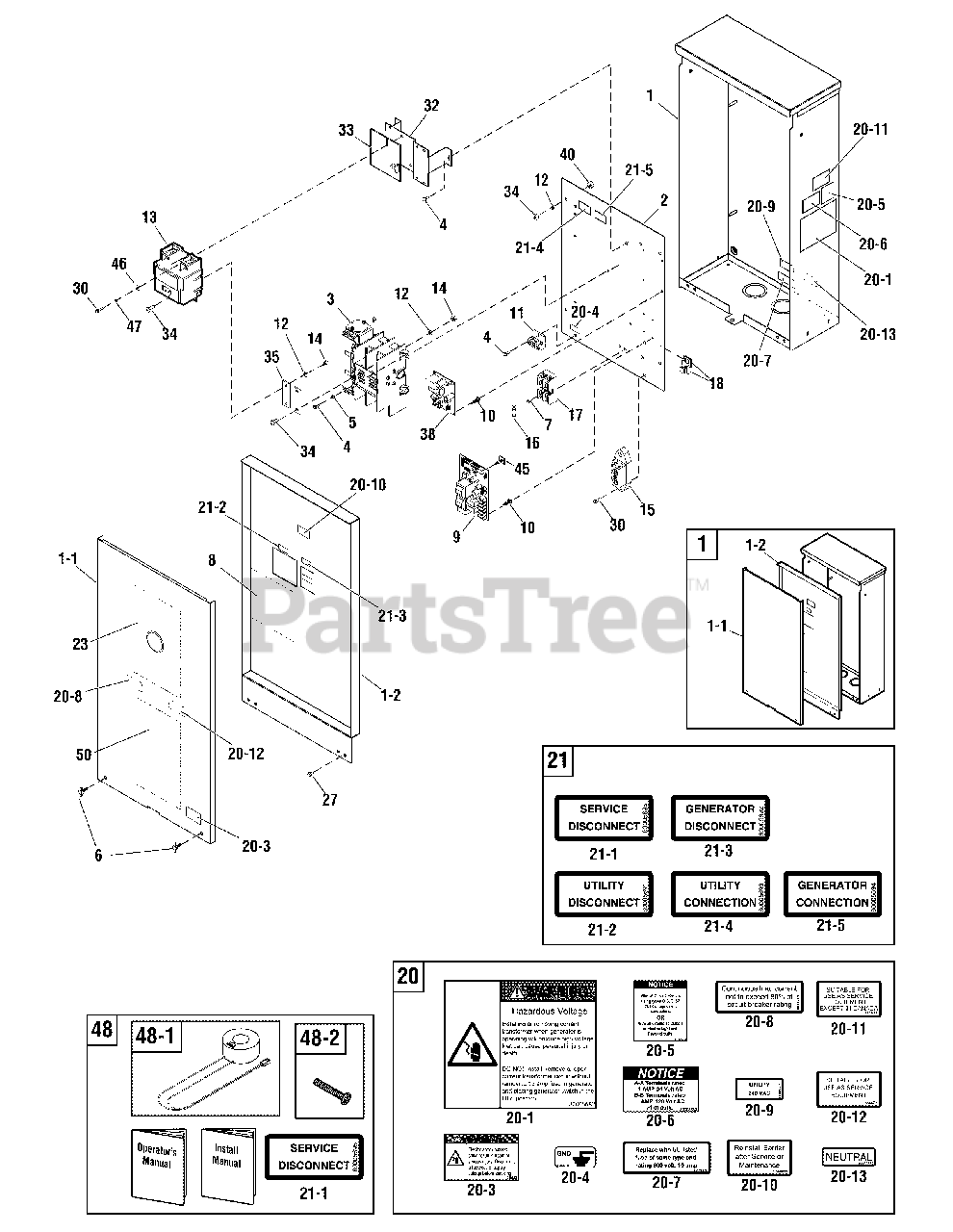

040584-00 - Briggs & Stratton 20kW Home Standby Generator with 200 Amp ATS Transfer Switch - Hingeless Enclosure Parts Diagram

20kW Home Standby Generator with 200 Amp ATS

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

1

ENCLOSURE

$

$

Not available

1-1

Briggs & Stratton 705952

DOOR

$223.99

$

Usually ships in 2-12 days

0

1-2

Briggs & Stratton 706782

DEADFRONT

$305.99

$

Usually ships in 2-12 days

0

2

PANEL, Back

$

$

Not available

3

Briggs & Stratton 771576

ASSEMBLY, Contactor w/ Busbar
(Superseded to 315050GS)

$863.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23762GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 315108GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192730GS

TAPTITE, 6-32 X 3/8

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 193664GS

INSULATION, Dead Front

$22.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 770434

BOARD, Circuit

$93.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG, Ground
(Superseded to 84006973)

$43.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$221.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22127GS

NUT, Hex, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL, Neutral

$36.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$33.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 770133

DECAL SHEET - WARNINGS

Note: (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12)

$45.99

$

Usually ships in 2-12 days

0

20-3

DECAL-WARNING, ELECTRIC SHOCK

$

$

Not available

20-4

DECAL-WARNING, ELECTRIC SHOCK

$

$

Not available

20-5

DECAL, Notice, Contacts Rated

$

$

Not available

20-6

DECAL, Notice, Wire Circuits

$

$

Not available

20-7

DECAL-FUSE REPLACEMENT

$

$

Not available

20-8

DECAL, Breaker, Circuit

$

$

Not available

20-9

DECAL-NEUTRAL

$

$

Not available

20-10

DECAL-GROUND

$

$

Not available

20-11

DECAL, Utility 240VAC

$

$

Not available

20-12

DECAL, Suitable as Service Equipment

$

$

Not available

20-13

DECAL, Reinstall Barrier

$

$

Not available

20-16

DECAL, Generator Service Disconnect

$

$

Not available

20-17

DECAL, Service Disconnect

$

$

Not available

20-18

DECAL, Disconnect, Utility

$

$

Not available

20-19

DECAL, Connection, Utility

$

$

Not available

20-20

DECAL, Connection, Generator

$

$

Not available

20-21

DECAL, Location

$

$

Not available

23

Briggs & Stratton 709510

DECAL, Transfer Switch, 200 Amp

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B5763GS

TRILOBULAR, #10-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 770433

BRACKET

$27.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.99

$

Usually ships in 2-12 days

0

34

SCREW, Phillips Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

38

Briggs & Stratton 770434

BOARD, Circuit

$93.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22152GS

WASHER, Lock, #10

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706830

KIT, Manual Acc

Note: (Includes Ref. Nos. 48-1, 48-2, 48-3 & Manual.)

$201.99

$

Usually ships in 2-12 days

0

48-1

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$34.99

$

Usually ships in 2-12 days

0

48-2

Briggs & Stratton 193306GS

SCREW, 1/4-20 Bndng, w/Envlp

$6.99

$

Usually ships in 2-12 days

0

48-3

DECAL, Service Disconnect

$

$

Not available

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6309

KIT, Circuit Breaker

Note: (Optional Accessory - Not Included)

$169.99

$

Usually ships in 2-12 days

0
