040593-00 - Briggs & Stratton 10kW Home Standby Generator With 100 Amp ATS Enclosure Parts Diagram

10kW Home Standby Generator With 100 Amp ATS

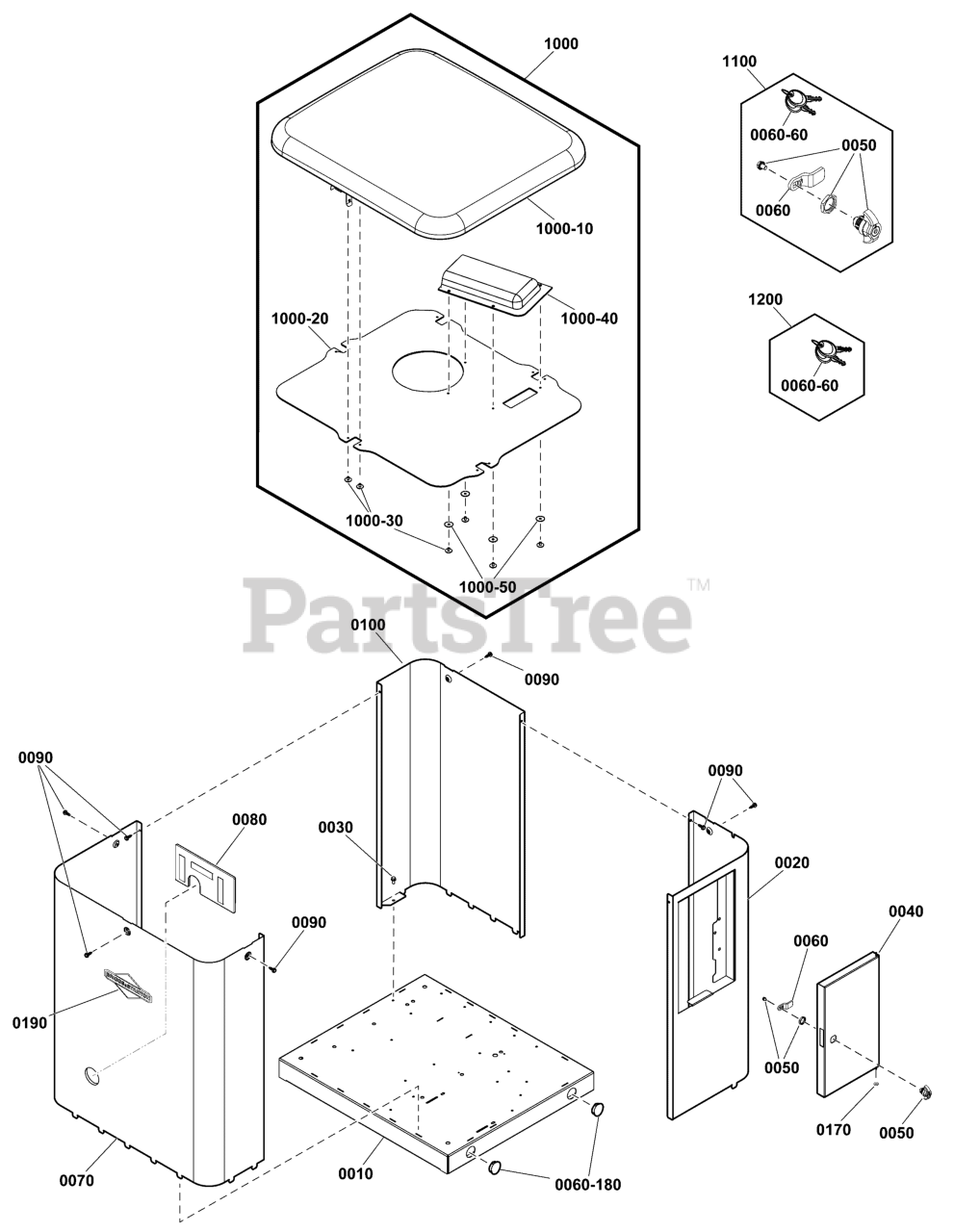

Enclosure Parts Diagram

  • Title

0010

Briggs & Stratton B316878GS

BASE

$296.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 706383

PANEL-RIGHT BACK

$

$

Currently unavailable

0030

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0040

Briggs & Stratton AR316870GS

DOOR ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 204700GS

KIT-LATCH

$24.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 196001GS

LATCH-ARM

$2.99

$

Usually ships in 2-12 days

0

0060-180

Briggs & Stratton 198460GS

PLUG, Dome

$3.49

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 770009

PANEL-FRONT

$364.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 316850GS

PANEL-MUFFLER GUARD

$74.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 703884

SCREW

$4.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton AR316859GS

PANEL-LEFT BACK

$426.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 316835GS

PANEL

$100.99

$

In Stock, only 1 left!

0

0170

Briggs & Stratton 703929

WASHER-NYLON

$3.49

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 770058

BADGE

$44.99

$

Usually ships in 2-12 days

0

1000

Briggs & Stratton 770010

ASSEMBLY, Roof

Note: (Incl. Ref. Nos. 1000-10, 1000-20, 1000-30, 1000-40, 1000-50)

$890.99

$

Usually ships in 2-12 days

0

1000-10

ENCLOSURE, Roof

$

$

Not available

1000-20

Briggs & Stratton 316835GS

PANEL, Roof

$100.99

$

In Stock, only 1 left!

0

1000-30

RIVET, BLIND, 3/16 X 5/8

$

$

Not available

1000-40

Briggs & Stratton 706939

DUCT

$66.99

$

Usually ships in 2-12 days

0

1000-50

WASHER, Flat, #10, Fender

$

$

Not available

1100

Briggs & Stratton 204700GS

KIT, Door Latch

Note: (Incl. Ref. Nos. 0050, 0060, 0060-70)

$24.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 195998GS

KIT, Door Latch
(Superseded to 198889GS)

$48.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 196001GS

LATCH-ARM

$2.99

$

Usually ships in 2-12 days

0

0060-60

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

Usually ships in 2-12 days

0

1200

Briggs & Stratton 207652GS

SET, Latch Key, Plain

Note: (Incl. Ref. No. 0060-70)

$19.99

$

Usually ships in 2-12 days

0
