040611-00 - Briggs & Stratton 12kW Home Standby Generator Enclosure Group Parts Diagram

12kW Home Standby Generator

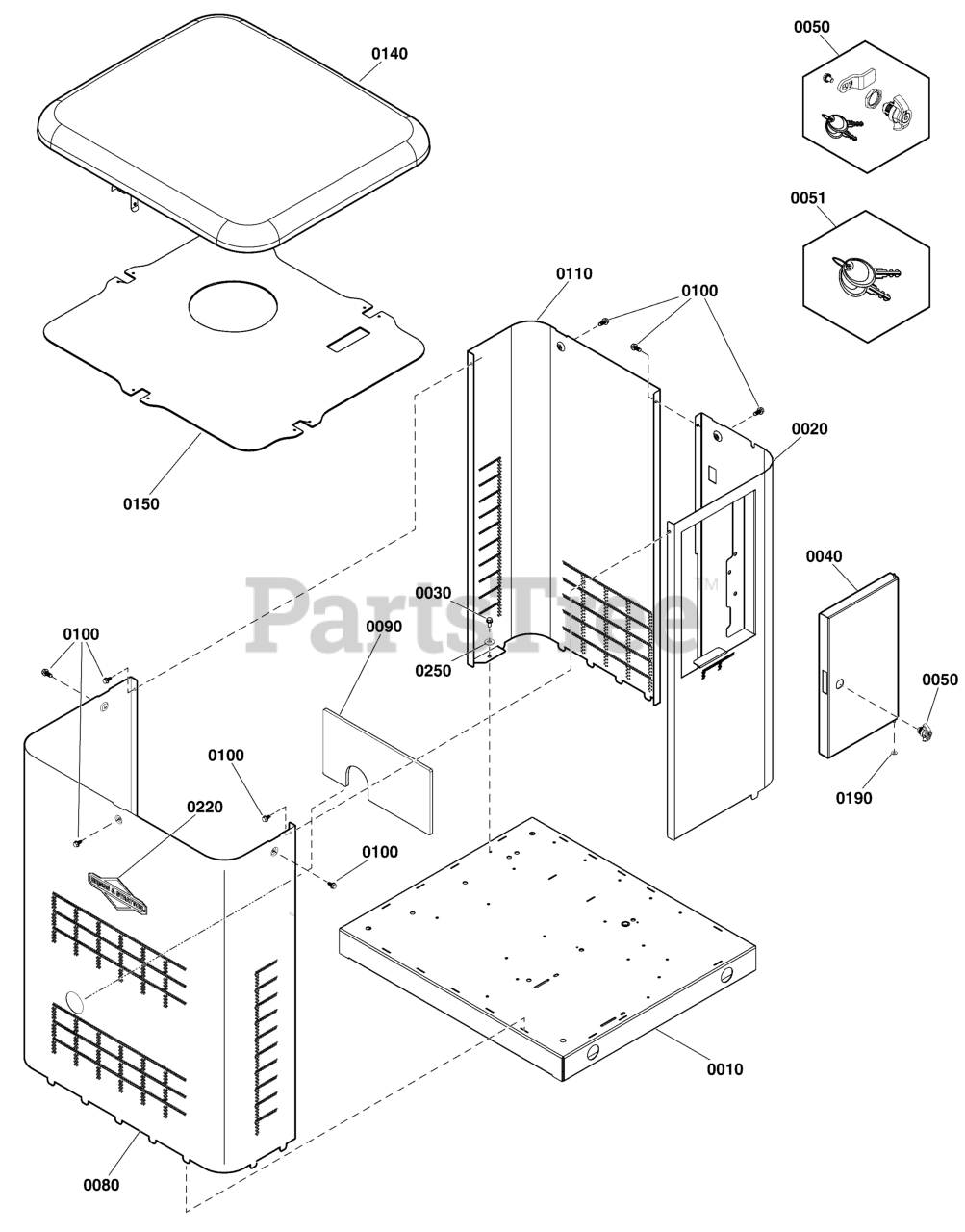

Enclosure Group Parts Diagram

  • Title

0010

Briggs & Stratton 704967

BASE

$330.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 772352

PANEL, Right Back

$330.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0040

Briggs & Stratton 772353

DOOR, Enclosure

$56.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 195998GS

KIT, Door Latch
(Superseded to 198889GS)

$48.99

$

Usually ships in 2-12 days

0

0051

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 706937

PLUG

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 772382

PANEL, Front

$537.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 706938

PANEL, Muffler Guard

$84.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 703884

SCREW

$4.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 772355

PANEL, Left Back

$319.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 84002199

ROOF, Enclosure

$423.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 772349

PANEL, Roof Divider

$129.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 703929

WASHER-FLAT, NYLON

$3.49

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 770042

DECAL, Plate

$14.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 316193GS

PLUG, Roof

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0
