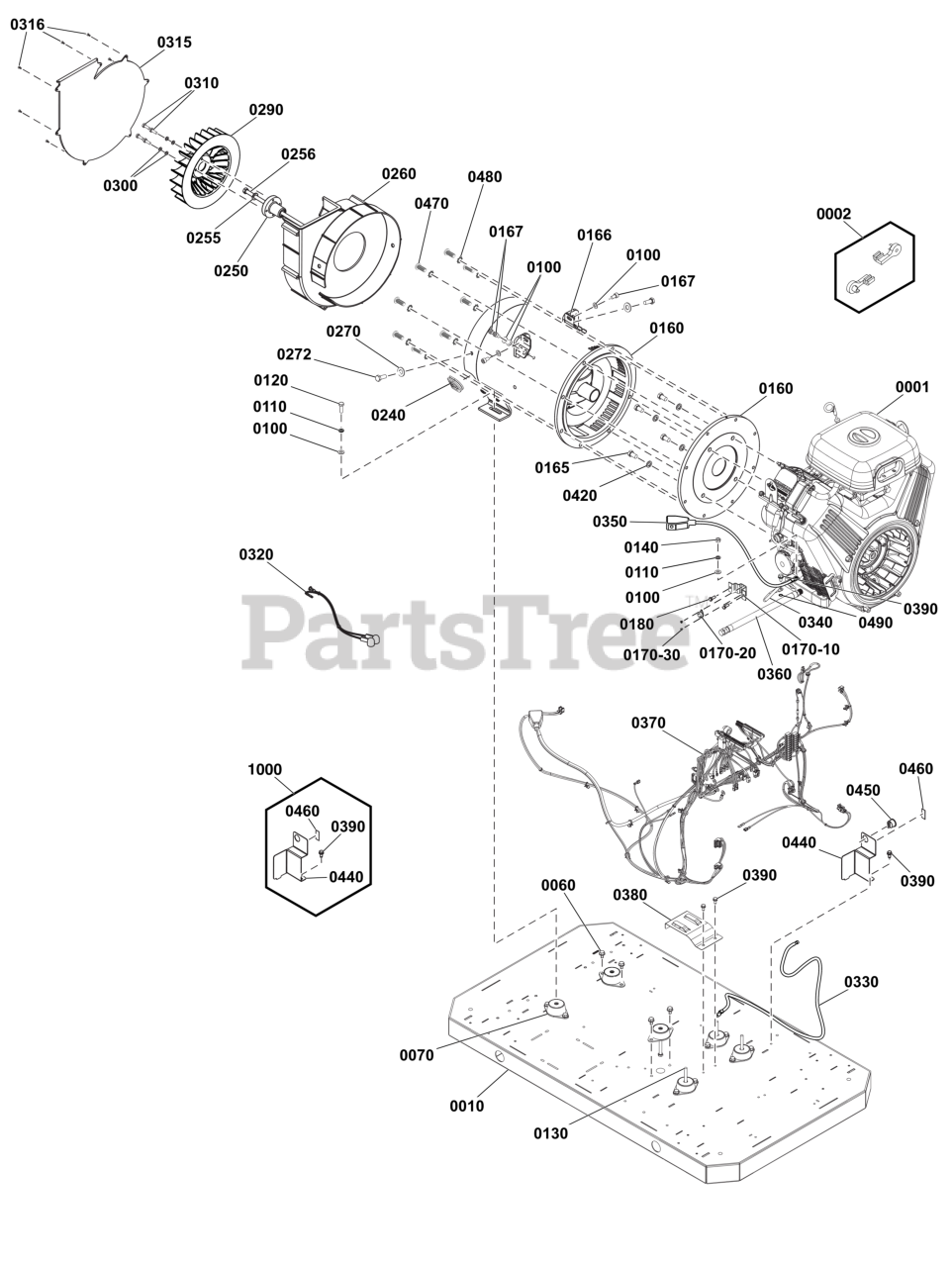

040679-00 - Briggs & Stratton 26kW Home Standby Generator with 200 Amp ATS, ACCM NEMA 3R Power Group Parts Diagram

26kW Home Standby Generator with 200 Amp ATS, ACCM NEMA 3R

Power Group Parts Diagram

  • Title

0001

**ENGINE

Note: (**See footnote)

$

$

Not available

0002

Briggs & Stratton 845699

CLEVIS

$8.99

$

Usually ships in 2-12 days

0

0010

BASE

$

$

Not available

0060

Briggs & Stratton 24910GS

*CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 84007023

MOUNT, Vibration

$27.99

$

Usually ships in 0 days

0

0100

Briggs & Stratton 22145GS

WASHER, Flat, 5/16 - M8
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

0110

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

0120

Briggs & Stratton 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0130

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

0140

Briggs & Stratton 22259GS

NUT, 5/16 - 18
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 84007089

ALTERNATOR

$3530.99

$

Usually ships in 2-12 days

0

0165

Briggs & Stratton 26359

7/16-14 x 3/4" Hex Head Bolt

$

$

Currently unavailable

0166

BRACKET

$

$

Not available

0167

Briggs & Stratton 52829GS

SHCS, M8-1.25 X 14

$

$

Not available

0170-10

Briggs & Stratton 313561GS

PLATE, Temp Switch

$58.99

$

Usually ships in 2-12 days

0

0170-20

Briggs & Stratton 204426GS

SWITCH, Temperature

$40.99

$

In Stock, only 2 left!

0

0170-30

Briggs & Stratton 708730

SCREW, 4-40 X 3/16

$4.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 47411GS

SCREW

$

$

Not available

0240

Briggs & Stratton 315440GS

GROMMET

$7.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 84007022

HUB, Fan

$17.99

$

Usually ships in 2-12 days

0

0255

Briggs & Stratton 203200GS

WASHER, 3/8 SAE

$4.49

$

Usually ships in 2-12 days

0

0256

Briggs & Stratton 315203GS

BOLT

$21.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 84007133

SHROUD, Fan

$

$

Currently unavailable

0270

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 17

0

0272

SCREW, M10-1.5 X 25

$

$

Not available

0290

Briggs & Stratton 84007131

FAN

$33.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0310

Briggs & Stratton 22287GS

SCREW, 1/4" - 20 x 3/4"
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0315

Briggs & Stratton 84007132

COVER, Fan

$45.99

$

Usually ships in 2-12 days

0

0316

Briggs & Stratton 36917

SCREW, Pan Head Machine - No. 8-32 x 3/8"
(Superseded to 797483)

$4.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 84007026

HARNESS, Intermediate, Relay

$

$

Currently unavailable

0330

Briggs & Stratton 84007028

WIRE, Power

$

$

Currently unavailable

0340

Briggs & Stratton 706527

WIRE, Ground

$33.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 84007025

WIRE, Battery, Ground

$8.49

$

Usually ships in 0 days

0

0360

Briggs & Stratton 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

0370

Briggs & Stratton 84007027

HARNESS, Wiring

$506.99

$

Usually ships in 2-12 days

0

0380

BRACKET, Heater

$

$

Not available

0390

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0420

WASHER, Lock, 7/16

$

$

Not available

0450

Briggs & Stratton 315551GS

SWITCH, Rocker

$6.49

$

Usually ships in 2-12 days

0

1000

Briggs & Stratton 84007226

KIT, Bracket, Fuel Selector

Note: (Incl. Ref. Nos. 0390, 0440, 0460)

$34.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0440

BRACKET, Fuel Selector

$

$

Not available

0460

DECAL, Fuel Selection

$

$

Not available

0470

SCREW, M10 X 25

$

$

Not available

0480

Briggs & Stratton 193686GS

WSHR, M10, SHKPRF, EXT

$4.49

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0
