040746-00 - Briggs & Stratton 13kW Home Standby Generator Power Group Parts Diagram

13kW Home Standby Generator

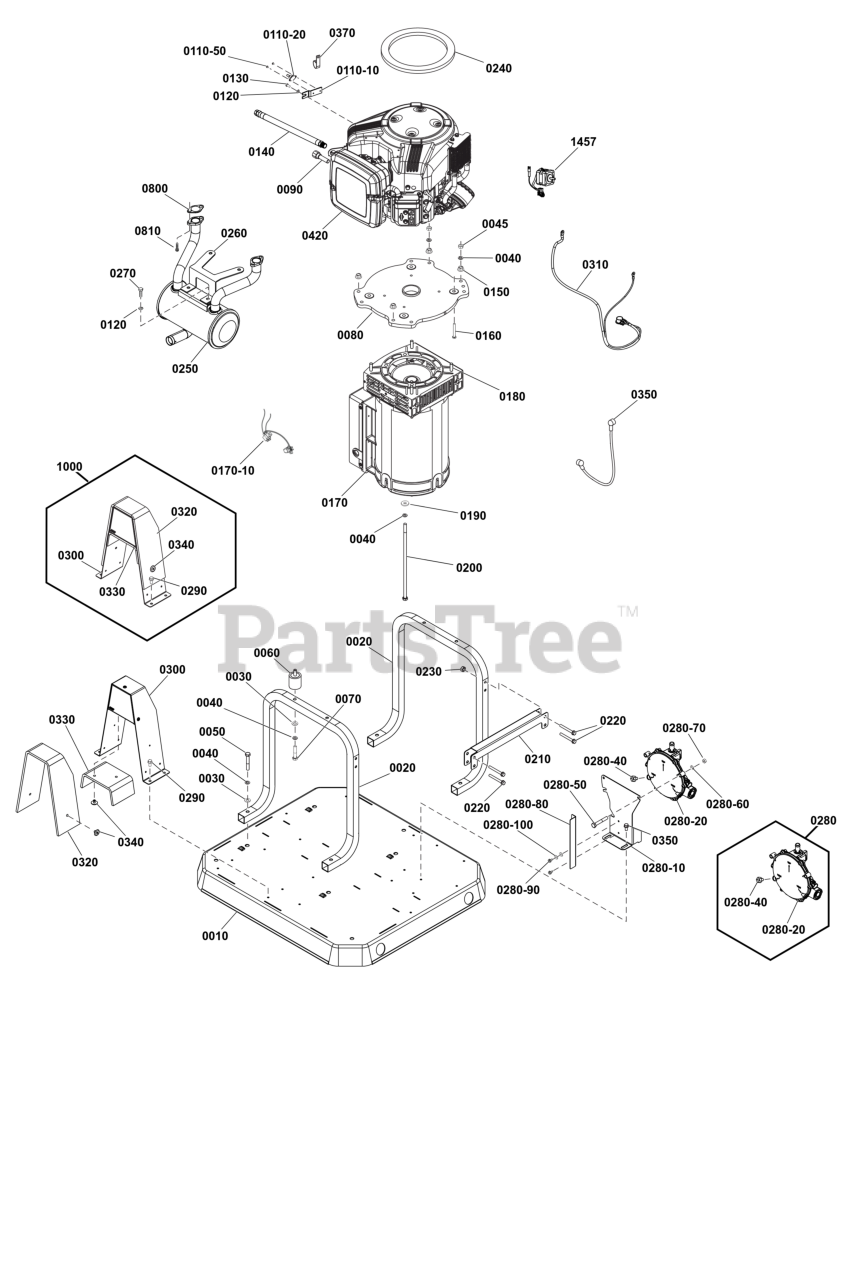

Power Group Parts Diagram

  • Title

0010

BASE

$

$

Not available

0020

Briggs & Stratton BF319470GS

CRADLE

$207.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 703350

WASHER

$4.49

$

In Stock, only 2 left!

0

0040

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

0045

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.99

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 5025011X16YP

BOLT

$3.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 189108GS

MOUNT, Vibration

$9.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 57821GS

CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

0080

Briggs & Stratton 319353GS

ADAPTER-ENGINE

$169.99

$

Usually ships in 2-12 days

0

0090

THERMOWELL, Oil Heater

$

$

Not available

0110-10

Briggs & Stratton 195124GS

PLATE, Temp Switch

$22.99

$

Usually ships in 2-12 days

0

0110-20

Briggs & Stratton 204426GS

SWITCH, Temperature

$40.99

$

In Stock, only 2 left!

0

0110-50

Briggs & Stratton 708730

SCREW

$4.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 43116GS

HHCS, M6 - 1.0 x 12

$3.49

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

0150

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 17

0

0160

Briggs & Stratton 704010

SCREW, HEX, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0170

Briggs & Stratton 772334

ALTERNATOR

$1867.99

$

Usually ships in 2-12 days

0

0170-10

Briggs & Stratton 84011102

BRUSH ASSEMBLY

$423.99

$

Usually ships in 0 days

0

0180

Briggs & Stratton 22125GS

SCREW

$

$

Not available

0190

Briggs & Stratton 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 706941

BOLT

$11.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 319471GS

BRACKET

$76.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 94220

SCREW
(Superseded to 691092)

$4.49

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 703061

NUT, HEX KEPS, 1/4-20

$3.99

$

In Stock, Qty 10

0

0240

Briggs & Stratton 316881GS

SEAL

$53.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 84010841

ASSEMBLY, Muffler

$147.99

$

Usually ships in 0 days

0

0260

Briggs & Stratton 704682

BRACKET, Muffler

$55.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 47411GS

SCREW

$

$

Not available

0280

Briggs & Stratton 84006385

FUEL REGULATOR ASSEMBLY

Note: (Includes Ref. Nos. 0280-20, 0280-40)

$358.99

$

Usually ships in 2-12 days

0

0280-10

Briggs & Stratton 706379

BRACKET

$20.99

$

Usually ships in 2-12 days

0

0280-20

FUEL REGULATOR ASSEMBLY

Note: (Includes Fuel Regulator and Solenoid)

$

$

Not available

0280-40

Briggs & Stratton 318002GS

FITTING

$8.49

$

Usually ships in 2-12 days

0

0280-50

Briggs & Stratton 38750GS

HHCS, M6 - 1.0 x 30

$2.99

$

Usually ships in 2-12 days

0

0280-60

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0280-70

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$3.49

$

Usually ships in 2-12 days

0

0280-80

BRACKET

$

$

Not available

0280-90

Briggs & Stratton 194561GS

HHS, Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0280-100

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 704130

SCREW, HEX, 1/4-20X.5

$3.99

$

In Stock, Qty 7

0

0300

ASSEMBLY, Bracket

$

$

Not available

0310

Briggs & Stratton 84008694

HARNESS, Battery

$33.99

$

Usually ships in 0 days

0

0320

DEFLECTOR, Panel, Outer

$

$

Not available

0330

DEFLECTOR, Panel, Inner

$

$

Not available

0340

RIVET, BLIND, 3/16 X 5/8

$

$

Not available

0350

Briggs & Stratton 316814GS

WIRE, Starter Solenoid

$88.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 192669GS

Clamp, Hose, "J"

$2.49

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 3895750117E1

**Replacement Engine

Note: (**See footnote)

$

$

Currently unavailable

0800

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

0810

Briggs & Stratton 805158

SCREW
(Superseded to 691902)

$3.99

$

In Stock, Qty 13

0

1000

Briggs & Stratton 84011108

BRACKET ASSEMBLY

Note: (Includes Ref. Nos. 0290, 0300, 0320, 0330, 0340)

$

$

Currently unavailable

0290

Briggs & Stratton 704130

SCREW, HEX, 1/4-20X.5

$3.99

$

In Stock, Qty 7

0

0300

ASSEMBLY, Bracket

$

$

Not available

0320

DEFLECTOR, Panel, Outer

$

$

Not available

0330

DEFLECTOR, Panel, Inner

$

$

Not available

0340

RIVET, BLIND, 3/16 X 5/8

$

$

Not available

1457

MOTOR, Stepper

Note: (Refer To Your Engine Model's Parts Manual)

$

$

Not available
