0433A101 (850-0282) - Grass Handler Walk-Behind Mower (1990) (J.C. Penney)

Walk-Behind Mower

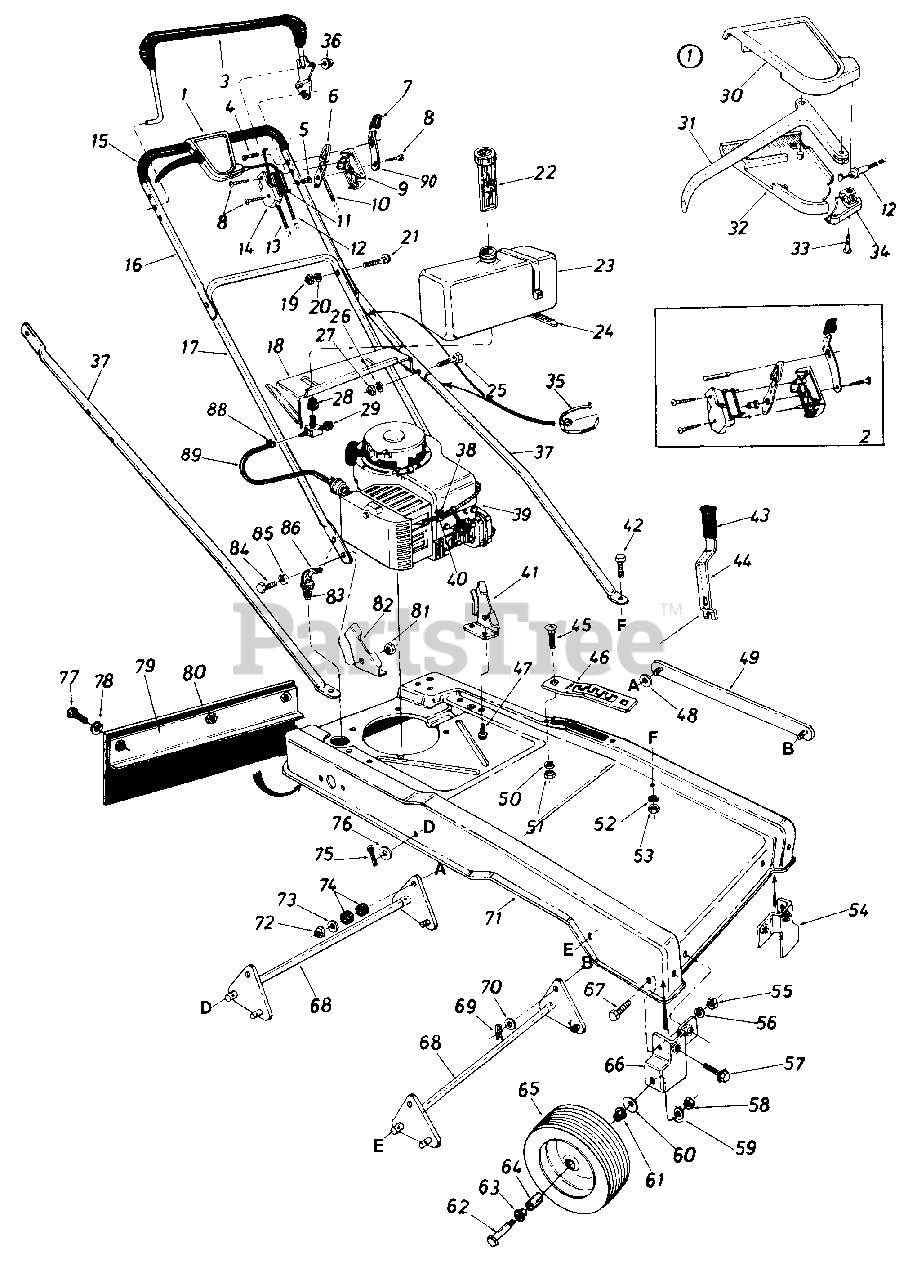

0433A101 (850-0282) - Grass Handler Walk-Behind Mower (1990) (J.C. Penney) > Parts Diagrams (4) > Parts

  • Title
753-0362

1

Clutch Control Housing Comp.

Part# 753-0362

OEM Warranty Repair Part for MTD

Not available

753-0431

2

Control Housing Comp.

Part# 753-0431

OEM Warranty Repair Part for MTD

Not available

731-0609

3

Control Handle Ass'y.

Part# 731-0609

OEM Warranty Repair Part for MTD

Not available

731-0607

4

Lock Pin

Part# 731-0607

OEM Warranty Repair Part for MTD

Not available

731-0524

5

Control Disc Pin

Part# 731-0524

OEM Warranty Repair Part for MTD

Not available

731-0972

6

Throttle Control Lever

Part# 731-0972 (Superseded to 931-0972)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.02

720-0190

7

Spring Lever Knob

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

710-0796

8

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

Part# 710-0796

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.81

731-0817

9

Control Panel Half

Part# 731-0817

OEM Warranty Repair Part for MTD

Not available

746-0631

10

Throttle Control Wire 43" Lg.

Part# 746-0631 (Superseded to 946-1115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.74

777-5772

11

Control Label-Throttle

Part# 777-5772

OEM Warranty Repair Part for MTD

Currently unavailable

746-0650

12

Self-Propelled Cable 50" Lg.

Part# 746-0650 (Superseded to 946-0650)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.10

746-0405

13

Drive Clutch Cable-46" Lg.

Part# 746-0405 (Superseded to 946-0405)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $50.50

731-0816

14

Clutch Panel Half

Part# 731-0816

OEM Warranty Repair Part for MTD

Not available

718-0145

15

Grip 22" Lg.

Part# 718-0145

OEM Warranty Repair Part for MTD

Currently unavailable

749-0439A

16

Upper Handle (Painted)

Part# 749-0439A (Superseded to 749-0439E-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $35.73

749-0437A

Upper Handle (Chrome)

Part# 749-0437A

OEM Warranty Repair Part for MTD

Currently unavailable

749-0504C

17

Lower Handle (Painted)

Part# 749-0504C (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

749-0505C

Lower Handle (Chrome)

Part# 749-0505C (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

14426

18

Gas Tank Mounting Brkt.

Part# 14426

OEM Warranty Repair Part for MTD

Not available

712-0267

19

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0119

20

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0262

21

Carriage Bolt 5/16-18 x 1.50" Lg.*

Part# 710-0262

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.91

723-0155

22

Gas Gauge 1-3/4-6 x 5.50" Lg.

Part# 723-0155

OEM Warranty Repair Part for MTD

Not available

751-0225

23

Gas Tank

Part# 751-0225

OEM Warranty Repair Part for MTD

Not available

726-0209

24

Cable Tie 30.6" Lg.

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.19

710-0158

25

Hex Bolt 5/16-24 x 1.25" Lg.

Part# 710-0158 (Superseded to 710-0672)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

736-0119

26

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0123

27

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

735-0149

28

Bushing-Gas Tank

Part# 735-0149 (Superseded to 935-0149)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.16

751-0171

29

Fuel Shut-Off Valve w/Screen

Part# 751-0171 (Superseded to 951-0171)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.82

731-0617A

30

Control Cover Half-Upper

Part# 731-0617A

OEM Warranty Repair Part for MTD

Not available

731-0620

31

Control Lever

Part# 731-0620 (Superseded to 731-0620A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.90

731-0618A

32

Control Cover Half-Lower

Part# 731-0618A (Superseded to 753-0833)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $37.59

710-0841

33

Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg.

Part# 710-0841

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.14

731-0619A

34

Cable Mounting Cap

Part# 731-0619A

OEM Warranty Repair Part for MTD

Not available

726-0240

35

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

726-0245

36

Push Cap

Part# 726-0245

OEM Warranty Repair Part for MTD

Not available

749-0697A

37

Strut .75" O.D. x 43.44" Lg.

Part# 749-0697A

OEM Warranty Repair Part for MTD

Currently unavailable

710-0436

38

Hex Sems Scr. #10-32 x .62" Lg.

Part# 710-0436 (Superseded to 710-0651)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

39

Engine-5 H.P.

Part#

Not available

751-0442

40

Casing Clamp

Part# 751-0442

OEM Warranty Repair Part for MTD

Not available

12577

41

Handle Mount Brkt.-L.H.

Part# 12577

OEM Warranty Repair Part for MTD

Currently unavailable

710-0118

42

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.99

720-0142

43

Grip-Black

Part# 720-0142

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

15342

44

Lift Handle

Part# 15342

OEM Warranty Repair Part for MTD

Not available

710-0260

45

Carriage Bolt 5/16-18 x .62" Lg.

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

16507

46

Lift Handle Support Brkt.

Part# 16507

OEM Warranty Repair Part for MTD

Not available

710-0603

47

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50

Part# 710-0603

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

736-0235

48

Fl-Wash. .406" I.D. x 1.25" O.D.

Part# 736-0235 (Superseded to 736-0247)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.00

15331

49

Connecting Link Ass'y.

Part# 15331

OEM Warranty Repair Part for MTD

Not available

736-0119

50

L-Wash. 5/16" I.D.'

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

51

Hex Nut 5/16-18 Thd.'

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0119

52

L-Wash. 5/16" I.D.'

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

53

Hex Nut 5/16-18 Thd.'

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

10293

54

Wheel Brkt. Ass'y.-L.H.

Part# 10293

OEM Warranty Repair Part for MTD

Currently unavailable

712-0267

55

Hex Nut 5/16-18 Thd.'

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0119

56

L-Wash. 5/16" I.D.'

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0198

57

Hex Sems Bolt 5/16-18 x .75" Lg.

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for MTD

Not available

712-0375

58

Hex Cent. L-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.19

736-0169

59

L-Wash. 3/8" I.D.'

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0105

60

Bell-Wash. .400' I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

61

UNKNOWN

Part#

Not available

62

Axle Bolt

Part#

Not available

710-1020

Axle Bolt

Part# 710-1020

OEM Warranty Repair Part for MTD

Not available

738-0102

Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

63

Front Wheel Bearing

Part#

Not available

734-0645

Waffle Tread

Part# 734-0645

OEM Warranty Repair Part for MTD

Not available

734-1259

"T" Tread

Part# 734-1259

OEM Warranty Repair Part for MTD

Not available

734-1513A

"S" Wave Tread

Part# 734-1513A (Superseded to 753-08093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $32.16

64

UNKNOWN

Part#

Not available

65

Wheel Ass'y. Comp. 8 x 1.75

Part#

Not available

734-0645

Waffle Tread

Part# 734-0645

OEM Warranty Repair Part for MTD

Not available

734-1259

"T" Tread

Part# 734-1259

OEM Warranty Repair Part for MTD

Not available

734-1513A

"S" Wave Tread

Part# 734-1513A (Superseded to 753-08093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $32.16

10294

66

Wheel Brkt. Ass'y.-R.H.

Part# 10294

OEM Warranty Repair Part for MTD

Currently unavailable

710-0198

67

Hex Sems Bolt 5/16-18 x .75" Lg.

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for MTD

Not available

16497

68

Lift Brkt. Shaft Ass'y.

Part# 16497

OEM Warranty Repair Part for MTD

Not available

714-0104

69

Intern. Cotter Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0300

70

Fl-Wash. .385" I.D. x .88"

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

16505

71

Hi-Wheel Frame

Part# 16505

OEM Warranty Repair Part for MTD

Currently unavailable

712-0116

72

Hex Ins. L-Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for MTD

Not available

736-0300

73

Fl-Wash. .385" I.D. x .88"

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

735-0126

74

Rubber Wash. .33" I.D. x .87" O.D.

Part# 735-0126 (Superseded to 735-0126A)

OEM Warranty Repair Part for MTD

Not available

714-0115

75

Cotter Pin 1/8" Dia. x 1 Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

736-0272

76

Fl-Wash. .51" I.D. x 1.0"

Part# 736-0272 (Superseded to 936-0272)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.50

710-0258

77

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

78

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

16563A

79

Retaining Strip Ass'y. 3" x 15" Lg.

Part# 16563A

OEM Warranty Repair Part for MTD

Not available

731-0811

80

Rear Flap 7.5 x 20" Lg.

Part# 731-0811

OEM Warranty Repair Part for MTD

Not available

712-0342

81

Hex Nut 3/8-16 Thd.'

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.27

12578

82

Handle Mount Brkt.-R.H.

Part# 12578

OEM Warranty Repair Part for MTD

Not available

83

Part of Engine

Part#

Not available

710-0216

84

Hex Bolt 3/8-16 x .75" Lg.

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

736-0169

85

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

737-0125

86

90 Deg. Elbow Male to Female 3/8

Part# 737-0125

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.27

726-0207

88

Hose Clamp-.406" Dia.

Part# 726-0207

OEM Warranty Repair Part for MTD

Not available

751-0173A

89

Fuel Line 15" Lg.

Part# 751-0173A

OEM Warranty Repair Part for MTD

Currently unavailable

732-0401

90

Lockout Lever

Part# 732-0401

OEM Warranty Repair Part for MTD

Not available
