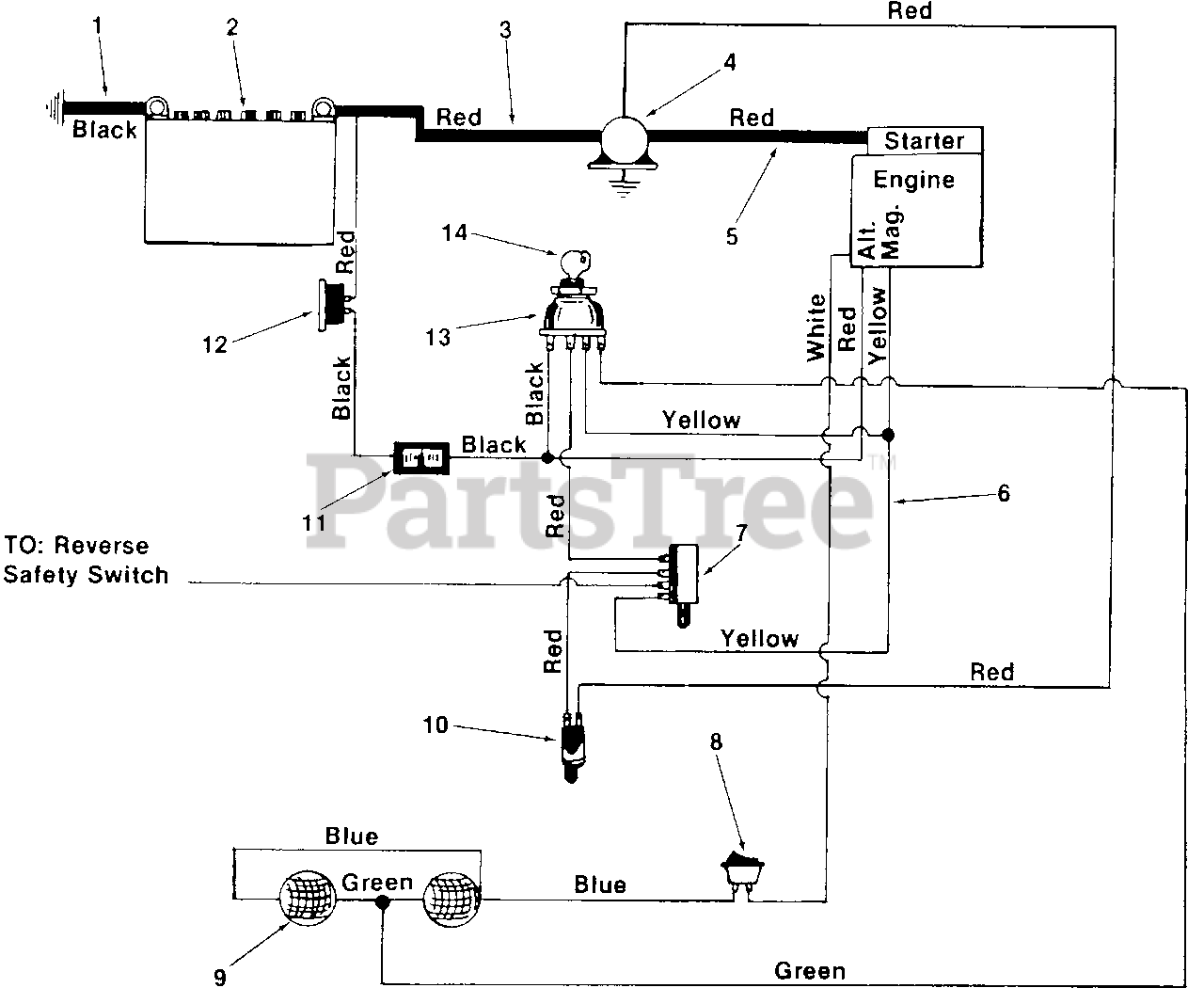

045-0809 - Coast to Coast Garden Tractor (1985) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0996

Electric Ground Wire

Note: (Black-Negative)

$

$

Not available

2

MTD 725-0453

12V-Battery

$

$

Not available

3

MTD 725-0563

Electric Wire

Note: (Red Positive)

$

$

Currently unavailable

4

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$37.99

$

In Stock, Qty 8

0

5

MTD 725-0561

Electric Wire
(Superseded to 629-0705)

$

$

Not available

6

MTD 725-1021

Wire Harness

$

$

Not available

7

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

Note: (P.T.O.)

$32.99

$

Usually ships in 3-6 days

0

8

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$18.99

$

In Stock, only 2 left!

0

9

MTD 725-0222

Head Lights
(Superseded to 925-0222)

$62.99

$

In Stock, only 2 left!

0

10

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

11

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

12

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

13

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 11

0

14

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.99

$

In Stock, only 2 left!

0
